AUDIO AND VISUAL SYSTEM(for Radio Receiver Type)
U
AUDIO / VIDEO AUDIO AND VISUAL SYSTEM(for Radio Receiver Type) TERMINALS OF ECU

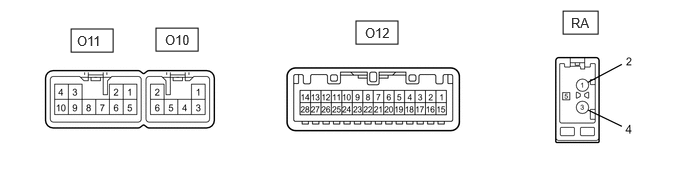

RADIO RECEIVER ASSEMBLY
0.74,0.302 1.177,0.542
0.438,0.24
1.625,0.292 2.063,0.531
0.438,0.24
5.865,0.115 6.229,0.354
0.365,0.24
3.708,0.219 4.146,0.458
0.438,0.24
0.802,0.344 1.177,0.5
0.375,0.156
10
false
O11
1.719,0.333 2.135,0.531
0.417,0.198
10
false
O10
5.948,0.156 6.354,0.313
0.406,0.156
10
false
RA
3.802,0.26 4.156,0.417
0.354,0.156
10
false
O12
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
|
*1: w/ Telematics Transceiver *2: Voice switch availability depends on the vehicle. Even if the voice switch is available the function does not operate. #: There is no wire color information |
||||
| O12-3 (ADIM) - O11-7 (GND1) | P - W-B | Dimming signal | Ignition switch ON, automatic light control sensor not covered by hand, and light control switch in AUTO position | 11 to 14 V |
| Ignition switch ON, automatic light control sensor covered by hand, and light control switch in AUTO position | Below 1 V | |||
| O12-4 (MACC) - O11-7 (GND1) | G - W-B | Microphone amplifier power supply | Ignition switch off | Below 1 V |
| Ignition switch ACC | 4 to 6 V | |||
| O12-5 (MIN+) - O12-19 (MIN-) | L - P | Microphone voice signal | "Bluetooth" hands-free function on | A waveform synchronized with sound is output |
| O12-6 (SNS2) - O11-7 (GND1) | W - W-B | Microphone connection detection signal | Always | Below 1 V |
| O11-8 (TMUT) - O11-7 (GND1)*1 | L - W-B | Mute signal | Audio system playing | Above 2.0 V |
| Emergency call mode | Below 1 V | |||
| O12-10 (CXPI) - Body ground | GR - Body ground | MOST communication signal | Ignition switch ON | Pulse generation |
| O12-17 (SPD) - O11-7 (GND1) | V - W-B | Vehicle speed signal | Ignition switch ON
Wheel being rotated |
Pulse generation |
| O12-18 (SGND) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O12-19 (MIN-) - Body ground | P - Body ground | Microphone voice signal | Always | A waveform synchronized with sound is output |
| O12-21 (SW1) - O12-23 (SWG) | B - W-B | Steering pad switch signal | No switch pushed | 2.93 to 3.30 V |
| Seek+ switch pushed | 0.00 to 0.35 V | |||
| Seek- switch pushed | 0.60 to 1.03 V | |||
| Volume+ switch pushed | 1.30 to 1.76 V | |||
| Volume- switch pushed | 2.10 to 2.55 V | |||
| O12-22 (SW2) - O12-23 (SWG) | R - W-B | Steering pad switch signal | No switch pushed | 2.93 to 3.30 V |
| MODE switch pushed | 0.00 to 0.35 V | |||
| TEL switch pushed | 1.30 to 1.76 V | |||
| Voice switch pushed*2 | 2.10 to 2.55 V*2 | |||
| O12-23 (SWG) - Body ground | W-B - Body ground | Shielded ground | Always | Below 1 V |
| O11-1 (FR+) - O11-7 (GND1) | LA-R - W-B | Sound signal (Front Right) | Audio system playing | A waveform synchronized with sound is output |
| O11-2 (FL+) - O11-7 (GND1) | LA-P - W-B | Sound signal (Front Left) | Audio system playing | A waveform synchronized with sound is output |
| O11-3 (ACC1) - O11-7 (GND1) | GR - W-B | Power source (ACC) | Ignition switch off | Below 1 V |
| Ignition switch ACC | 11 to 14 V | |||
| O11-4 (+B1) - O11-7 (GND1) | L - W-B | Power source (+B) | Always | 11 to 14 V |
| O11-5 (FR-) - O11-7 (GND1) | LA-W - W-B | Sound signal (Front Right) | Audio system playing | A waveform synchronized with sound is output |
| O11-6 (FL-) - O11-7 (GND1) | LA-B - W-B | Sound signal (Front Left) | Audio system playing | A waveform synchronized with sound is output |
| O11-7 (GND1) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| O11-10 (ILL+) - O11-7 (GND1) | G - W-B | Illumination signal | Ignition switch ON, light control switch off | Below 1 V |
| Ignition switch ON, light control switch TAIL | 11 to 14 V | |||
| O10-1 (RR+) - O11-7 (GND1) | G - W-B | Sound signal (Rear Right) | Audio system playing | A waveform synchronized with sound is output |
| O10-2 (RL+) - O11-7 (GND1) | R - W-B | Sound signal (Rear Left) | Audio system playing | A waveform synchronized with sound is output |
| O10-3 (RR-) - O11-7 (GND1) | P - W-B | Sound signal (Rear Right) | Audio system playing | A waveform synchronized with sound is output |
| O10-5 (ILL-) - O11-7 (GND1) | W-B - W-B | Illumination signal ground | Always | Below 1 Ω |
| O10-6 (RL-) - O11-7 (GND1) | W - W-B | Sound signal (Rear Left) | Audio system playing | A waveform synchronized with sound is output |
| RA-5 (ANT+) - O11-7 (GND1) | # - W-B | Power source of antenna | Ignition switch ACC
Radio switch on and AM or FM selected |
11 to 14 V |
