WIPER / WASHER  WASHER MOTOR  INSTALLATION

2.219,0.313 2.417,0.531 0.198,0.219 10 true (1) 2.26,3.115 2.479,3.313 0.219,0.198 10 true (2) 2.927,2.75 3.146,2.948 0.219,0.198 10 true (3)

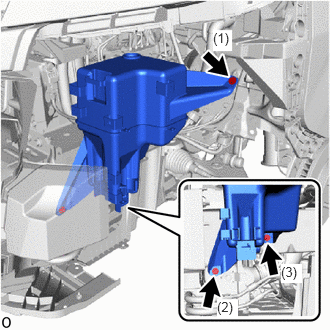

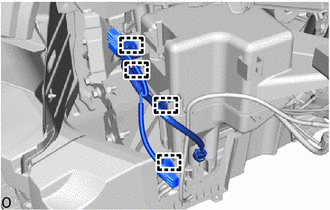

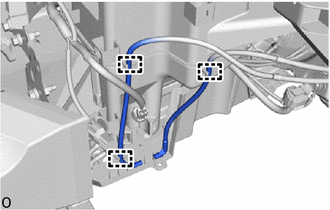

Install the windshield washer jar sub-assembly with the 3 bolts in the order shown in the illustration.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

w/o Headlight Cleaner System:

w/ Headlight Cleaner System:

w/o Rear Wiper:

w/ Rear Wiper:

2.688,1.531 2.885,1.208 2.885,1.208 2.573,1.208 true 2.938,1.125 3.104,1.281 0.167,0.156 10 true *a

*a	Matchmarks
	Place Hand Here
	Install in this Direction

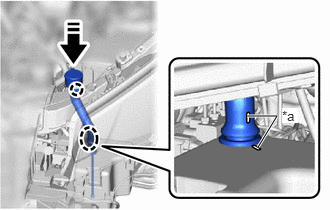

Hold the position shown in the illustration and insert the washer inlet sub-assembly into the windshield washer jar in the direction indicated by the arrow.

HINT:

Align the matchmarks on the washer inlet with the matchmarks on the windshield washer jar sub-assembly and install it.

0,0 0,0 false

Install in this Direction

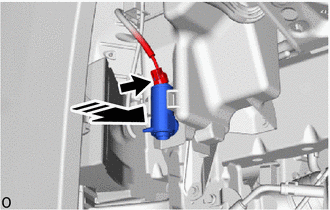

Install the windshield washer motor and pump assembly as shown in the illustration.

0,0 0,0 false

	Washer hose
	Connector

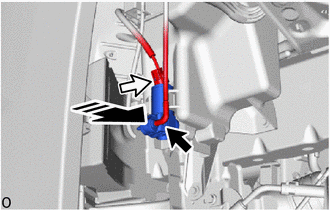

	Install in this Direction

Install the windshield washer motor and pump assembly as shown in the illustration.

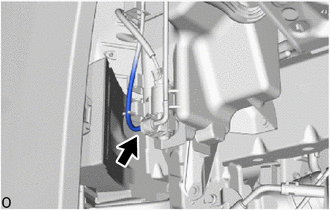

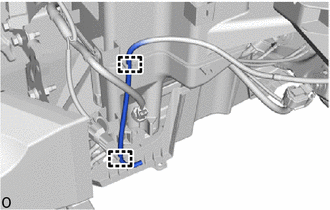

Connect the washer hose to the windshield washer motor and pump assembly.

HINT:

Insert washer hose to joint all the way.

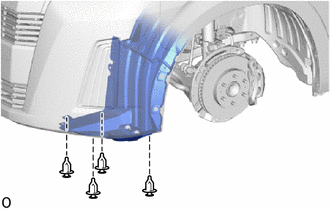

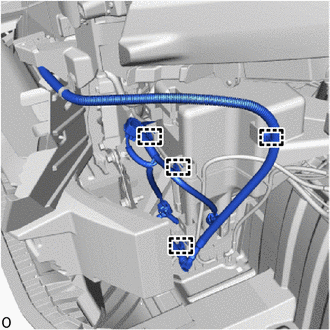

Install the front fender liner LH with the 4 clips.

0,0 0,0 false

Protective Tape

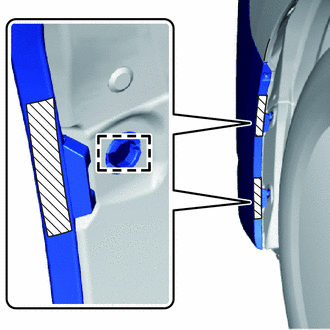

Attach the guide and install the front fender liner LH.
