RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0385307 WASHER MOTOR A

WIPER / WASHER  WASHER MOTOR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during windshield washer jar assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Front bumper assembly (Including removal and installation) Front television camera view adjustment Panoramic view monitor system (Click here)

PROCEDURE

Hide 53876A 2.SEPARATE FRONT FENDER LINER LH

a.
B524443C02
0,0 0,0 false
V100155

Protective Tape

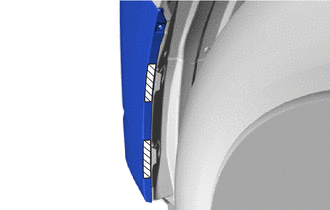

Put protective tape as shown in the illustration.


b.
B524442C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction
V100155

Protective Tape


Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove part of the front bumper assembly as shown in the illustration.


c.
B540154

Using a clip remover, remove the 4 clips and separate the front fender liner LH.


d.
B540155C01
0,0 0,0 false
V113147

Remove in this Direction

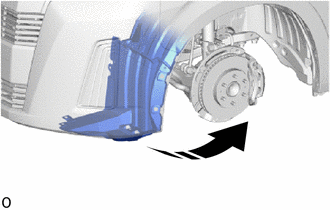

Fold back the front fender liner LH as shown in the illustration to ensure sufficient work space.


Hide 5.DRAIN WASHER FLUID

a.
B540156

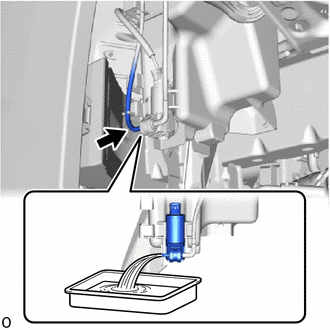

Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

HINT:

Use a container to collect the washer fluid.



Hide 85310 6.REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (w/o Rear Wiper)

a.
B540157C01
0,0 0,0 false
V113147

Remove in this Direction

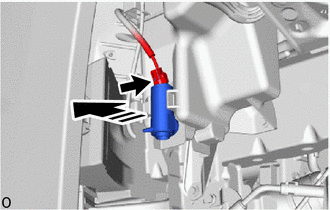

Disconnect the connector.


b.

Remove the windshield washer motor and pump assembly as shown in the illustration.


Hide 85310 7.REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (w/ Rear Wiper)

a.
B540158C01
0,0 0,0 false
V100135

Washer hose
V100136

Connector
V113147

Remove in this Direction

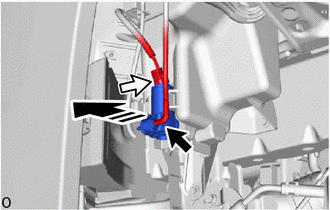

Disconnect the washer hose from the windshield washer motor and pump assembly.


b.

Disconnect the connector.


c.

Remove the windshield washer motor and pump assembly as shown in the illustration.


Hide 52119A 8.REMOVE FRONT BUMPER COVER

HINT:

Perform this procedure only when replacement of the windshield washer jar sub-assembly is necessary.


a.

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>REMOVAL


b.

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (except Wagon)>REMOVAL


Hide 85280A 9.REMOVE HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY (w/ Headlight Cleaner System)

HINT:

Perform this procedure only when replacement of the windshield washer jar sub-assembly is necessary.


Click hereVehicle Exterior>WIPER / WASHER>HEADLIGHT CLEANER MOTOR>REMOVAL

Hide 85301 10.REMOVE WASHER INLET SUB-ASSEMBLY

HINT:

Perform this procedure only when replacement of the washer inlet sub-assembly is necessary.


a.
B540159C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

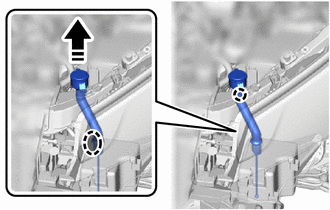

Detach the claw.


b.

Place your hands at the position shown in the illustration and remove the washer inlet sub-assembly in the direction indicated by the arrow.


Hide 85331 11.REMOVE WINDSHIELD WASHER JAR SUB-ASSEMBLY

HINT:

Perform this procedure only when replacement of the windshield washer jar sub-assembly is necessary.


a.
B540160

w/o Rear Wiper:

i.

Detach the clamp and disconnect the washer hose.



b.
B540161

w/ Rear Wiper:

i.

Detach the clamp and disconnect the washer hose.



c.
B540162

w/o Headlight Cleaner System:

i.

Detach the clamp.



d.
B545071

w/ Headlight Cleaner System:

i.

Detach the clamp.



e.
B540163

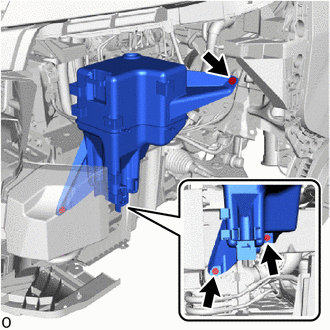

Remove the 3 bolts and windshield washer jar assembly.
