TELEMATICS TELEMATICS TRANSCEIVER(for LHD) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: A bolt without a torque specification is shown in the standard bolt chart.; Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

PROCEDURE

Hide Display 86741A 1.INSTALL TELEMATICS TRANSCEIVER

Hide Display 86719B 2.INSTALL NO. 2 TELEPHONE BRACKET

Install the No. 2 telephone bracket with the 2 screws.

Hide Display 86719A 3.INSTALL NO. 1 TELEPHONE BRACKET

Install the No. 1 telephone bracket with the 2 screws.

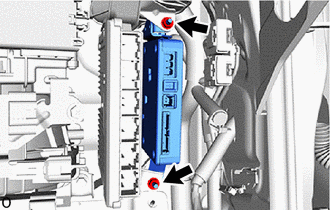

Hide Display 4.INSTALL TELEMATICS TRANSCEIVER WITH BRACKET

Install the telematics transceiver with bracket with the 2 nuts.

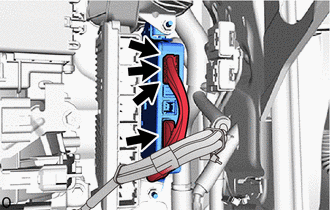

Connect the 4 connectors.

Hide Display 55320 5.INSTALL LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0010,

Hide Display 55434B 6.INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0055,

Hide Display 58840Q 7.INSTALL SHIFTING HOLE COVER ASSEMBLY (except Wagon)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0021,

Hide Display 33504F 8.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (except Wagon)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0023,

Hide Display 55646 9.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0025,

Hide Display 58534E 10.INSTALL CENTER FLOOR CARPET COVER LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0028,

Hide Display 58533C 11.INSTALL CENTER FLOOR CARPET COVER RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0002,

Hide Display 12.INSTALL FRONT CONSOLE BOX

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION201906,999999,_58,_078375,_0380059,RM100000001IHPH,

Hide Display 55438A 13.INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0004,

Hide Display 55312 14.INSTALL LOWER INSTRUMENT PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0005,

Hide Display 55642 15.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0007,

Hide Display 55317A 16.INSTALL INSTRUMENT SIDE PANEL RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0039,

Hide Display 55012A 17.INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0041,

Hide Display 55632B 18.INSTALL NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0078,

Hide Display 62111C 19.INSTALL COWL SIDE TRIM BOARD RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0044,

Hide Display 67913B 20.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67911B 21.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 55313 22.INSTALL LOWER INSTRUMENT PANEL LH (w/o Knee Airbag)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0059,

Hide Display 55445B 23.INSTALL INSTRUMENT PANEL FINISH PLATE (w/o Knee Airbag)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0030,

Hide Display 73900 24.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION201906,999999,_58,_079257,_0384937,RM100000001INDP_01_0188,

Hide Display 55433B 25.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0033,

Hide Display 55044C 26.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0034,

Hide Display 55432D 27.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0035,

Hide Display 77306 28.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0036,

Hide Display 53601 29.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0037,

Hide Display 55641 30.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0038,

Hide Display 55318C 31.INSTALL INSTRUMENT SIDE PANEL LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0040,

Hide Display 55011A 32.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0042,

Hide Display 55631A 33.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0077,

Hide Display 62112 34.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0045,

Hide Display 67914B 35.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 36.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 37.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Knee Airbag)

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 38. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Knee Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 39. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 40.CHECK SRS WARNING LIGHT (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 41.PERFORM REGISTRATION

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>REGISTRATION202107,999999,_56,_078380,_0385046,RM100000001X35Z,
