AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  AUTOMATIC TRANSMISSION SYSTEM(for 7GR-FKS)  P061512  Starter Relay Circuit Short to Battery


DESCRIPTION

While the engine is being cranked, positive battery voltage is applied to terminal STA of the ECM. If the ECM detects the starter control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL and stores the DTC.

This monitor runs when the vehicle is driven at 20 km/h (12.43 mph) or more for 20 seconds or more.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P061512 Starter Relay Circuit Short to Battery All of the following conditions are met, and a (+B) battery voltage of 10.5 V or higher is applied to the ECM for 20 seconds (1 trip detection logic):
·

The vehicle speed is 20 km/h (12.43 mph) or more.

·

The engine speed is 1000 rpm or higher.

·

The STA signal is on.


·

STARTER relay

·

Park/neutral position switch assembly

·

STARTER relay circuit

·

ECM


Comes on DTC stored SAE Code:
P0617

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for at least 30 seconds.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Start the engine.

7.

Drive the vehicle for 20 seconds or more with the following conditions:

-

Engine speed is 1000 rpm or more.

-

Vehicle speed is 20 km/h (12.43 mph) or more.


8.

Stop the vehicle.

9.

Enter the following menus: Powertrain / Transmission / Utility / All Readiness.

10.

Input the DTC: P061512.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.




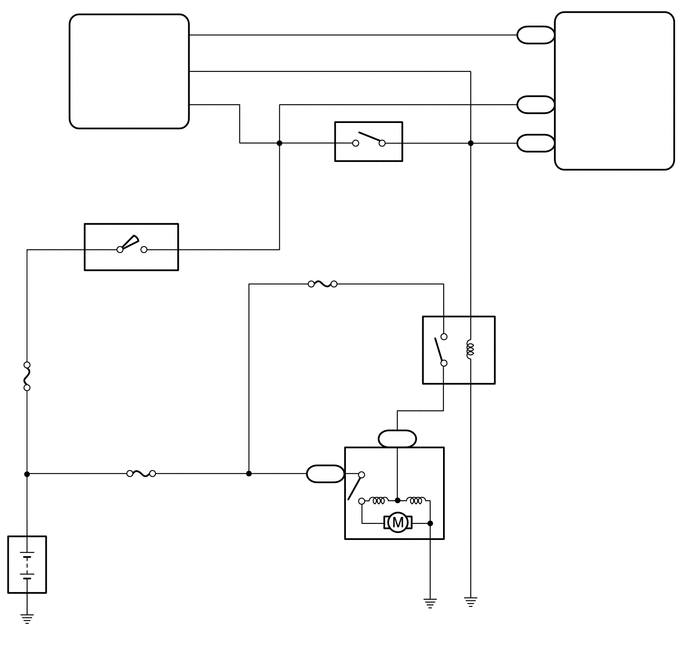

WIRING DIAGRAM

C419852
6.24,1.823 6.698,2.021 0.458,0.198 10 false ECM 3.26,5.656 4.563,5.885 1.302,0.229 10 false Starter Assembly 3.302,4.844 3.76,5.042 0.458,0.198 10 false F2 4.219,4.677 5.521,4.906 1.302,0.229 10 false ST 5.229,3.542 6.531,3.771 1.302,0.229 10 false STARTER 3.073,3.073 4.375,3.302 1.302,0.229 10 false ST NO. 2 5.854,1 6.385,1.271 0.531,0.271 10 false NSW 5.854,1.406 6.219,1.708 0.365,0.302 10 false STA 3.333,1.313 4.635,1.542 1.302,0.229 10 false 4 4.25,1.313 5.552,1.542 1.302,0.229 10 false 5 4.063,4.49 5.365,4.719 1.302,0.229 10 false F5 3.344,4.604 4.646,4.833 1.302,0.229 10 false 1 4.427,4.479 5.729,4.708 1.302,0.229 10 false 1 0.531,5.76 1.833,5.99 1.302,0.229 10 false Battery 5,3.115 6.302,3.344 1.302,0.229 10 false 2 4.438,4.042 5.74,4.271 1.302,0.229 10 false 3 5,4.042 6.302,4.271 1.302,0.229 10 false 1 4.458,3.115 5.76,3.344 1.302,0.229 10 false 5 3.542,1.313 4.844,1.542 1.302,0.229 10 false B 4.063,1.313 5.365,1.542 1.302,0.229 10 false L 3.198,1.854 4.542,2.26 1.344,0.406 10 false Park/Neutral Position Switch Assembly 3.208,1.688 3.667,1.885 0.458,0.198 10 false E92 3.667,4.729 3.823,4.927 0.156,0.198 10 false B 5.5,1.229 5.813,1.427 0.313,0.198 10 false 12 5.51,0.792 5.823,0.99 0.313,0.198 10 false 13 0.813,3.031 2.042,3.615 1.229,0.583 10 false Ignition or Starter Switch Assembly*2 0.823,2.854 1.281,3.052 0.458,0.198 10 false N28 1.552,2.396 2.01,2.594 0.458,0.198 10 false ST2 0.938,2.396 1.396,2.594 0.458,0.198 10 false AM2 1.896,2.396 2.052,2.594 0.156,0.198 10 false 4 0.75,2.396 0.906,2.594 0.156,0.198 10 false 1 0.417,3.823 0.875,4.021 0.458,0.198 10 false AM2 0.635,5.01 2.438,5.448 1.802,0.438 10 false Fusible Link Block Assembly (Main Battery) 0.448,1.531 2.292,2.281 1.844,0.75 10 false Certification ECU (Smart Key ECU Assembly)*1 0.458,1.365 1.073,1.563 0.615,0.198 10 false N154 5.521,0.083 5.833,0.281 0.313,0.198 10 false 15 5.5,1.406 5.958,1.604 0.458,0.198 10 false N1 5.51,1 5.969,1.198 0.458,0.198 10 false N1 5.51,0.271 5.823,0.469 0.313,0.198 10 false A1 2.042,0.156 2.354,0.354 0.313,0.198 10 false 16 2.063,0.542 2.375,0.74 0.313,0.198 10 false 20 2.073,0.885 2.229,1.083 0.156,0.198 10 false 9 1.698,0.281 2.01,0.479 0.313,0.198 10 false NE 1.625,0.656 2.083,0.854 0.458,0.198 10 false STA 1.542,1.01 2.156,1.208 0.615,0.198 10 false STAR 5.875,0.271 6.333,0.469 0.458,0.198 10 false NEO*1 1.167,6.083 5.604,6.281 4.438,0.198 10 false *1: w/ Entry and Start System 1.167,6.427 5.75,6.625 4.583,0.198 10 false *2: w/o Entry and Start System

CAUTION / NOTICE / HINT

NOTICE:

Perform registration and/or initialization when parts related to the automatic transmission are replaced.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>PRECAUTION


PROCEDURE

1.READ VALUE USING GTS (STARTER SW)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Data List / Starter SW.

Powertrain > Transmission > Data List
Tester Display
Starter SW
50003 373 11

e.

Read the Data List according to the display on the GTS.

Standard:
Condition Starter SW
Ignition switch ON OFF



f.

According to the display on the GTS, read the Data List while the vehicle is being driven with an engine speed of 1000 rpm or higher at a vehicle speed of 20 km/h (12.43 mph) or more.

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


Standard:
Condition Starter SW
Driving at 20 km/h (12.43 mph) or more (engine speed 1000 rpm or higher) OFF



HINT:

If the result of either of the above is not as specified, proceed to the next step with the ignition switch ON, GTS connected and Data List item "Starter SW" selected.


Result:
Proceed to
OK
NG


HINT:

If the starter assembly operates continuously when the ignition switch is ON, proceed to the next step without reading the Data List item "Starter SW".



OK

CHECK FOR INTERMITTENT PROBLEMS

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT STARTER RELAY (CHECK FOR SHORT CIRCUIT)
2.INSPECT STARTER RELAY (CHECK FOR SHORT CIRCUIT)
a.

Enter the following menus: Powertrain / Transmission / Data List / Starter SW.

Powertrain > Transmission > Data List
Tester Display
Starter SW
50003 373 11

b.

Remove the STARTER relay from the No. 1 engine room relay block and junction block assembly.


c.

Read the Data List according to the display on the GTS.

Result:
Result Proceed to
The Data List item "Starter SW" does not change from ON A
The Data List item "Starter SW" changes from ON to OFF B


HINT:
·

When the result of the above inspection is "The Data List item "Starter SW" does not change from ON", the STARTER relay is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF STARTER RELAY)

B

REPLACE STARTER RELAY

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF STARTER RELAY)

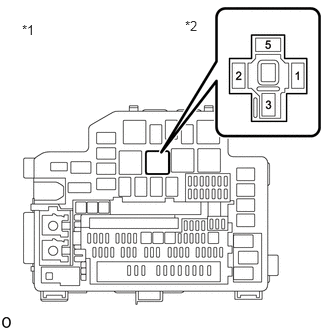

A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


HINT:

The purpose of this step is to check for STARTER relay terminal voltage under abnormal conditions.


a.

Remove the STARTER relay from the No. 1 engine room relay block and junction block assembly.


b.

Turn the ignition switch to ON.


c.

Measure the voltage between STARTER relay terminal 2 and body ground.

HINT:
·

Make a note of the measured voltage as it will be necessary for the inspecting the change in voltage in the next step. As the next step should be conducted under the same conditions, keep the ignition switch ON and do not install the STARTER relay.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.

·

If any voltage was measured with the ignition switch ON, one of the following malfunctions is suspected:

-

Short to +B in the circuit of a connected ECU or the switch.

-

Short to +B in the wire harness.





Result:
Proceed to
NEXT



NEXT

4.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (CHECK FOR SHORT CIRCUIT)
4.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (CHECK FOR SHORT CIRCUIT)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


a.

Disconnect the park/neutral position switch assembly connector.


b.

Measure the voltage between STARTER relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. A
The voltage between STARTER relay terminal 2 and body ground changes when the connector is disconnected. B


HINT:
·

If the voltage is the same before and after disconnecting the connector, the park/neutral position switch assembly is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

5.INSPECT ECM (CHECK FOR SHORT CIRCUIT)

B

REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>PARK / NEUTRAL POSITION SWITCH>REMOVAL


5.INSPECT ECM (CHECK FOR SHORT CIRCUIT)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


a.

Disconnect the ECM connector.


b.

Measure the voltage between STARTER relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. (w/ Entry and Start System) A
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. (w/o Entry and Start System) B
The voltage between STARTER relay terminal 2 and body ground changes when the connector is disconnected. C


HINT:
·

If the voltage is the same before and after disconnecting the connector, the ECM is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

6.CHECK HARNESS AND CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY - SMART KEY ECU ASSEMBLY - STARTER RELAY)

B

REPAIR OR REPLACE HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM - STARTER RELAY)

C

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


6.CHECK HARNESS AND CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY - SMART KEY ECU ASSEMBLY - STARTER RELAY)
a.

Disconnect the ECM connector.


b.

Disconnect the park/neutral position switch assembly connector.


c.

Disconnect the certification ECU (smart key ECU assembly) connector.


d.

Remove the STARTER relay from the No. 1 engine room relay block and junction block assembly.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N1-12 (STA), E92-5 (L), N154-20 (STA) or 2 (STARTER relay) - Other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

CHECK ENTRY AND START SYSTEM (CHECK FOR STA TERMINAL VOLTAGE OF SMART KEY ECU ASSEMBLY)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>TERMINALS OF ECU


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
