RM35X0E _51 Engine / Hybrid System _078603 7GR-FKS ENGINE MECHANICAL _0381344 ENGINE UNIT A

7GR-FKS ENGINE MECHANICAL  ENGINE UNIT  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the engine unit removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)
Replacement of ECM Perform Vehicle Identification Number (VIN) or frame number registration DTC P063051 is stored (Click here)
ECU communication ID registration Engine start function See Service Bulletin for the registration method.
for RC60J:

Performing iMT installation information reset


·

iMT system

·

DTCs are output


(Click here)
·

Throttle body with motor assembly

·

Cleaning the deposits from the throttle body with motor assembly

·

Engine assembly

·

Cylinder head sub-assembly

·

Camshaft (for intake or exhaust camshaft)

·

Camshaft timing gear assembly

·

Camshaft timing exhaust gear assembly

·

Piston or piston ring

·

Fuel injector assembly (for port injection)

·

Fuel injector assembly (for direct injection)

·

Fuel pump assembly (for high pressure side)

·

Engine coolant temperature sensor

·

Spark plug

·

Ignition coil assembly

·

Air leaks from intake system

·

Gas leaks from exhaust system


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)
for AC60E:

Replacement of automatic transmission assembly


Reset memory
·

Large shift shock

·

Engine overruns


(Click here)
for AC60E:

Replacement of automatic transmission fluid


ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly
Front wheel alignment adjustment
·

Perform reset memory

·

Perform acceleration sensor zero point calibration and store system information memorization.


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
Suspension, tires, etc. Television camera assembly optical axis (Back camera position setting) Parking assist monitor system (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative when not Performed Necessary Procedures Link
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative when not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



CAUTION:
·
A346363C01
2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a
*a An Object Exceeding Weight Limit of Engine Lifter


The engine assembly with transmission is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly may fall off the engine lifter.

·
A344783

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.



PROCEDURE

Hide 17360G 2.REMOVE AIR TUBE ASSEMBLY (w/ Secondary Air Injection System)

a.
A443971

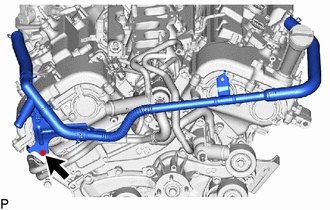

Remove the bolt and air tube assembly.


Hide 12261 3.REMOVE PCV HOSE

a.
A443653

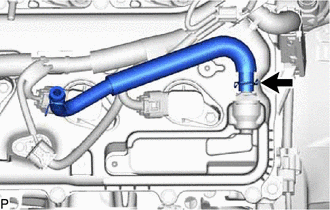

Slide the clip and remove the PCV hose from the PCV valve.


Hide 12262 4.REMOVE NO. 2 PCV HOSE

a.
A443654

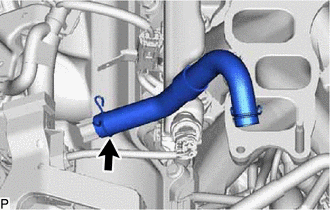

Slide the clip and remove the No. 2 PCV hose from the cylinder head cover sub-assembly.


Hide 23901 5.REMOVE FUEL TUBE SUB-ASSEMBLY AND NO. 2 FUEL TUBE SUB-ASSEMBLY

a.
A443656

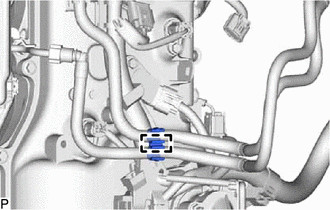

Detach the 2 clamps and remove the fuel tube clamp.


b.
A443655
1.76,2.042 1.906,2.042 1.906,2.042 2.031,1.875 true 1.948,0.656 2.125,0.563 2.125,0.563 2.292,0.563 true 1.51,1.948 1.74,2.177 0.229,0.229 10 true *1 2.323,0.458 2.542,0.677 0.219,0.219 10 true *2
*1 Fuel Tube Sub-assembly
*2 No. 2 Fuel Tube Sub-assembly

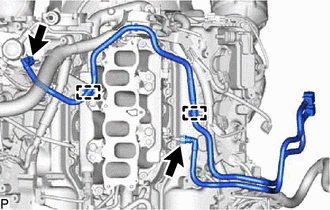

Disconnect the fuel tube sub-assembly.

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL SYSTEM>PRECAUTION


c.

Detach the 2 clamps and disconnect the No. 2 fuel tube sub-assembly.



Hide 6.REMOVE HEATER WATER HOSE ASSEMBLY

a.
A443935
0.031,0.021 0.292,0.25 0.26,0.229 10 true *A 0.031,2.385 0.271,2.583 0.24,0.198 10 true *B
*A w/o ATF Warmer
*B w/ ATF Warmer


w/o ATF Warmer:

i.

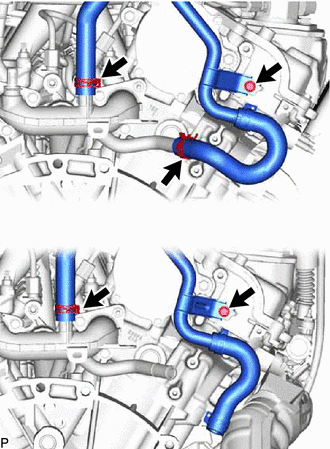

Slide the hose clamp and disconnect the heater water hose assembly from the rear water by-pass joint.


ii.

Slide the hose clamp and disconnect the heater water hose assembly from the No. 1 water outlet pipe.


iii.

Remove the bolt and remove the heater water hose assembly.



b.

w/ ATF Warmer:

i.

Slide the hose clamp and disconnect the heater water hose assembly from the rear water by-pass joint.


ii.

Remove the bolt and remove the heater water hose assembly.



Hide 88431 8.REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET

a.

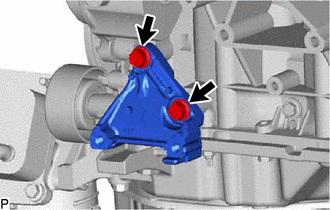

A443925

Remove the 2 bolts and No. 1 compressor mounting bracket.


Hide 12315 9.REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH

a.
A443923

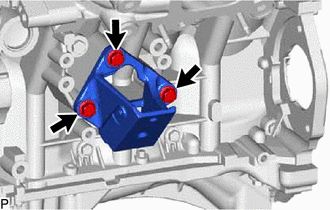

Remove the 3 bolts and front No. 1 engine mounting bracket LH.


Hide 12311 10.REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH

a.
A443924

Remove the 4 bolts and front No. 1 engine mounting bracket RH.


Hide 16603 11.REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY

a.
A443926

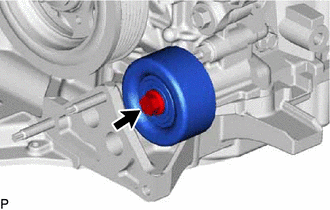

Remove the bolt and No. 1 idler pulley sub-assembly.


Hide 16604 12.REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

a.
A443927
0.021,0.021 0.25,0.25 0.229,0.229 10 true *A 1.646,0.031 1.854,0.24 0.208,0.208 10 false *B
*A LH Side
*B RH Side

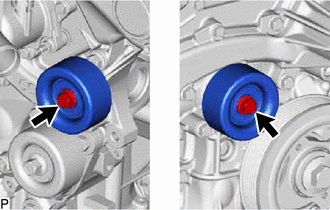

Remove the 2 bolts and 2 No. 2 idler pulley sub-assemblies.


Hide 16620 13.REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

a.
A443928

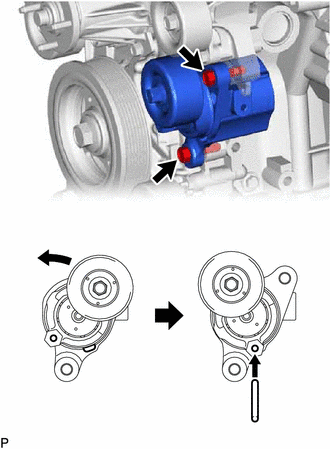

While turning the V-ribbed belt tensioner counterclockwise, align the service hole for the V-ribbed belt tensioner and the V-ribbed belt tensioner fixing position, and then insert a bar of 6 mm (0.236 in.) into the service hole to fix the V-ribbed belt tensioner in place.

HINT:

The pulley bolt for the V-ribbed belt tensioner has a left-hand thread.



b.

Remove the 2 bolts and V-ribbed belt tensioner assembly.


Hide 16281 14.REMOVE NO. 4 WATER BY-PASS HOSE

a.
A443933

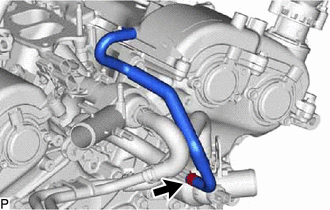

Slide the hose clamp and remove the No. 4 water by-pass hose.


Hide 16282 15.REMOVE NO. 5 WATER BY-PASS HOSE

a.
A443930

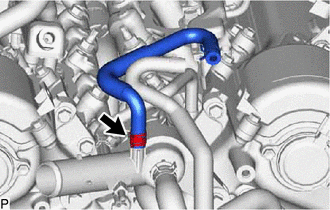

Slide the hose clamp and remove the No. 5 water by-pass hose.


Hide 16261 16.REMOVE NO. 1 WATER BY-PASS HOSE

a.
A443929

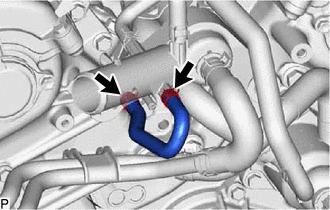

Slide the 2 hose clamps and remove the No. 1 water by-pass hose.


Hide 16264 17.REMOVE NO. 2 WATER BY-PASS HOSE

a.
A443931

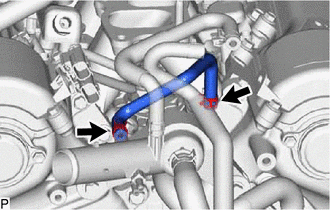

Slide the 2 hose clamps and remove the No. 2 water by-pass hose.


Hide 16267 18.REMOVE NO. 3 WATER BY-PASS HOSE

a.
A443932

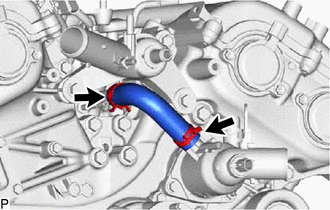

Slide the 2 hose clamps and remove the No. 3 water by-pass hose.


Hide 16268 19.REMOVE NO. 1 WATER BY-PASS PIPE

a.
A443934

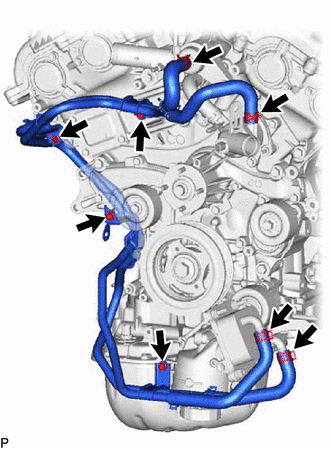

Slide the 4 hose clamps and disconnect the 4 water by-pass hoses.


b.

Remove the 3 bolts, nut and No. 1 water by-pass pipe.


Hide 82121 20.REMOVE ENGINE WIRE
