7GR-FKS COOLING RADIATOR REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 51406A 1.REMOVE NO. 2 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 2 Engine Under Cover Sub-assembly)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0148,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0148,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0148,

Hide Display 52618 2.REMOVE LOWER FRONT BUMPER ABSORBER

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0067,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0067,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0067,

Hide Display 51405A 3.REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0052,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0052,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0052,

Hide Display 4.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>7GR-FKS COOLANT>REPLACEMENT201906,202107,_V1,_078672,_0386705,RM100000001J08K_01_0028,202107,999999,_V1,_078672,_0386705,RM0000003TPC183_01_0028,

Hide Display 11209 5.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0018,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0018,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0018,

Hide Display 53106B 6.REMOVE RADIATOR COVER SUB-ASSEMBLY

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397097,RM100000001IMU6_04_0001,

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (except Wagon)>REMOVAL201906,999999,_59,_079322,_0397096,RM100000001IMTX_03_0016,

Hide Display 17751 7.REMOVE NO. 1 AIR CLEANER INLET

Remove the 2 bolts and No. 1 air cleaner inlet.

Hide Display 44360 8.DISCONNECT VANE PUMP OIL RESERVOIR ASSEMBLY

Remove the 2 bolts and disconnect the vane pump oil reservoir assembly.

Hide Display 16470 9.REMOVE RADIATOR RESERVE TANK ASSEMBLY

0,0 0,0 false

	Radiator Reserve Tank Hose
	Bolt

Disconnect the radiator reserve tank hose.

Remove the 2 bolts and radiator reserve tank assembly.

Hide Display 16571C 10.REMOVE NO. 1 RADIATOR HOSE

Slide the clips and remove the No. 1 radiator hose from the radiator assembly and water outlet.

Hide Display 16572D 11.REMOVE NO. 2 RADIATOR HOSE

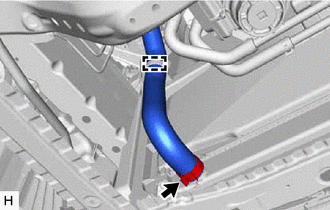

Slide the clip and disconnect the No. 2 radiator hose from the water inlet sub-assembly with thermostat.

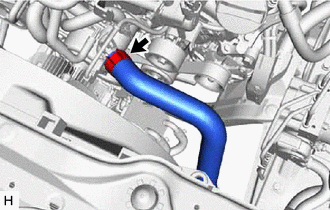

Slide the clip and disconnect the No. 2 radiator hose from the radiator assembly.

Detach the clamp and remove the No. 2 radiator hose.

Hide Display 16711 12.REMOVE FAN SHROUD

Loosen the 4 nuts holding the fan with fluid coupling assembly.

Remove the fan and generator V belt.

Click hereGeneral>MAINTENANCE>7GR-FKS DRIVE BELT>REMOVAL201902,999999,_V1,_078672,_0387902,RM100000001GZZN_01_0002,

Detach the claws.

for Automatic Transmission:

Detach the clamp and disconnect the oil cooler inlet hose.

Remove the 4 nuts of the fan with fluid coupling assembly.

Detach the guides.

0,0 0,0 false

Remove in this Direction

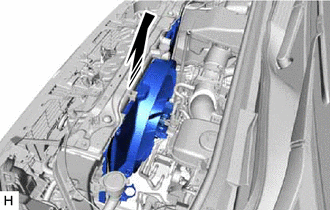

Remove the fan shroud together with the fluid coupling assembly as shown in the illustration.

NOTICE:: Do not allow the radiator assembly to interfere with other parts.

Remove the fan pulley from the water pump assembly.

Hide Display 13.REMOVE FRONT BUMPER

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397092,RM100000001IMT8,

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (except Wagon)>REMOVAL201906,999999,_59,_079322,_0397093,RM100000001IMTD,

Hide Display 53510 14.REMOVE HOOD LOCK ASSEMBLY

for LHD:

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY (for LHD)>REMOVAL201906,999999,_59,_078503,_0385649,RM100000001JOQ7_01_0017,

for RHD:

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY (for RHD)>REMOVAL201906,999999,_59,_078503,_0385650,RM100000001JOQC_01_0023,

Hide Display 53209B 15.REMOVE HOOD LOCK SUPPORT BRACE SUB-ASSEMBLY

2.281,0.865 2.906,0.677 true 2.896,0.563 3.115,0.719 0.219,0.156 10 true *1

*1	Engine Room Main Wire

Disconnect the connector.

Detach the clamps and disconnect the engine room main wire.

w/ Air Conditioning System:

2.729,1.552 2.448,1.042 true 2.688,1.552 2.896,1.719 0.208,0.167 10 true *1

*1	Air Conditioner Tube and Accessory Assembly

Detach the clamp and disconnect the air conditioner tube and accessory assembly.

Remove the 2 bolts and hood lock support brace sub-assembly.

Hide Display 53286F 16.REMOVE RADIATOR SIDE AIR SEAL LH (w/o Air Conditioning System, for Wagon)

Detach the claw, clip and remove the radiator side air seal LH.

Hide Display 53285N 17.REMOVE RADIATOR SIDE AIR SEAL RH (w/o Air Conditioning System, for Wagon)

Detach the claws and remove the radiator side air seal RH.

Hide Display 52139E 18.REMOVE CENTER FRONT BUMPER BRACE (w/o Air Conditioning System)

Remove the 2 bolts and center front bumper brace.

Hide Display 16546 19.REMOVE RADIATOR PROTECTOR (w/o Air Conditioning System)

Remove the 4 bolts.

Detach the guides and remove the radiator protector.

Hide Display 51466 20.REMOVE UPPER RADIATOR SUPPORT BRACE LH (for Wagon)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>CONDENSER>REMOVAL201906,999999,_58,_079316,_0384888,RM100000001IHWX_02_0043,

Hide Display 51465 21.REMOVE UPPER RADIATOR SUPPORT BRACE RH (for Wagon)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>CONDENSER>REMOVAL201906,999999,_58,_079316,_0384888,RM100000001IHWX_02_0044,

Hide Display 86520 22.REMOVE LOW PITCHED HORN ASSEMBLY

Click hereVehicle Exterior>HORN>HORN>REMOVAL201906,999999,_59,_079321,_0385005,RM100000001IHXT_01_0003,

Hide Display 86510 23.REMOVE HIGH PITCHED HORN ASSEMBLY (for 2-piece Type)

Click hereVehicle Exterior>HORN>HORN>REMOVAL201906,999999,_59,_079321,_0385005,RM100000001IHXT_01_0007,

Hide Display 53205 24.REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

0.938,1.74 1.208,1.396 true 0.781,1.719 1,1.885 0.219,0.167 10 true *1

*1	Engine Room Main Wire

Remove the bolt and disconnect the engine room main wire.

for LHD:

2.417,0.875 2.594,0.323 true 2.24,1.667 1.708,1.531 true 2.229,1.625 2.458,1.792 0.229,0.167 10 true *1 2.521,0.156 2.74,0.333 0.219,0.177 10 true *2

*1	Engine Room Main Wire
*2	Hood Lock Control Cable Assembly

Remove the 4 bolts.

ii.

Detach the clamps and disconnect the engine room main wire and hood lock control cable assembly and remove the upper radiator support sub-assembly.

NOTICE:: Do not allow the cooler condenser assembly to interfere with the radiator assembly. (w/ Air Conditioning System)

for RHD:

0.656,1.458 1.073,1.042 true 2.229,1.625 1.771,1.521 true 2.198,1.573 2.417,1.729 0.219,0.156 10 true *1 0.479,1.448 0.708,1.625 0.229,0.177 10 true *2

*1	Engine Room Main Wire
*2	Hood Lock Control Cable Assembly

Remove the 4 bolts.

ii.

Detach the clamps and disconnect the engine room main wire and hood lock control cable assembly and remove the upper radiator support sub-assembly.

NOTICE:: Do not allow the cooler condenser assembly to interfere with the radiator assembly. (w/ Air Conditioning System)

Hide Display 32921D 25.DISCONNECT OIL COOLER INLET HOSE (for Automatic Transmission)

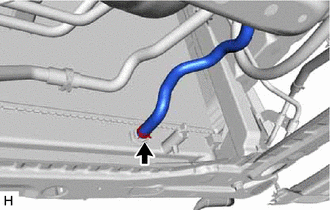

Slide the clip and disconnect the oil cooler inlet hose from the radiator assembly.

Hide Display 32922A 26.DISCONNECT OIL COOLER OUTLET HOSE (for Automatic Transmission)

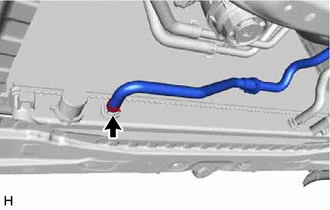

Slide the clip and disconnect the oil cooler outlet hose from the radiator assembly.

Hide Display 16400 27.REMOVE RADIATOR ASSEMBLY

w/ Air Conditioning System:

0,0 0,0 false

Remove in this Direction

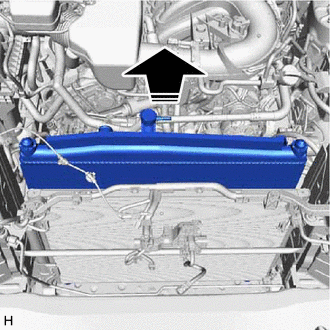

Remove the radiator assembly from the vehicle as shown in the illustration.

NOTICE:: ·

Perform the following procedure with 2 or more people to prevent damage to the radiator assembly.

·

When removing the radiator assembly, do not damage the cooler condenser assembly.

·

Prepare a drain pan or cloth in case the coolant leaks.

w/o Air Conditioning System:

0,0 0,0 false

Remove in this Direction

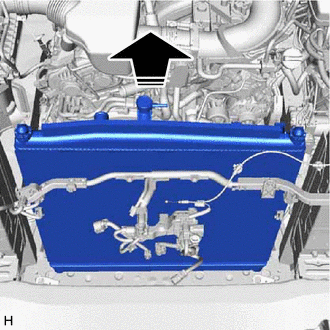

Remove the radiator assembly from the vehicle as shown in the illustration.

NOTICE:: ·

Perform the following procedure with 2 or more people to prevent damage to the radiator assembly.

·

Prepare a drain pan or cloth in case the coolant leaks.

Hide Display 16523A 28.REMOVE RADIATOR SUPPORT CUSHION

Remove the 2 radiator support cushions from the radiator assembly.

Hide Display 16535 29.REMOVE LOWER RADIATOR SUPPORT

Remove the 2 lower radiator supports from the radiator assembly.
