The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the generator assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Battery terminal is disconnected/reconnected | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | ( 201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative when not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane control system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative when not Performed | Necessary Procedures | Link |
|---|---|---|
| Power slide door system | Fully close the slide door by hand.
|
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
1. PRECAUTION
After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
11209
3.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)
16361A
4.REMOVE FAN AND GENERATOR V BELT
16604

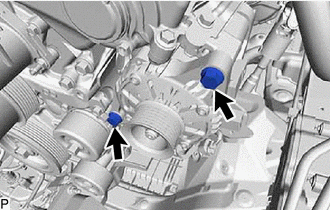

5.REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

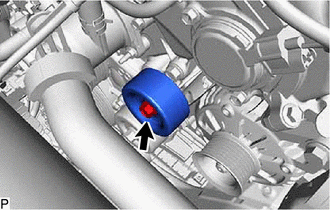

Remove the bolt and No. 2 idler pulley sub-assembly.
17125

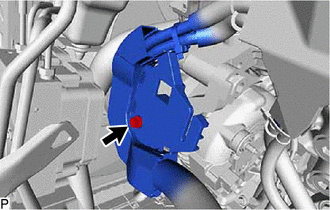

6.REMOVE NO. 1 SURGE TANK STAY
27020
7.REMOVE GENERATOR ASSEMBLY

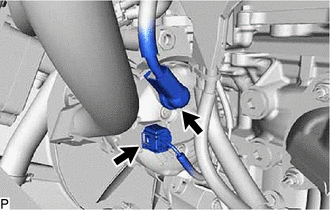

Disconnect the generator connector from the generator assembly.
Remove the terminal cap.
Remove the nut and disconnect the wire harness from terminal B.
Remove the bolt and disconnect the wire harness from the generator assembly.
Detach the wire harness clamp from the generator bracket.
Remove the bolt and disconnect the generator bracket from the cylinder block.
Remove the 2 bolts and generator assembly.
Remove the bolt and generator bracket from the generator assembly.
