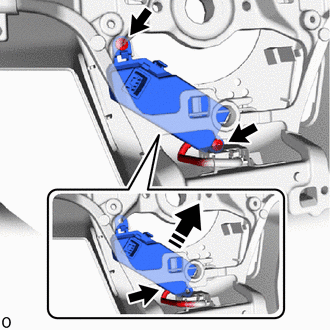

CRUISE CONTROL  STEERING VIBRATION ECU  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during steering vibration ECU removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
		Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

·

Learning completes when vehicle is operated normally

·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.
