RM35X0E _58 Vehicle Interior _078601 SEAT _0398433 POWER SEAT SWITCH(for Front Seat) A

SEAT POWER SEAT SWITCH(for Front Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

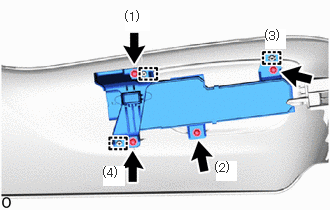

Hide Display 84922 1.INSTALL FRONT POWER SEAT SWITCH

1.302,0.104 1.563,0.323 0.26,0.219 10 true (1) 2.76,0.302 2.979,0.51 0.219,0.208 10 true (3) 1.073,1.729 1.292,1.938 0.219,0.208 10 true (4) 2.24,1.677 2.458,1.885 0.219,0.208 10 true (2)

Attach the guide and set the front power seat switch and seat adjuster shield clamp bracket LH on the front seat cushion shield LH.

Temporarily install the 4 screws.

Tighten the 4 screws in the order shown in the illustration.

HINT:: When tightening, do not apply any other force than the tightening direction.

Hide Display 84921A 2.INSTALL RECLINING POWER SEAT SWITCH KNOB

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0059,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0059,

Hide Display 84921B 3.INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0060,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0060,

Hide Display 71812T 4.INSTALL FRONT SEAT CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0061,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0061,

Hide Display 71862K 5.INSTALL FRONT SEAT INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0057,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0057,

Hide Display 6.INSTALL FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSTALLATION201906,999999,_58,_078601,_0396271,RM100000001IGPO,

Hide Display 7. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 8. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 9.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 10.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 11.INSPECT FRONT SEAT ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM>OPERATION CHECK201906,202208,_58,_078601,_0396712,RM100000001IJIB,202208,999999,_58,_078601,_0396712,RM10000000250KO,
