RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0398418 ROOM LIGHT SWITCH(for Rear Side) G

LIGHTING (INT)  ROOM LIGHT SWITCH(for Rear Side)  INSPECTION


PROCEDURE

Hide 84010A 1.INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (ROOM LIGHT SWITCH)

a.

Remove the integration control and panel assembly.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL (for Rear)>REMOVAL


b.

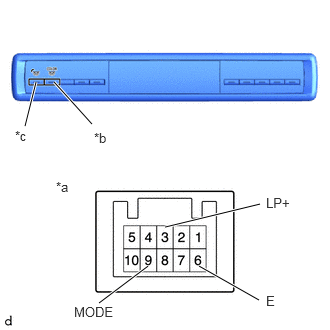

E417005C01
0.563,0.854 0.958,1.292 true 0.375,0.854 0.26,1.313 true 1.719,2.365 2.708,2.125 true 2.073,2.771 2.698,3.125 true 1.031,3.156 1.542,2.771 true 0.979,1.354 1.292,1.552 0.313,0.198 10 false *b 0.156,1.333 0.469,1.531 0.313,0.198 10 false *c 0.583,1.865 0.896,2.063 0.313,0.198 10 false *a 2.771,2.031 3.229,2.229 0.458,0.198 10 false LP+ 2.771,3.052 3.229,3.25 0.458,0.198 10 false E 0.771,3.167 1.229,3.365 0.458,0.198 10 false MODE
*a Component without harness connected
(Integration Control and Panel Assembly)
*b Light Switch
*c Light Color Change Switch


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
3 (LP+) - 6 (E) Light switch pressed Below 1 Ω
Light switch not pressed 1 kΩ or higher
9 (MODE) - 6 (E) Light color change switch pressed Below 1 Ω
Light color change switch not pressed 1 kΩ or higher


If the result is not as specified, replace the integration control and panel assembly.


c.

Install the integration control and panel assembly.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL (for Rear)>INSTALLATION
