AIR CONDITIONING PANEL(for Rear)
A
HEATING / AIR CONDITIONING AIR CONDITIONING PANEL(for Rear) INSTALLATION
PROCEDURE
84010A
1.INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
a.

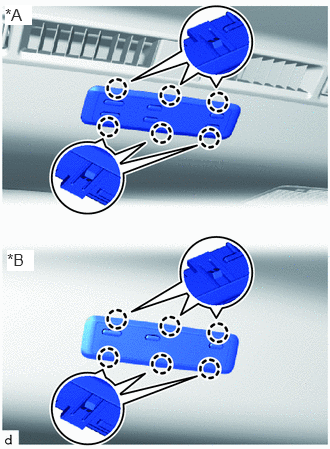

except Wagon:
i.
0.052,0.052 0.333,0.26
0.281,0.208
12
true
*A
0.073,2.604 0.354,2.823
0.281,0.219
12
true
*B
| *A | w/ Heater |
| *B | w/o Heater |
Connect the connector.
ii.
Insert the integration control and panel assembly from the left side and attach the claw to install the integration control and panel assembly.
b.

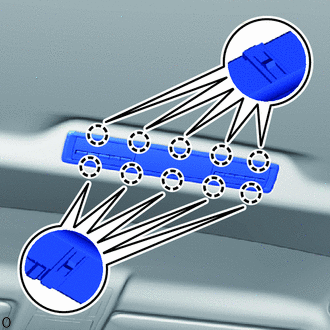

for Wagon:
i.
Connect the connector.
ii.
Insert the integration control and panel assembly from the left side and attach the claw to install the integration control and panel assembly.
