CRUISE CONTROL  DYNAMIC RADAR CRUISE CONTROL SYSTEM  Distance Control Switch Circuit


DESCRIPTION

The vehicle-to-vehicle distance control switch is used to set the distance for vehicle-to-vehicle distance control mode. The vehicle-to-vehicle distance control switch is installed in the steering pad switch assembly. The vehicle-to-vehicle distance set value can be changed by operating the vehicle-to-vehicle distance control switch while the dynamic radar cruise control system is controlling vehicle speed in vehicle-to-vehicle distance control mode.

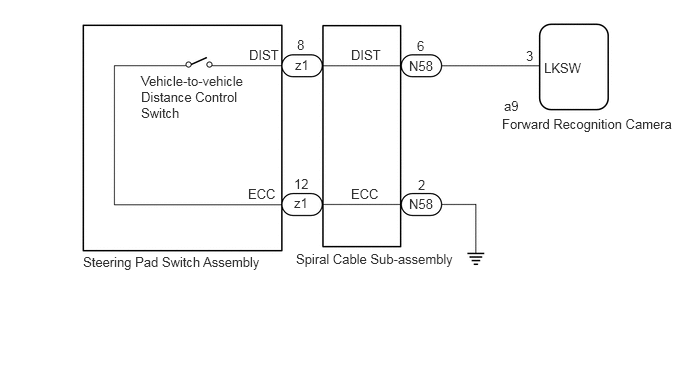

WIRING DIAGRAM

C419500E01
1.469,0.76 2.573,1.531 1.104,0.771 10 false Vehicle-to-vehicle Distance Control Switch 0.865,2.646 3,2.854 2.135,0.208 10 false Steering Pad Switch Assembly 3.083,2.615 4.823,2.917 1.74,0.302 10 false Spiral Cable Sub-assembly 5.229,1.208 7.01,1.469 1.781,0.26 10 false Forward Recognition Camera 3.063,2.031 3.375,2.229 0.313,0.198 10 false z1 3.073,0.594 3.385,0.792 0.313,0.198 10 false z1 4.26,0.604 4.573,0.802 0.313,0.198 10 false N58 4.26,2.042 4.573,2.24 0.313,0.198 10 false N58 5.25,1.021 5.563,1.219 0.313,0.198 10 false a9 3.656,0.49 4.271,0.688 0.615,0.198 10 false DIST 2.594,0.49 3.208,0.688 0.615,0.198 10 false DIST 2.583,1.938 3.198,2.135 0.615,0.198 10 false ECC 3.656,1.938 4.271,2.135 0.615,0.198 10 false ECC 5.667,0.625 6.281,0.823 0.615,0.198 10 false LKSW 3.094,0.385 3.25,0.583 0.156,0.198 10 false 8 3.063,1.833 3.344,2.031 0.281,0.198 10 false 12 4.344,0.396 4.5,0.594 0.156,0.198 10 false 6 4.354,1.844 4.51,2.042 0.156,0.198 10 false 2 5.479,0.5 5.635,0.698 0.156,0.198 10 false 3

CAUTION / NOTICE / HINT

NOTICE:
·

Before replacing the ECM, refer to Service Bulletin.

·

The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.

for Type A: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION

for Type C: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION

·

When replacing the forward recognition camera, replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.

·

If the forward recognition camera has been replaced with a new one, it is necessary to perform forward recognition camera adjustment.

HINT:

Forward recognition camera adjustment can be performed by using either One Time Recognition or Sequential Recognition.

One Time Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>ADJUSTMENT (ONE TIME RECOGNITION)

Sequential Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>ADJUSTMENT (SEQUENTIAL RECOGNITION)




PROCEDURE

1.READ VALUE USING GTS (VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH)
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Radar Cruise 2 / Data List.


e.

Read the Data List according to the display on the GTS.

Powertrain > Radar Cruise2 > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Vehicle-to-vehicle Distance Control Switch Vehicle-to-vehicle distance control switch signal ON or OFF ON: Vehicle-to-vehicle distance control switch pushed
OFF: Vehicle-to-vehicle distance control switch not pushed
-
Powertrain > Radar Cruise2 > Data List
Tester Display
Vehicle-to-vehicle Distance Control Switch
50003 426 4
OK:

The value of the Data List item changes according to the operation of the vehicle-to-vehicle distance control switch.



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT STEERING PAD SWITCH ASSEMBLY
3.INSPECT SPIRAL CABLE SUB-ASSEMBLY

OK

4.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA, ECM AND BODY GROUND)

NG

4.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA, ECM AND BODY GROUND)
a.

Disconnect the N58 spiral cable sub-assembly connector.


b.

Disconnect the a9 forward recognition camera connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N58-6 (DIST) - a9-3 (LKSW) Always Below 1 Ω
N58-6 (DIST) or a9-3 (LKSW) - Body ground Always 10 kΩ or higher
N58-2 (ECC) - Body ground Always 10 kΩ or higher



d.

Connect the a9 forward recognition camera connector.


e.

Connect the N58 spiral cable sub-assembly connector.


Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
