RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384891 AMBIENT TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING  AMBIENT TEMPERATURE SENSOR  INSTALLATION


PROCEDURE

Hide 88790B 1.INSTALL THERMISTOR ASSEMBLY (AMBIENT TEMPERATURE SENSOR)

a.

except Wagon:

i.

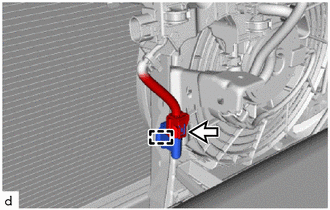

E415289

Connect the connector.


ii.

Attach the clamp to install the thermistor assembly (ambient temperature sensor).



b.

for Wagon:

i.

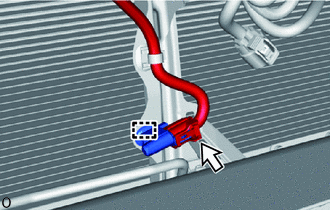

E421545

Connect the connector.


ii.

Attach the clamp to install the thermistor assembly (ambient temperature sensor).
