DOOR LOCK  FRONT DOOR LOCK  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front door lock assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Removal and installation of battery terminal Parking assist monitor system Memorize steering angle neutral point (Click here)
Panoramic view monitor system (Click here)
·

Power window regulator motor assembly LH

·

Power window regulator motor assembly RH

·

Front door window regulator assembly LH

·

Front door window regulator assembly RH

·

Front door glass sub-assembly LH

·

Front door glass sub-assembly RH

·

Front door glass run LH

·

Front door glass run RH


·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Key-linked function

·

Wireless transmitter-linked function

·

Key-off operation function


Initialize power window control system (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -

·

Use the same procedure for RHD and LHD vehicles.

·

The procedure below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

·

When removing the front door glass sub-assembly LH, move the front door glass sub-assembly LH to the lowest position before disconnecting the negative (-) battery terminal.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


b.

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL

CAUTION:
B394718

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




Hide 4.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

Hide 5.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

Hide 67836C 13.REMOVE FRONT DOOR NO. 3 SERVICE HOLE COVER LH (w/ Curtain Shield Airbag)

Hide 67838F 14.REMOVE FRONT DOOR NO. 4 SERVICE HOLE COVER LH (w/ Curtain Shield Airbag)

Hide 67402F 16.REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY LH

Hide 69220 22.REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH (w/ Lock Cylinder)

Hide 23.REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY LH (w/ Lock Cylinder)

Hide 69312 24.REMOVE FRONT DOOR LOCK OPEN ROD LH

a.
B537909C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3)

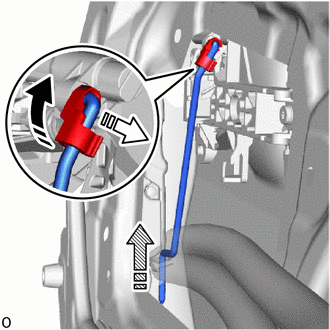

Detach the snap in the direction (1) indicated by the arrow shown in the illustration and disconnect the front door lock open rod LH in the direction (2) indicated by the arrow shown in the illustration.


b.

Remove the front door lock open rod LH in the direction (3) indicated by the arrow shown in the illustration.


Hide 69040A 25.REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

a.
B537911C01
0,0 0,0 false
V100135

"TORX" Screw
V100136

Connector


Disconnect the connector.


b.

Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws and front door lock with motor assembly LH.


Hide 69318C 26.REMOVE DOOR LOCK WIRING HARNESS SEAL

a.
B537912

When reusing front door lock with motor assembly LH:

i.

Remove the door lock wiring harness seal from the front door lock with motor assembly LH.



Hide 69036A 27.REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY LH

a.
B537913C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape

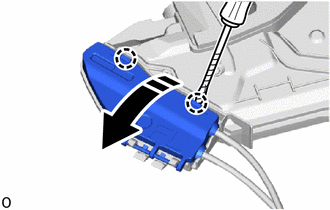

Using a screwdriver with its tip wrapped with protective tape, detach the claw and open the front door lock cover sub-assembly LH.


b.
B537914

Detach the claw and remove the front door lock cover sub-assembly LH.


Hide 69720D 28.REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH

a.
B537915C01
0,0 0,0 false
V113147

Remove in this Direction

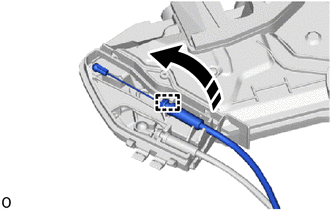

Detach the clamp and remove the front door lock remote control cable assembly LH as shown in the illustration.


Hide 69760B 29.REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH

a.
B537916C01
0,0 0,0 false
V113147

Remove in this Direction

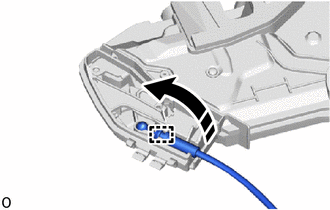

Detach the clamp and remove the front door inside locking cable assembly LH as shown in the illustration.
