PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Front)  INSTALLATION


PROCEDURE

Hide 89347B 1.INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER

NOTICE:
·

Installing the front corner ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.



HINT:

Perform the following procedure only when replacement of a front corner ultrasonic sensor retainer is necessary.


a.

Clean the front bumper cover surface.

i.

Remove any remaining double-sided tape from the front bumper cover.


ii.

Wipe off any tape adhesive residue with cleaner.



b.
B502899C04
2.604,1.146 2.917,1.344 0.313,0.198 10 false *a 1.49,0.156 1.802,0.354 0.313,0.198 10 false *a
*a 30 mm (1.18 in.)

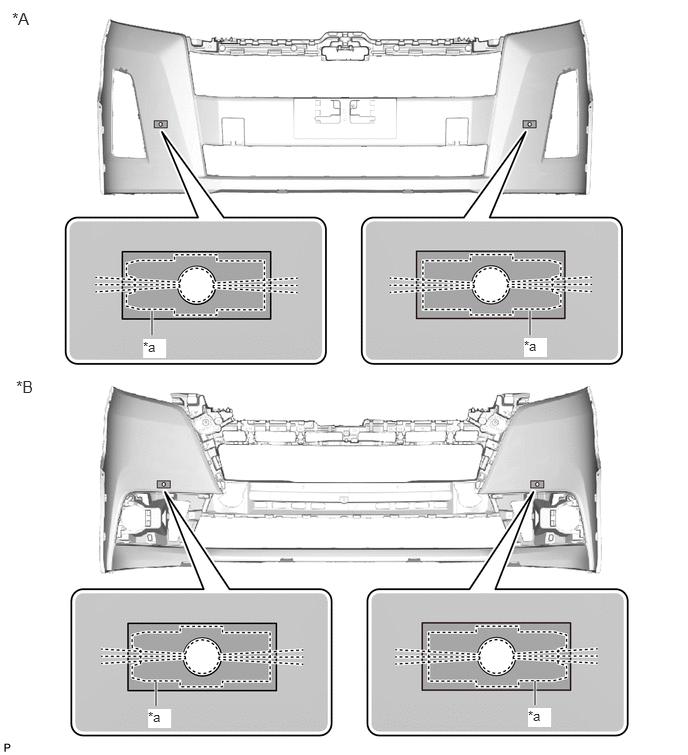

Cover the sensor installation hole from the outside of the front bumper cover with a 30 mm (1.18 in.) square piece of tape.


c.

Apply primer to the front bumper cover on the installation area of the front corner ultrasonic sensor retainer using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the front corner ultrasonic sensor retainer has been attached.



B552430C01
5.521,3.49 5.521,3.24 true 1.583,3.49 1.583,3.24 true 1.625,7.354 1.625,7.104 true 5.573,7.344 5.573,7.094 true 5.458,3.521 5.698,3.719 0.24,0.198 10 true *a 1.49,3.531 1.729,3.729 0.24,0.198 10 true *a 1.542,7.385 1.781,7.583 0.24,0.198 10 true *a 5.5,7.375 5.74,7.573 0.24,0.198 10 true *a 0.167,3.927 0.542,4.167 0.375,0.24 12 false *B 0.125,0.094 0.5,0.333 0.375,0.24 12 false *A
*A except Wagon *B for Wagon
*a Scribed Line - -
V100145

Primer Application - -



d.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



e.

Confirm that the primer has completely dried by touching the front bumper cover. Then remove the tape.


f.

Remove the peeling paper of a new front corner ultrasonic sensor retainer trying not to touch the adhesional surface.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



g.

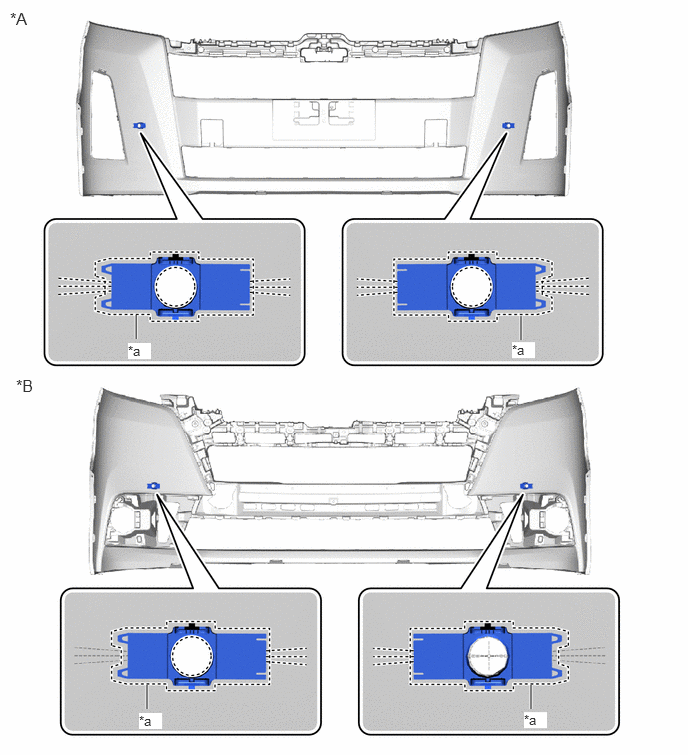

Align the 2 front corner ultrasonic sensor retainers with the scribed line on the front bumper cover and install it as shown in the illustration.

NOTICE:

The application strength of the front corner ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:
·

Apply pressure so that it does not lift up from the front bumper cover.

·

Pushing force: 30 N (3.1 kgf) for 3 seconds



B552431C01
5.427,3.542 5.427,3.292 true 1.417,3.531 1.417,3.281 true 1.531,7.385 1.531,7.135 true 5.531,7.385 5.531,7.135 true 5.333,3.563 5.573,3.729 0.24,0.167 10 true *a 1.333,3.573 1.573,3.74 0.24,0.167 10 true *a 0.104,0.094 0.417,0.333 0.313,0.24 12 false *A 0.167,3.917 0.5,4.25 0.333,0.333 12 false *B 1.448,7.427 1.688,7.594 0.24,0.167 10 true *a 5.458,7.417 5.698,7.583 0.24,0.167 10 true *a
*A except Wagon *B for Wagon
*a Scribed Line - -



Hide 89341K 2.INSTALL FRONT CORNER ULTRASONIC SENSOR

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.
B540057C01
0.917,1.333 0.75,1.333 0.75,1.333 0.75,1.083 false 0.75,0.521 0.75,0.271 0.75,0.271 0.917,0.271 false 0.979,1.25 1.292,1.448 0.313,0.198 10 false *a 0.979,0.198 1.292,0.396 0.313,0.198 10 false *a

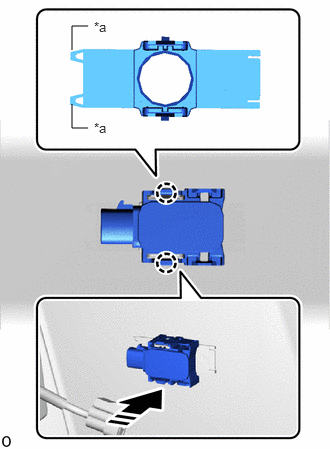

*a Protrusion of the mark
V113147

Install in this Direction


Attach the claw to install the front corner ultrasonic sensor.

NOTICE:
·

When reusing the sensor, make sure that each sensor is returned to its original position.

·

Check that the claw is securely fitted.

·
B544353C01
0,0 0,0 false
V100155

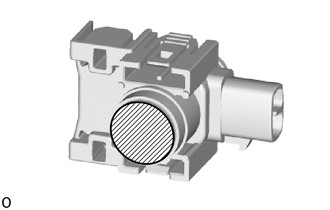

Microphone Surface


Do not push the microphone surface.



HINT:

Align the connector with the protrusion of the mark when connecting it.



b.
B552428C01
0.083,0.167 0.417,0.406 0.333,0.24 12 true *A 0.167,2.583 0.5,2.833 0.333,0.25 12 true *B
*A except Wagon
*B for Wagon


Connect the connector.
