RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396104 FOG LIGHT ASSEMBLY(for Halogen Fog Light) N

LIGHTING (EXT)  FOG LIGHT ASSEMBLY(for Halogen Fog Light)  ADJUSTMENT


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

If it is not possible to correctly adjust the fog light aim, check the fog light assembly and fog light bulb installation.



PROCEDURE

Hide 1.PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT

a.

Prepare the vehicle:

·

Make sure that there is no damage to the body around the headlights.

·

Fill the fuel tank.

·

Make sure that the oil is filled to the specified level.

·

Make sure that the coolant is filled to the specified level.

·

Inflate the tires to the appropriate pressure.

·

Unload the trunk and vehicle, ensuring that the spare tire, tools and jack are in their original positions.

·

Have a person of average weight (75 kg, 165 lb) sit in the driver seat.



Hide 2.PREPARE FOR FOG LIGHT AIMING

a.

Prepare the vehicle:

·

Place the vehicle in a location that is dark enough to clearly observe the cutoff line. The cutoff line is a distinct line, below which light from the fog lights can be observed and above which it cannot.

·
E413200C01
0.698,1.385 1.01,1.542 0.313,0.156 10 false *a 0.969,1.823 1.281,1.979 0.313,0.156 10 false *b
*a 90°
*b 25 m or 3 m

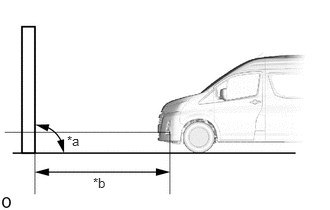

Place the vehicle at a 90° angle to the wall.

·
E413201C01

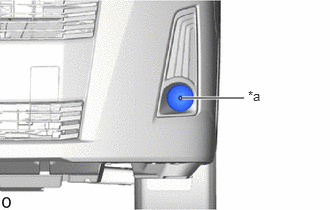

1.896,1.021 2.542,1.021 true 2.583,0.917 2.896,1.073 0.313,0.156 10 false *a
*a Center Mark


Create a 25 m (82 ft.) distance between the vehicle (center marks of the fog light) and the wall.

·

Make sure that the vehicle is on a level surface.

·

Position the front wheels straight ahead.

·

Bounce the vehicle up and down to settle the suspension.


NOTICE:

A distance of 25 m (82 ft.) between the vehicle (center marks of fog light) and the wall is necessary for proper aim adjustment. If sufficient space is not available, secure a distance of exactly 3 m (9.84 ft.) to allow for checking and adjustment of fog light aim. (The size of the target zone will change with the distance, so follow the instructions in the illustration.)



b.

Prepare a piece of thick white paper (approximately 2 m (6.56 ft.) (height) x 4 m (13.1 ft.) (width)) to use as a screen.


c.

Draw a vertical line down the center of the screen (V line).


d.

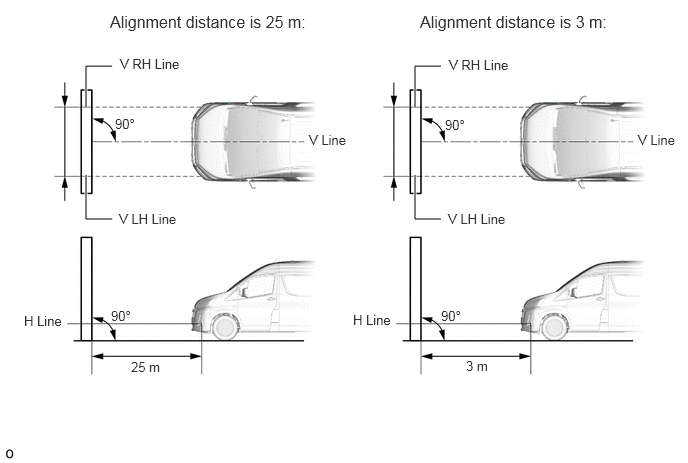

Set the screen as shown in the illustration.

HINT:
·

Stand the screen perpendicular to the ground.

·

Align the V line on the screen with the center of the vehicle.



E413202E01
0.896,1.115 0.896,0.688 0.896,0.688 1.167,0.688 true 4.323,1.115 4.323,0.688 4.323,0.688 4.594,0.688 true 1.167,2.281 0.896,2.281 0.896,2.281 0.896,1.823 true 4.594,2.281 4.323,2.281 4.323,2.281 4.323,1.823 true 1.198,1.208 1.656,1.406 0.458,0.198 10 false 90° 4.635,1.219 5.094,1.417 0.458,0.198 10 false 90° 1.25,0.583 2.625,0.781 1.375,0.198 10 false V RH Line 4.677,0.594 6.052,0.792 1.375,0.198 10 false V RH Line 1.24,2.198 2.615,2.396 1.375,0.198 10 false V LH Line 3.219,1.375 3.719,1.563 0.5,0.188 10 false V Line 6.646,1.375 7.094,1.604 0.448,0.229 10 false V Line 4.667,2.198 6.042,2.396 1.375,0.198 10 false V LH Line 0.25,3.26 0.75,3.448 0.5,0.188 10 false H Line 3.677,3.25 4.177,3.438 0.5,0.188 10 false H Line 1.156,3.208 1.615,3.406 0.458,0.198 10 false 90° 4.594,3.208 5.052,3.406 0.458,0.198 10 false 90° 1.365,3.74 2.281,3.938 0.917,0.198 10 false 25 m 4.854,3.729 5.313,3.927 0.458,0.198 10 false 3 m 1.146,0.125 3.583,0.396 2.438,0.271 12 false Alignment distance is 25 m: 4.375,0.125 6.813,0.396 2.438,0.271 12 false Alignment distance is 3 m:


e.
E257183C05
1.177,0.292 1.49,0.448 0.313,0.156 10 *a 1.844,0.302 2.156,0.458 0.313,0.156 10 *b 2.479,0.313 2.792,0.469 0.313,0.156 10 *c 2.969,0.875 3.281,1.031 0.313,0.156 10 *d 0.563,1.708 0.875,1.865 0.313,0.156 10 *e
*a V LH Line
*b V Line
*c V RH Line
*d H Line
*e Ground


Draw base lines (H, V LH, and V RH lines) on the screen as shown in the illustration.

HINT:

Mark the aiming marks on the screen.


i.

H Line (Fog light height):

Draw a horizontal line across the screen so that it passes through the center marks. The H line should be at the same height as the center marks of the fog lights.


ii.

V LH Line, V RH Line (Center mark position of left-hand (LH) and right-hand (RH) fog lights):

Draw 2 vertical lines so that they intersect the H line at each center mark (aligned with the center marks of the fog lights).



Hide 3.INSPECT FOG LIGHT AIMING

a.

Cover the fog light or disconnect the connector of the fog light on the opposite side to prevent light from the fog light that is not being inspected from affecting the fog light aiming inspection.

NOTICE:

Do not keep the fog light covered for more than 3 minutes. The fog light lens is made of synthetic resin, which may melt or be damaged due to excessive heat.



b.

Start the engine.


c.

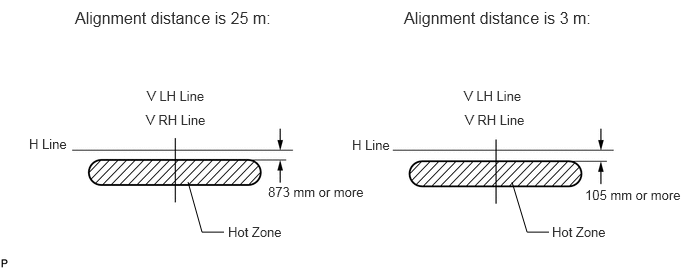

Turn on the fog lights and check if the upper edge of the hot zone for each fog light matches the upper edge as shown in the illustration.

HINT:
·

If the alignment distance is 25 m (82 ft.):

The upper edge of the hot zone for the fog light should be 873 mm (2.86 ft.) or more below the H line.

·

If the alignment distance is 3 m (9.84 ft.):

The upper edge of the hot zone for the fog light should be 105 mm (4.13 in.) or more below the H line.



E418180E02
1.958,1.896 2.104,2.417 2.104,2.417 2.333,2.417 false 5.333,1.896 5.49,2.417 5.49,2.417 5.719,2.417 false 2.792,1.917 4.094,2.25 1.302,0.333 10 false 873 mm or more 6.094,1.948 7.156,2.313 1.063,0.365 10 false 105 mm or more 0.781,0.083 2.896,0.323 2.115,0.24 12 false Alignment distance is 25 m: 4.208,0.083 6.198,0.313 1.99,0.229 12 false Alignment distance is 3 m: 0.302,1.417 0.75,1.75 0.448,0.333 10 false H Line 3.667,1.427 4.115,1.75 0.448,0.323 10 false H Line 1.531,0.917 2.167,1.25 0.635,0.333 10 false V LH Line 4.844,1.167 5.5,1.5 0.656,0.333 10 false V RH Line 4.833,0.917 5.469,1.229 0.635,0.313 10 false V LH Line 1.521,1.167 2.177,1.5 0.656,0.333 10 false V RH Line 2.375,2.333 2.969,2.635 0.594,0.302 10 false Hot Zone 5.75,2.333 6.344,2.635 0.594,0.302 10 false Hot Zone


Hide 4.ADJUST FOG LIGHT AIMING

a.
E413203C01
1.26,3.344 2.01,3.833 true 1.948,1.667 2.156,1.865 0.208,0.198 10 true *a 2.042,3.771 2.24,3.958 0.198,0.188 10 true *b
*a Service Hole
*b Aiming Screw

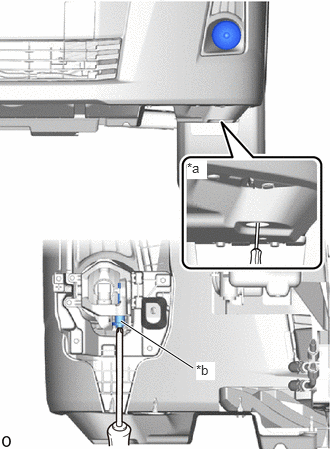

Adjust the aim vertically:

Adjust the aim of each fog light to the specified range by turning each aiming screw with a screwdriver inserted from the service hole.

NOTICE:

The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.


HINT:

If it is not possible to correctly adjust the fog light aim, check the fog light assembly and fog light bulb installation.
