RM35X0E _58 Vehicle Interior _078378 THEFT DETERRENT / KEYLESS ENTRY _0397001 ENTRY AND START SYSTEM(for Start Function) J

THEFT DETERRENT / KEYLESS ENTRY  ENTRY AND START SYSTEM(for Start Function)  Steering Lock does not Lock


DESCRIPTION

The steering lock ECU (steering lock actuator or upper bracket assembly) activates the steering lock motor and moves the lock bar into the steering column to lock the steering.

When the steering lock is operating, the steering may not lock when the lock bar is not aligned with the lock hole of the steering column. In this case, the steering can be locked by turning the steering wheel a little, as is done for a vehicle with a mechanical key, to change the position of the lock hole.

Related Data List and Active Test Items
Problem Symptom Data List and Active Test
Steering Lock does not Lock
Entry&Start
·

Lock Request Receive

·

S Code Check

·

L Code Check

·

Steering Lock


Main Body
·

FL Door Courtesy SW


Power Source Control
·

Shift P Signal

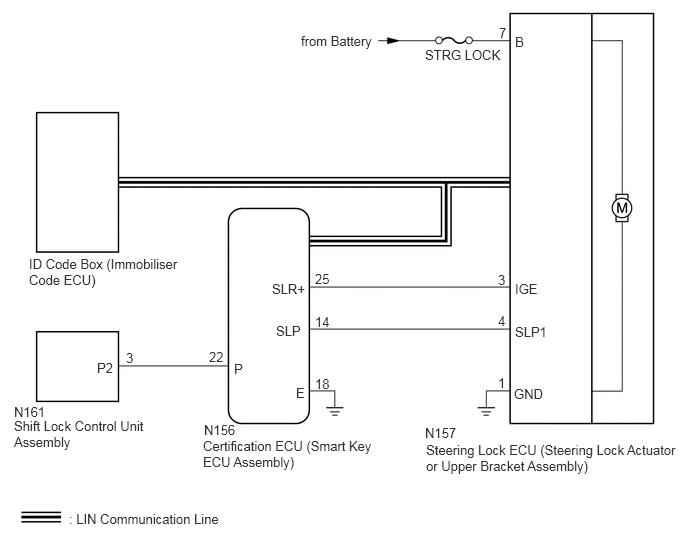

WIRING DIAGRAM

C396309E22
3.281,2.823 3.594,3.021 0.313,0.198 10 false 25 3.281,3.271 3.594,3.469 0.313,0.198 10 false 14 3.281,3.917 3.594,4.115 0.313,0.198 10 false 18 5.198,0.26 5.51,0.458 0.313,0.198 10 false 7 5.188,2.833 5.5,3.031 0.313,0.198 10 false 3 5.188,3.26 5.5,3.458 0.313,0.198 10 false 4 5.188,3.906 5.5,4.104 0.313,0.198 10 false 1 3.135,0.344 4.052,0.615 0.917,0.271 10 false from Battery 4.427,0.49 5.802,0.688 1.375,0.198 10 false STRG LOCK 0.302,2.667 1.865,3.271 1.563,0.604 10 false ID Code Box (Immobiliser Code ECU) 0.146,4.354 1.552,4.833 1.406,0.479 10 false Shift Lock Control Unit Assembly 2.125,4.396 2.583,4.594 0.458,0.198 10 false N156 2.115,4.563 3.906,5.219 1.792,0.656 10 false Certification ECU (Smart Key ECU Assembly) 4.427,4.427 4.885,4.625 0.458,0.198 10 false N157 4.438,4.604 7.115,5.031 2.677,0.427 10 false Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly) 1.01,3.75 1.625,3.948 0.615,0.198 10 false P2 2.833,2.927 3.448,3.125 0.615,0.198 10 false SLR+ 2.875,3.365 3.49,3.563 0.615,0.198 10 false SLP 3.083,4.01 3.698,4.208 0.615,0.198 10 false E 5.365,0.354 5.979,0.552 0.615,0.198 10 false B 5.365,2.927 5.979,3.125 0.615,0.198 10 false IGE 5.365,3.375 5.979,3.573 0.615,0.198 10 false SLP1 5.354,4.021 5.969,4.219 0.615,0.198 10 false GND 2.438,3.76 3.052,3.958 0.615,0.198 10 false P 0.719,5.323 2.74,5.625 2.021,0.302 10 false : LIN Communication Line 2.177,3.635 2.635,3.833 0.458,0.198 10 false 22 1.313,3.646 1.771,3.906 0.458,0.26 10 false 3 0.146,4.208 0.76,4.406 0.615,0.198 10 false N161

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

The entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Make sure that no DTCs are output. If any DTCs are output, proceed to the Diagnostic Trouble Code Chart.

·

After completing repairs, confirm that the problem does not recur.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

·

Before replacing the steering lock ECU (steering lock actuator or upper bracket assembly), certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU), refer to the Service Bulletin.



PROCEDURE

1.READ VALUE USING GTS (LOCK REQUEST RECEIVE)
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Entry&Start / Data List.


e.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Lock Request Receive Status of steering lock command from certification ECU (smart key ECU assembly) OK or NG OK: Lock request signal received within 10 seconds of any of the doors being opened with shift state park (P) and engine switch off.
NG: Except above 		If OK is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
Body Electrical > Entry&Start > Data List
Tester Display
Lock Request Receive
50003 125 68
OK:

Within 10 seconds of any of the doors being opened with shift state park (P) and engine switch off, the Data List item changes to "OK".



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (S CODE CHECK)

NG

10.READ VALUE USING GTS (DOOR COURTESY SW)
2.READ VALUE USING GTS (S CODE CHECK)
a.

Enter the following menus: Body Electrical / Entry&Start / Data List.


b.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
S Code Check S code verification result OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is not registered, or the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
S Code Check
50003 125 65
OK:

OK is displayed on the GTS.


HINT:

Reasons for verification failure:

·

The certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.

·

There is a problem with the communication between ECUs.

·

An ECU is replaced, but is not registered.

·

An ECU is replaced with an ECU which has a code already stored in it.




Result:
Proceed to
OK
NG



OK

3.READ VALUE USING GTS (L CODE CHECK)

NG

9.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
3.READ VALUE USING GTS (L CODE CHECK)
a.

Enter the following menus: Body Electrical / Entry&Start / Data List.


b.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
L Code Check Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly) OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is not registered, or the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
L Code Check
50003 125 66
OK:

OK is displayed on the GTS.


HINT:

Reasons for verification failure:

·

The steering lock ECU (steering lock actuator or upper bracket assembly) or ID code box (immobiliser code ECU) is malfunctioning.

·

There is a problem with the communication between ECUs.

·

An ECU is replaced, but is not registered.

·

An ECU is replaced with an ECU which has a code already stored in it.




Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - POWER SUPPLY AND BODY GROUND)

NG

8.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
4.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - POWER SUPPLY AND BODY GROUND)
a.

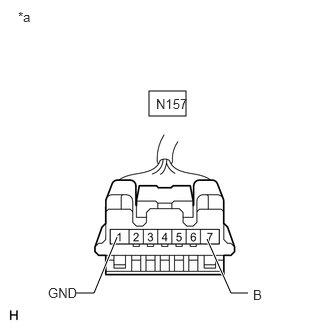

C342408C55
1.552,0.948 1.938,1.208 0.385,0.26 0.792,3.052 0.979,3.052 0.979,3.052 1.219,2.469 true 2.583,3.052 2.406,3.052 2.406,3.052 2.156,2.49 true 0.188,0.094 0.5,0.25 0.313,0.156 10 false *a 0.5,2.969 0.958,3.167 0.458,0.198 10 false GND 1.625,1 2.083,1.198 0.458,0.198 10 false N157 2.635,2.99 3.094,3.188 0.458,0.198 10 false B
*a Front view of wire harness connector
(to Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))


Disconnect the steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N157-1 (GND) - Body ground Always Below 1 Ω


NOTICE:

If the result is not as specified, check for looseness in the ground cable connection.



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N157-7 (B) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

5.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) (MOTOR ACTIVATION COMMAND SIGNAL)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) (MOTOR ACTIVATION COMMAND SIGNAL)
a.

Reconnect the steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.

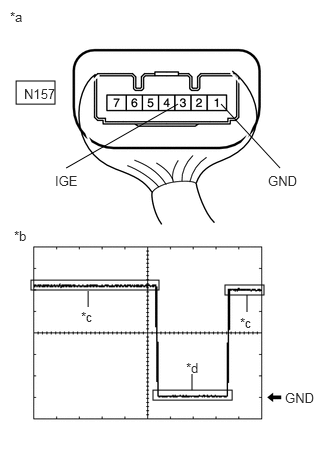

C389181C18
0.323,2.917 1.656,3.021 1.333,0.104 2.344,2.969 2.75,3.073 0.406,0.104 1.594,4.063 2.417,4.167 0.823,0.104 0.167,0.844 0.573,1.083 0.406,0.24 0.917,3.198 0.917,3.031 false 2,4.063 2,3.896 false 2.573,3.25 2.573,3.073 false 0.688,1.75 1.854,1.083 false 2.302,1.083 2.917,1.75 false 0.104,0.094 0.417,0.25 0.313,0.156 10 false *a 0.844,3.219 1.156,3.375 0.313,0.156 10 false *c 1.938,3.75 2.25,3.906 0.313,0.156 10 false *d 2.5,3.281 2.813,3.479 0.313,0.198 10 false *c 0.573,1.802 1.031,2 0.458,0.198 10 false IGE 2.792,1.802 3.25,2 0.458,0.198 10 false GND 2.969,4.063 3.427,4.26 0.458,0.198 10 false GND 0.25,0.896 0.708,1.094 0.458,0.198 10 false N157 0.146,2.375 0.458,2.531 0.313,0.156 10 false *b
*a Component with harness connected
(Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))
*b Waveform
*c Steering Lock Motor not Operating
*d Steering Lock Motor Operating


Using an oscilloscope, check the waveform.

OK:
Tester Connection Tool Setting Condition Specified Condition
N157-3 (IGE) - N157-1 (GND) 2 V/DIV., 200 ms./DIV. Any door opened when following conditions are met, and then steering lock motor activated:
·

Shift state park (P)

·

Steering lock unlocked in advance by carrying key and turning engine switch on (IG)

·

After above conditions are met, engine switch turned off


Pulse generation
(See waveform)


HINT:
·

When taking measurements when the lock motor is stopped, it is not necessary to perform any operations.

·

In order to take measurements when the lock motor is operating, perform either of the following operations:

-

To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG).

-

To lock the steering, turn the engine switch off with the shift state park (P), and then open a door.





Result:
Proceed to
OK
NG



OK

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


NG

6.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
6.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
a.

Disconnect the N157 steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.

Disconnect the N156 certification ECU (smart key ECU assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N157-3 (IGE) - N156-25 (SLR+) Always Below 1 Ω
N157-3 (IGE) or N156-25 (SLR+) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
a.

Reconnect the steering lock ECU (steering lock actuator or upper bracket assembly) connector.


b.

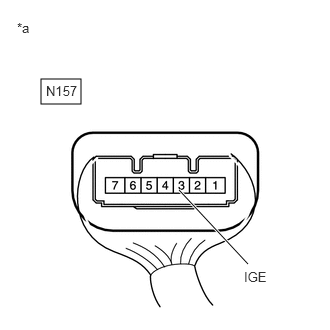

C407387C04
0.427,0.823 0.844,1.083 0.417,0.26 2.583,2.75 1.865,1.979 true 0.177,0.208 0.49,0.365 0.313,0.156 10 false *a 2.542,2.802 3.052,3.063 0.51,0.26 10 false IGE 0.479,0.865 1.021,1.083 0.542,0.219 10 false N157
*a Component with harness connected
(Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N157-3 (IGE) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


8.CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
a.

Replace the steering lock ECU (steering lock actuator or upper bracket assembly) with a new one.

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


b.

Enter the following menus: Body Electrical / Entry&Start / Data List.


c.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
L Code Check Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly) OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is not registered, or the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
L Code Check
50003 125 66
OK:

OK is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

END (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) WAS DEFECTIVE)

NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

9.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

Replace the certification ECU (smart key ECU assembly) with a new one and perform registration again.

HINT:

Refer to the Service Bulletin.



b.

Enter the following menus: Body Electrical / Entry&Start / Data List.


c.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
S Code Check S code verification result OK or NG OK: Verification result normal
NG: Verification result abnormal 		When NG is displayed:
·

The ID code for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is not registered, or the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.

·

The steering cannot be locked.

·

The steering cannot be unlocked (the engine cannot be started).


Body Electrical > Entry&Start > Data List
Tester Display
S Code Check
50003 125 65
OK:

OK is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

10.READ VALUE USING GTS (DOOR COURTESY SW)
a.

Enter the following menus: Body Electrical / Main Body / Data List.


b.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
RR Door Courtesy SW Slide door RH courtesy light switch ON or OFF ON: Slide door RH open
OFF: Slide door RH closed 		-
RL Door Courtesy SW Slide door LH courtesy light switch ON or OFF ON: Slide door LH open
OFF: Slide door LH closed 		-
FR Door Courtesy SW Front door courtesy light switch assembly RH signal OFF or ON OFF: Front door RH closed
ON: Front door RH open 		-
FL Door Courtesy SW Front door courtesy light switch assembly LH signal OFF or ON OFF: Front door LH closed
ON: Front door LH open 		-
Body Electrical > Main Body > Data List
Tester Display
RR Door Courtesy SW
RL Door Courtesy SW
FR Door Courtesy SW
FL Door Courtesy SW
50003 123 24,25,197,199
OK:

The Data List item changes in accordance with the opening and closing of the driver door.



Result:
Proceed to
OK
NG



OK

11.READ VALUE USING GTS (SHIFT P SIGNAL)

NG

GO TO LIGHTING SYSTEM (DOOR COURTESY SWITCH CIRCUIT)

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>Door Courtesy Switch Circuit


11.READ VALUE USING GTS (SHIFT P SIGNAL)
a.

Change the shift state to park (P).


b.

Enter the following menus: Body Electrical / Power Source Control / Data List.


c.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Shift P Signal State of brake pedal ON or OFF ON: Shift state park (P)
OFF: Shift state not park (P)
·

Use this item to determine if the shift position switch is malfunctioning.

·

The engine cannot be started when this item is OFF.


Body Electrical > Power Source Control > Data List
Tester Display
Shift P Signal
50003 223 1
OK:

Normal2 is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

12.READ VALUE USING GTS (STEERING LOCK)

NG

14.CHECK SHIFT LOCK CONTROL UNIT ASSEMBLY (OUTPUT TO CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
12.READ VALUE USING GTS (STEERING LOCK)
a.

Check that the steering is unlocked.


b.

Enter the following menus: Body Electrical / Entry&Start / Data List.


c.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Steering Lock Steering lock ECU (steering lock actuator or upper bracket assembly) lock confirmation status Unset or Set Unset: Lock not confirmed
Set: Lock confirmed 		When Unset is displayed, the steering is not locked.
Body Electrical > Entry&Start > Data List
Tester Display
Steering Lock
50003 125 47
OK:

Set is displayed on the GTS.



Result:
Proceed to
OK
NG



OK

13.READ VALUE USING GTS (LOCK REQUEST RECEIVE)

NG

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>DISASSEMBLY


13.READ VALUE USING GTS (LOCK REQUEST RECEIVE)
a.

Replace the certification ECU (smart key ECU assembly) with a new one.

HINT:

Refer to the Service Bulletin.



b.

Perform registration.

HINT:

Refer to the Service Bulletin.



c.

Enter the following menus: Body Electrical / Entry&Start / Data List.


d.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Lock Request Receive Status of steering unlock command from certification ECU (smart key ECU assembly) OK or NG OK: Lock request signal received within 10 seconds of any of the doors being opened with shift state park (P) and engine switch off.
NG: Except above
·

The engine cannot be started when an unlock request signal cannot be received.

·

If OK is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.


Body Electrical > Entry&Start > Data List
Tester Display
Lock Request Receive
50003 125 68
OK:

Within 10 seconds of any of the doors being opened with shift state park (P) and engine switch off, the Data List item changes to "OK".



Result:
Proceed to
OK
NG



OK

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

14.CHECK SHIFT LOCK CONTROL UNIT ASSEMBLY (OUTPUT TO CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
a.
B510755C13

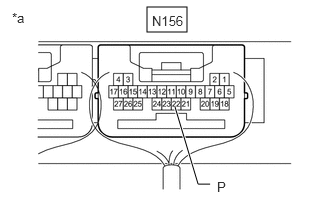

1.531,0.073 1.948,0.333 0.417,0.26 2.188,1.917 2.063,1.917 2.063,1.917 1.823,1.115 true 0.125,0.104 0.438,0.302 0.313,0.198 10 false *a 1.583,0.135 1.979,0.396 0.396,0.26 10 false N156 2.26,1.865 2.573,2.063 0.313,0.198 10 false P
*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N156-22 (P) - Other terminals and body ground Shift state park (P) → Shift state not park (P) 9 V or higher → 2.76 V or less



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

15.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SHIFT LOCK CONTROL UNIT ASSEMBLY)
15.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SHIFT LOCK CONTROL UNIT ASSEMBLY)
a.

Disconnect the N156 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the N161 shift lock control unit assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N156-22 (P) - N161-3 (P2) Always Below 1 Ω
N156-22 (P) or N161-3 (P2) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

16.CHECK SHIFT LOCK CONTROL UNIT ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.CHECK SHIFT LOCK CONTROL UNIT ASSEMBLY
a.
B498244C50

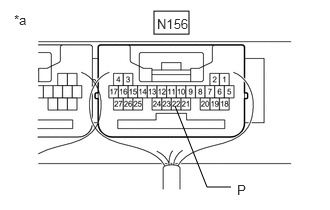

1.604,0.115 1.969,0.354 0.365,0.24 2.406,1.948 2.156,1.948 2.156,1.948 1.823,1.104 false 1.635,0.167 2.083,0.396 0.448,0.229 10 false N156 2.469,1.896 3.063,2.094 0.594,0.198 10 false P 0.146,0.125 0.74,0.323 0.594,0.198 10 false *a
*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly))


Reconnect the certification ECU (smart key ECU assembly) connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N156-22 (P) - Other terminals and body ground Shift state park (P) 9 V or higher



Result:
Proceed to
OK
NG



OK

REPLACE SHIFT LOCK CONTROL UNIT ASSEMBLY

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>REMOVAL


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
