RM35X0E _55 Steering _079313 STEERING COLUMN _0388799 STEERING COLUMN ASSEMBLY A

STEERING COLUMN STEERING COLUMN ASSEMBLY DISASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:: ·

When using a vise, place aluminum plates between the part and vise.

·

When using a vise, do not overtighten it.

PROCEDURE

Hide Display 89782 1.REMOVE TRANSPONDER KEY COIL (w/o Entry and Start System)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>TRANSPONDER KEY AMPLIFIER>REMOVAL201902,999999,_58,_078378,_0380051,RM100000001FRU6_01_0002,

Hide Display 45020B 2.REMOVE STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY (w/o Entry and Start System)

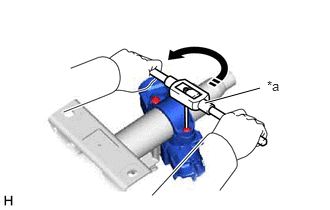

Using a 3 mm pin punch, mark the center of the tapered-head bolt.

Using a 3 to 4 mm drill bit, drill into the tapered-head bolt.

2.135,1.073 2.708,0.917 true 2.781,0.813 3.094,0.969 0.313,0.156 10 false *a

*a	Screw Extractor

Using a screw extractor, remove the bolt and steering column upper with switch bracket.

Hide Display 69057A 3.REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY (w/o Entry and Start System)

2.333,0.979 2.333,0.344 2.333,0.344 2.573,0.344 false 2.615,0.271 2.927,0.427 0.313,0.156 10 false *1 1.042,0.188 1.354,0.344 0.313,0.156 10 false *a 2.646,2.854 2.958,3.01 0.313,0.156 10 false *b 2.073,3.75 2.385,3.906 0.313,0.156 10 false *b

*1	ACC
*a	Push
*b	Pull

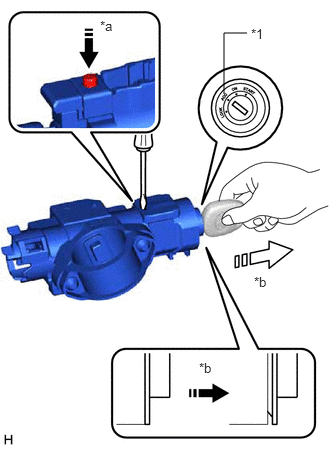

Turn the ignition switch to ACC.

Insert the tip of a screwdriver into the hole in the steering column upper bracket as shown in the illustration, and pull the ignition switch lock cylinder out until its claw comes into contact with the stopper of the steering column upper bracket.

NOTICE:: Pull the ignition switch lock cylinder assembly out until its claw comes into contact with the stopper of the steering column upper bracket assembly. Otherwise, the following procedure cannot be conducted properly.

Hide Display 84052 4.REMOVE UN-LOCK WARNING SWITCH ASSEMBLY (w/o Entry and Start System)

Click hereVehicle Interior>DOOR LOCK>UNLOCK WARNING SWITCH>REMOVAL201902,999999,_58,_078336,_0387724,RM100000001GZ1I_01_0002,

Hide Display 84450 5.REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (w/o Entry and Start System)

for 7GR-FKS: Click hereEngine / Hybrid System>7GR-FKS (STARTING)>IGNITION SWITCH>REMOVAL201902,999999,_51,_078665,_0382033,RM100000001G3I6_01_0003,

for 1GD-FTV: Click hereEngine / Hybrid System>1GD-FTV (STARTING)>IGNITION SWITCH>REMOVAL201902,999999,_51,_078666,_0382059,RM100000001G3KV_01_0003,

Hide Display 45020B 6.REMOVE STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY (w/ Entry and Start System)

Using a center punch, mark the center of the tapered-head bolt.

Using a 3 to 4 mm (0.119 to 0.157 in.) drill, drill a hole in the bolt.

Using a screw extractor, remove the bolt and steering lock actuator assembly from the steering column sub-assembly.
