THEFT DETERRENT / KEYLESS ENTRY  ENTRY AND START SYSTEM(for Start Function)  Power Source Mode does not Change to ON (ACC)


DESCRIPTION

If the engine switch is pressed with the electrical key transmitter sub-assembly in the cabin, the certification ECU (smart key ECU assembly) receives a signal and changes the power source mode.

Related Data List and Active Test Items
Problem Symptom Data List and Active Test
Power source mode does not change to on (ACC) but does change to on (IG)
Power Source Control
·

Power Supply Condition

·

ACC Relay Monitor



HINT:

Use this procedure to troubleshoot the malfunction that ACC mode of all the ECUs is not available.

When ACC mode of some ECUs is not available, check the ACC power source circuit related to the malfunctioning ECUs.


WIRING DIAGRAM

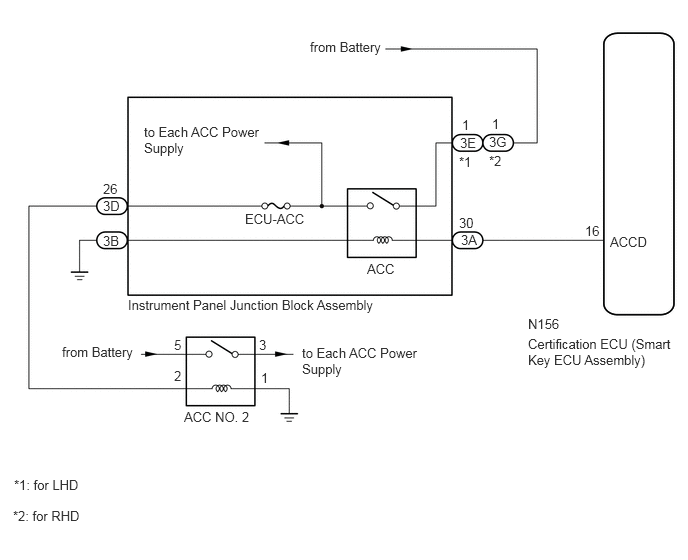

E421396E01
1.333,3.094 4.146,3.865 2.813,0.771 10 false Instrument Panel Junction Block Assembly 5.5,3.5 7.094,4.531 1.594,1.031 10 false Certification ECU (Smart Key ECU Assembly) 5.5,3.292 6.292,4.115 0.792,0.823 10 false N156 6.094,2.323 6.563,2.844 0.469,0.521 10 false 16 6.354,2.438 6.938,2.99 0.583,0.552 10 false ACCD 4.802,2.417 5.385,2.969 0.583,0.552 10 false 3A 4.781,2.24 5.365,2.792 0.583,0.552 10 false 30 4.792,1.406 5.375,1.958 0.583,0.552 10 false 3E 4.813,1.219 5.396,1.771 0.583,0.552 10 false 1 3.823,2.719 5.094,3.188 1.271,0.469 10 false ACC 2.552,2.198 3.823,2.667 1.271,0.469 10 false ECU-ACC 1.073,1.885 1.656,2.438 0.583,0.552 10 false 26 1.073,2.063 1.656,2.615 0.583,0.552 10 false 3D 1.073,2.427 1.656,2.979 0.583,0.552 10 false 3B 1.813,3.51 2.115,4.042 0.302,0.531 10 false 5 4.781,1.604 5.094,1.802 0.313,0.198 10 false *1 0.146,4.969 4.583,5.167 4.438,0.198 10 false *1: for LHD 0.135,5.292 1.885,5.75 1.75,0.458 10 false *2: for RHD 5.094,1.396 5.677,1.948 0.583,0.552 10 false 3G 5.094,1.594 5.406,1.792 0.313,0.198 10 false *2 5.125,1.208 5.708,1.76 0.583,0.552 10 false 1 3.229,0.406 4.823,1.438 1.594,1.031 10 false from Battery 1.5,1.292 2.75,2.51 1.25,1.219 10 false to Each ACC Power Supply 3.146,3.594 4.396,4.813 1.25,1.219 10 false to Each ACC Power Supply 0.646,3.583 2.24,4.615 1.594,1.031 10 false from Battery 1.917,4.26 3.188,4.729 1.271,0.469 10 false ACC NO. 2 1.813,3.833 2.115,4.365 0.302,0.531 10 false 2 2.719,3.854 3.021,4.385 0.302,0.531 10 false 1 2.698,3.51 3,4.042 0.302,0.531 10 false 3

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

Make sure that no DTCs are output. If any DTCs are output, proceed to Diagnostic Trouble Code Chart.

·

If the entry and start system (for Start Function) has been canceled, enable the system before performing troubleshooting.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>CUSTOMIZE PARAMETERS

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before replacing the certification ECU (smart key ECU assembly), refer to the Service Bulletin.

·

After completing repairs, confirm that the problem does not recur.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".



PROCEDURE

1.CHECK FOR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Entry&Start, Power Source Control / Trouble Codes.


e.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 125
Body Electrical > Power Source Control > Trouble Codes
50001 223

Result:
Result Proceed to
DTCs are not output A
Entry and start system (for Start Function) DTCs are output B



A

2.CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - POWER SUPPLY)

B

GO TO DIAGNOSTIC TROUBLE CODE CHART

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>DIAGNOSTIC TROUBLE CODE CHART


2.CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - POWER SUPPLY)
a.
E364057C13
1.469,0.208 1.885,0.448 0.417,0.24 1.469,0.49 1.885,0.729 0.417,0.24 0.146,0.115 0.458,0.271 0.313,0.156 10 false *a 1.583,0.24 1.896,0.396 0.313,0.156 10 false 3E 1.594,0.5 1.906,0.656 0.313,0.156 10 false 3G 1.979,0.271 2.292,0.427 0.313,0.156 10 false *A 2,0.531 2.313,0.688 0.313,0.156 10 false *B
*A for LHD
*B for RHD
*a Front view of wire harness connector
(to Instrument Panel Junction Block Assembly)


for LHD:

Disconnect the 3E instrument panel junction block assembly connectors.


b.

for RHD:

Disconnect the 3G instrument panel junction block assembly connectors.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
for LHD:
Tester Connection Condition Specified Condition
3E-1 - Body ground Always 11 to 14 V

for RHD:
Tester Connection Condition Specified Condition
3G-1 - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

3.INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

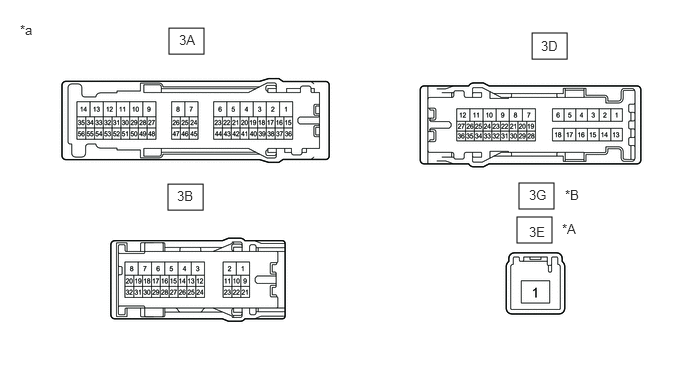

C421132C01
1.75,1.917 2.115,2.188 0.365,0.271 5.385,2.26 5.75,2.531 0.365,0.271 5.406,1.906 5.771,2.177 0.365,0.271 1.76,0.292 2.125,0.563 0.365,0.271 5.542,0.344 5.906,0.615 0.365,0.271 1.844,1.958 2.156,2.156 0.313,0.198 10 false 3B 5.51,2.333 5.823,2.531 0.313,0.198 10 false 3E 5.51,1.948 5.823,2.146 0.313,0.198 10 false 3G 1.865,0.333 2.177,0.531 0.313,0.198 10 false 3A 5.635,0.396 5.948,0.594 0.313,0.198 10 false 3D 5.854,2.302 6.167,2.5 0.313,0.198 10 false *A 5.885,1.948 6.198,2.146 0.313,0.198 10 false *B 0.208,0.229 0.521,0.427 0.313,0.198 10 false *a
*A for LHD *B for RHD
*a Component without harness connected
(Instrument Panel Junction Block Assembly) 		- -


a.

Remove the instrument panel junction block assembly.

for LHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL

for RHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL


b.

Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.


c.

Connect a positive (+) lead from the battery to terminal 3A-30.


d.

Connect a negative (-) lead from the battery to terminal 3B-3.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LHD:
Tester Connection Condition Specified Condition
3E-1 - 3D-26 Always Below 1 Ω


for RHD:
Tester Connection Condition Specified Condition
3G-1 - 3D-26 Always Below 1 Ω


Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (ACC NO. 2 RELAY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY, POWER SUPPLY AND BODY GROUND)

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

for LHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL

for RHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL


4.CHECK HARNESS AND CONNECTOR (ACC NO. 2 RELAY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY, POWER SUPPLY AND BODY GROUND)
a.

Disconnect the 3D instrument panel junction block assembly connector.


b.

Remove the ACC NO. 2 relay.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3D-26 - ACC NO. 2 relay installation terminal 2 Always Below 1 Ω
ACC NO. 2 relay installation terminal 1 - Body ground Always Below 1 Ω
3D-26 or ACC NO. 2 relay installation terminal 2 - Other terminals and body ground Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
ACC NO. 2 relay installation terminal 5 - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

5.INSPECT ACC NO. 2 RELAY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.INSPECT ACC NO. 2 RELAY
a.
C279145C29
2.031,0.625 1.677,0.385 false 2.604,0.677 2.917,0.469 false 2.385,1.135 2.875,1.135 false 2.448,1.635 2.906,1.635 false 0.24,0.667 0.396,0.865 0.156,0.198 10 false 3 1.188,0.677 1.344,0.875 0.156,0.198 10 false 5 0.24,1.198 0.396,1.396 0.156,0.198 10 false 1 1.188,1.219 1.375,1.417 0.188,0.198 10 false 2 2.99,0.333 3.146,0.531 0.156,0.198 10 false 1 1.552,0.25 1.708,0.448 0.156,0.198 10 false 2 2.979,1.073 3.135,1.271 0.156,0.198 10 false 5 3,1.563 3.156,1.76 0.156,0.198 10 false 3 0.26,0.167 0.458,0.375 0.198,0.208 10 false *1
*1 ACC NO. 2 Relay


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Battery voltage applied between terminals 1 and 2 Below 1 Ω
Battery voltage not applied between terminals 1 and 2 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

REPLACE ACC NO. 2 RELAY
