DESCRIPTION

If the entry lock and unlock functions do not operate for the front passenger door only, the request code may not be being transmitted from the front passenger door or the front door outside handle assembly (for Front Passenger Door) (touch sensor). If the entry functions for other doors operate properly, communication between the electrical key transmitter sub-assembly and door control receiver is normal. In this case, there may be a problem with request code transmission (communication between the certification ECU (smart key ECU assembly) and front door outside handle assembly (for Front Passenger Door) (electrical key antenna)), or there may be wave interference.

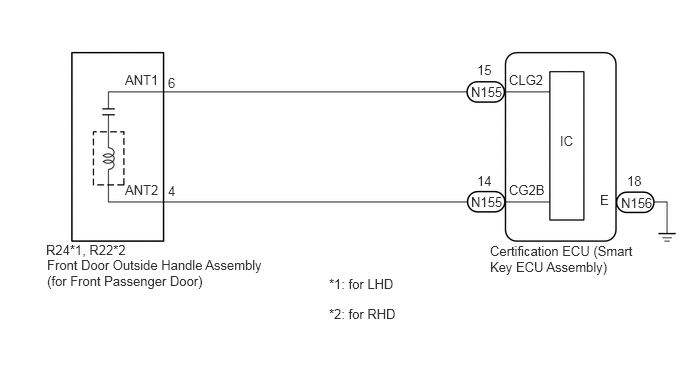

WIRING DIAGRAM

E402860E96
1.302,0.75 1.917,0.948 0.615,0.198 10 false ANT1 1.302,1.896 1.917,2.094 0.615,0.198 10 false ANT2 1.75,1.906 1.906,2.104 0.156,0.198 10 false 4 1.75,0.781 1.906,0.979 0.156,0.198 10 false 6 4.906,0.875 5.344,1.115 0.438,0.24 10 false N155 4.906,2.021 5.385,2.292 0.479,0.271 10 false N155 4.969,0.646 5.281,0.844 0.313,0.198 10 false 15 4.969,1.802 5.281,2 0.313,0.198 10 false 14 5.302,0.75 5.917,0.948 0.615,0.198 10 false CLG2 5.302,1.896 5.917,2.094 0.615,0.198 10 false CG2B 5.833,1.385 6.146,1.583 0.313,0.198 10 false IC 0.479,2.521 1.469,2.75 0.99,0.229 10 false R24*1, R22*2 0.49,2.677 2.792,3.385 2.302,0.708 10 false Front Door Outside Handle Assembly (for Front Passenger Door) 5.104,2.531 6.635,3.49 1.531,0.958 10 false Certification ECU (Smart Key ECU Assembly) 6.469,2.031 6.927,2.229 0.458,0.198 10 false N156 6.531,1.802 6.844,2 0.313,0.198 10 false 18 6.25,2 6.406,2.198 0.156,0.198 10 false E 3.427,2.875 4.417,3.104 0.99,0.229 10 false *1: for LHD 3.427,3.188 4.417,3.417 0.99,0.229 10 false *2: for RHD

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The entry and start system (for Entry Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

After repair, confirm that no DTCs are output.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.



HINT:
·

If the front passenger side door entry lock and unlock functions do not operate, the cause of the malfunction may be stored in the certification ECU (smart key ECU assembly).

·

If the cause of the malfunction is stored in the certification ECU (smart key ECU assembly), the following table is helpful in checking whether the malfunction was caused by wave interference.



Body Electrical > Entry&Start > Utility
Tester Display
Operation History
50005 125 52

PROCEDURE

1.CHECK POWER DOOR LOCK CONTROL SYSTEM
a.

When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>OPERATION CHECK

OK:

Door locks operate normally.



Result:
Proceed to
OK
NG



OK

2.CHECK FOR DTC

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK FOR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 125

Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

3.CHECK WAVE ENVIRONMENT

B

GO TO DIAGNOSTIC TROUBLE CODE CHART

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>DIAGNOSTIC TROUBLE CODE CHART


3.CHECK WAVE ENVIRONMENT
a.
for LHD:
B546806C01
0.979,0.938 1.292,1.094 0.313,0.156 10 false *a
*a Approximately 0.3 m (0.984 ft.)


for RHD:
B546805C01
2.594,0.927 2.906,1.083 0.313,0.156 10 false *a
*a Approximately 0.3 m (0.984 ft.)


Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the front door outside handle assembly (for Front Passenger Door) and perform an entry function check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK

HINT:
·

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the front door outside handle assembly (for Front Passenger Door).

·

When the electrical key transmitter sub-assembly is brought near the front door outside handle assembly (for Front Passenger Door), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.

·

If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

·

There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.

·

If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

·

When checking the operation of the entry lock function several times, it can be operated up to 2 times consecutively. To operate the function 3 times or more consecutively, the doors need to be unlocked once. However, this is only for the entry lock function. Other door lock operations, such as a wireless door lock operation, can be performed consecutively.




Result:
Result Proceed to
Entry function does not operate normally A
Entry function operates normally B



A

4.READ VALUE USING GTS (P-DOOR TOUCH SENSOR)

B

AFFECTED BY WAVE INTERFERENCE

4.READ VALUE USING GTS (P-DOOR TOUCH SENSOR)
a.
for LHD:
B546808C01
0.354,1.823 0.573,1.823 0.573,1.823 1.604,1.198 true 0.146,1.74 0.448,2.031 0.302,0.292 10 true *a
*a Unlock Sensor (Backside)


for RHD:
B546807C01
0.427,1.906 0.667,1.906 0.667,1.906 1.729,1.229 true 0.208,1.813 0.458,2.083 0.25,0.271 10 true *a
*a Unlock Sensor (Backside)


Turn the engine switch off.


b.

Turn the engine switch on (IG).


c.

Open and close the front passenger door.


d.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


e.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the front passenger door.


f.

Check that the LED of the electrical key transmitter sub-assembly blinks.


g.

Enter the following menus: Body Electrical / Entry&Start / Data List.


h.

Read the Data List according to the display on the GTS.


i.

Touch the unlock sensor on the backside of the front door outside handle assembly (for Front Passenger Door).

HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (a).


Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
P-Door Touch Sensor Front passenger door touch sensor (unlock sensor) OFF or ON OFF: Front passenger door touch sensor (unlock sensor) not touched
ON: Front passenger door touch sensor (unlock sensor) touched
·

Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
P-Door Touch Sensor
50003 125 9
OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly (for Front Passenger Door).



Result:
Proceed to
OK
NG



OK

5.READ VALUE USING GTS (P-DOOR TRIGGER SWITCH)

NG

7.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))
5.READ VALUE USING GTS (P-DOOR TRIGGER SWITCH)
a.
for LHD:
B546810C01
2.021,1.125 2.604,0.24 2.604,0.24 2.781,0.24 true 2.844,0.167 3.188,0.458 0.344,0.292 10 true *a
*a Lock Sensor


for RHD:
B546809C01
0.573,0.146 0.76,0.146 0.76,0.146 1.406,1.167 true 0.333,0.063 0.635,0.313 0.302,0.25 10 true *a
*a Lock Sensor


Turn the engine switch off.


b.

Turn the engine switch on (IG).


c.

Open and close the front passenger door.


d.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the front passenger door.


e.

Enter the following menus: Body Electrical / Entry&Start / Data List.


f.

Read the Data List according to the display on the GTS.


g.

Touch the lock sensor of the front door outside handle assembly (for Front Passenger Door).

HINT:
·

If the door does not lock even when touching the lock sensor, touch it with your palm.

·

When checking the operation of the lock sensor again, make sure to perform the procedure from step (a).



Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
P-Door Trigger Switch Front passenger door touch sensor (lock sensor) OFF or ON OFF: Front passenger door touch sensor (lock sensor) not touched
ON: Front passenger door touch sensor (lock sensor) touched
·

Displays whether the lock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is a lock sensor malfunction when the entry lock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
P-Door Trigger Switch
50003 125 13
HINT:

When checking the operation of the entry lock function several times, it can be operated up to 2 times consecutively. To operate the function 3 times or more consecutively, the doors need to be unlocked once. However, this is only for the entry lock function. Other door lock operations, such as a wireless door lock operation, can be performed consecutively.


OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly (for Front Passenger Door).



Result:
Proceed to
OK
NG



OK

6.CHECK KEY DIAGNOSTIC MODE

NG

7.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))
6.CHECK KEY DIAGNOSTIC MODE
a.

Enter the following menus: Body Electrical / Entry&Start / Utility / Communication Check(Key Diag Mode).


b.

Check the following antenna in key diagnostic mode.

Body Electrical > Entry&Start > Utility
Tester Display
Communication Check(Key Diag Mode)
50005 125 143

c.

Select either channel 1 or channel 2 and perform key diagnostic mode inspection for each channel.

i.
for LHD:
B546806C01
0.979,0.938 1.292,1.094 0.313,0.156 10 false *a
*a 0.7 to 1 m (2.30 to 3.28 ft.)


for RHD:
B546805C01
2.594,0.927 2.906,1.083 0.313,0.156 10 false *a
*a 0.7 to 1 m (2.30 to 3.28 ft.)


Check the electrical key antenna (for Front Passenger Door):

When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly (for Front Passenger Door), check that the buzzer sounds.

HINT:
·

Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.

·

If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.





Result:
Result Proceed to
Buzzer does not sound A
Buzzer sounds B



A

7.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))

B

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

7.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))
a.

Disconnect the N155 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the R24*1 or R22*2 front door outside handle assembly (for Front Passenger Door) connector.

*1: for LHD

*2: for RHD



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LHD:
Tester Connection Condition Specified Condition
N155-15 (CLG2) - R24-6 (ANT1) Always Below 1 Ω
N155-14 (CG2B) - R24-4 (ANT2) Always Below 1 Ω
N155-15 (CLG2) or R24-6 (ANT1) - Other terminals and body ground Always 10 kΩ or higher
N155-14 (CG2B) or R24-4 (ANT2) - Other terminals and body ground Always 10 kΩ or higher

for RHD:
Tester Connection Condition Specified Condition
N155-15 (CLG2) - R22-6 (ANT1) Always Below 1 Ω
N155-14 (CG2B) - R22-4 (ANT2) Always Below 1 Ω
N155-15 (CLG2) or R22-6 (ANT1) - Other terminals and body ground Always 10 kΩ or higher
N155-14 (CG2B) or R22-4 (ANT2) - Other terminals and body ground Always 10 kΩ or higher



d.

Reconnect the N155 certification ECU (smart key ECU assembly) connector.


Result:
Proceed to
OK
NG



OK

8.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO FRONT PASSENGER DOOR ELECTRICAL KEY ANTENNA)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO FRONT PASSENGER DOOR ELECTRICAL KEY ANTENNA)
a.
B551417C02
0.229,0.948 0.625,1.229 0.396,0.281 0.229,1.354 0.625,1.635 0.396,0.281 0.927,1.823 1.469,1.417 true 2.531,1.792 1.885,1.417 true 0.198,0.156 0.51,0.354 0.313,0.198 10 false *a 0.302,1.417 0.615,1.615 0.313,0.198 10 false R22 0.313,1.01 0.625,1.208 0.313,0.198 10 false R24 0.708,0.99 1.021,1.188 0.313,0.198 10 false *A 0.708,1.427 1.021,1.625 0.313,0.198 10 false *B 0.219,3.292 0.625,3.479 0.406,0.188 10 false GND 0.219,2.24 0.531,2.438 0.313,0.198 10 false *b 2.458,1.823 2.927,2.021 0.469,0.198 10 false ANT1 0.729,1.854 1.229,2.063 0.5,0.208 10 false ANT2
*A for LHD
*B for RHD
*a Front view of wire harness connector
(to Front Door Outside Handle Assembly (for Front Passenger Door))
*b Waveform 1


Using an oscilloscope, check the waveform.

OK:
for LHD:
Tester Connection Condition Tool Setting Specified Condition
R24-6 (ANT1) - R24-4 (ANT2) Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


5 V/DIV., 100 ms/DIV. Pulse generation
(See waveform 1)

for RHD:
Tester Connection Condition Tool Setting Specified Condition
R22-6 (ANT1) - R22-4 (ANT2) Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


5 V/DIV., 100 ms/DIV. Pulse generation
(See waveform 1)


*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK


Result:
Proceed to
OK
NG



OK

9.CHECK ENTRY LOCK OPERATION

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

9.CHECK ENTRY LOCK OPERATION
a.

Connect all connectors and check that the function operates normally.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK


Result:
Result Proceed to
Entry function does not operate normally A
Entry function operates normally B



A

10.REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)

B

END (CONNECTOR WAS NOT CONNECTED SECURELY)

10.REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)
a.

Replace the front door outside handle assembly (for Front Passenger Door) with a new one or the front door outside handle assembly (for Driver Door) if it is functioning properly.

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY


Result:
Proceed to
NEXT



NEXT

11.CHECK ENTRY LOCK OPERATION
11.CHECK ENTRY LOCK OPERATION
a.

Check that the function operates normally.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK


Result:
Result Proceed to
Entry function operates normally A
Entry function does not operate normally B



A

END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR) WAS DEFECTIVE)

B

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
