RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0381942 STEREO JACK ADAPTER ASSEMBLY(for RHD) A

AUDIO / VIDEO  STEREO JACK ADAPTER ASSEMBLY(for RHD)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 1 stereo jack adapter assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Bench Seat Type)


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 67911B 3.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH (for Bench Seat Type)

Hide 67913B 4.REMOVE FRONT DOOR SCUFF PLATE RH (for Bench Seat Type)

Hide 55631A 6.REMOVE NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER (for Bench Seat Type)

Hide 55011A 7.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Bench Seat Type)

Hide 55432D 12.REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (for Bench Seat Type)

Hide 55044C 13.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Bench Seat Type)

Hide 55433B 14.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL (for Bench Seat Type)

Hide 73900 15.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for Bench Seat Type)

Hide 55632B 19.REMOVE NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT (for Bench Seat Type)

Hide 55012A 20.REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Bench Seat Type)

Hide 55438A 23.REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER (for Bench Seat Type)

Hide 58839A 24.REMOVE CONSOLE BOX HOLE COVER (for Bench Seat Type, w/ Console Tray)

Hide 58802E 25.INSTALL FRONT CONSOLE BOX SUB-ASSEMBLY (for Bench Seat Type, w/ Console Tray)

Hide 86190C 30.REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

a.

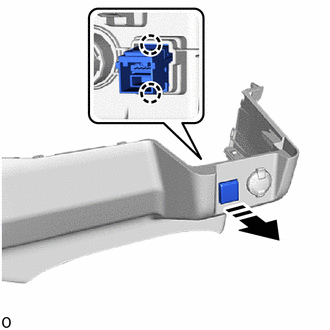

for Bench Seat Type:

i.
E416311C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 1 stereo jack adapter assembly as shown in the illustration.



b.

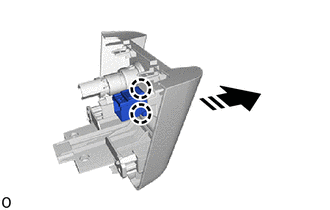

for Separate Seat Type:

i.
E416313C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 1 stereo jack adapter assembly as shown in the illustration.
