TELEMATICS  COMMUNICATION TELEMATICS BOX  INSTALLATION


PROCEDURE

Hide 86713D 1.INSTALL MAYDAY WIRE (for Wagon)

a.
E416992

Connect the connector to install the mayday wire.


Hide 867E1 2.INSTALL COMMUNICATION TELEMATICS BOX (for Wagon)

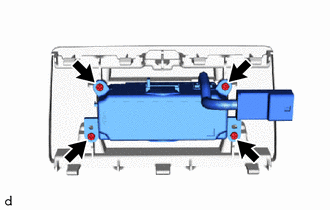

a.
E416991

Install the communication telematics box with 4 screws.

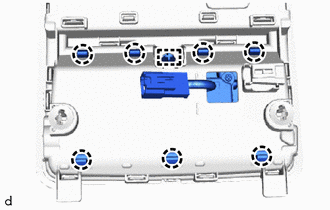

b.
E416990

Attach the claw and guide to install the communication telematics box with cover.

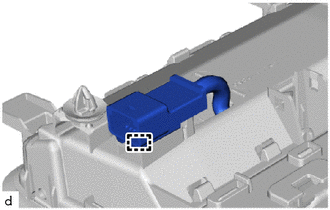

c.
E416989

Attach the clamp.

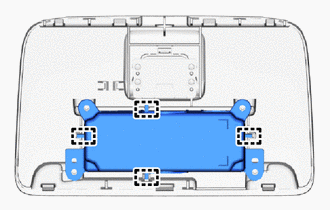

Hide 867E1 3.INSTALL COMMUNICATION TELEMATICS BOX (except Wagon)

a.
E410018

Attach the guide to install the communication telematics box.

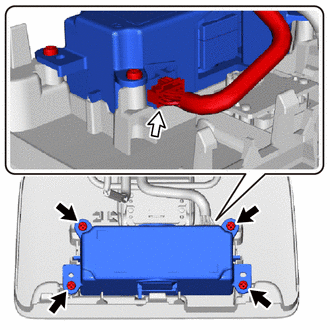

b.
E410017C02
0,0 0,0 false
V100135

Screw
V100136

Connector


Install the 4 screws and connect the connector.

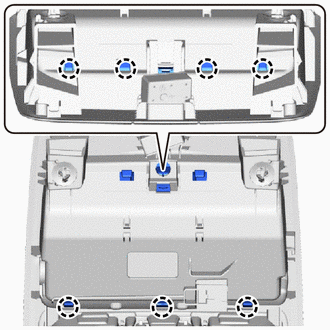

c.
E410016

Attach the claw to install the communication telematics box with cover.

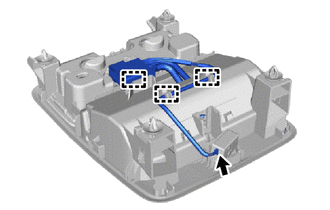

d.
E410015

Attach the clamp and connect the connector.
