RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396483 PERSONAL LIGHT(for Wagon) A

LIGHTING (INT)  PERSONAL LIGHT(for Wagon)  INSTALLATION


PROCEDURE

Hide 81260A 1.INSTALL MAP LIGHT ASSEMBLY

a.

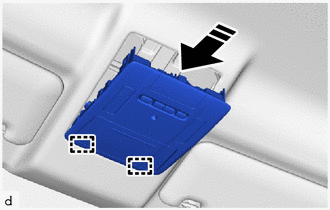

E421144C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


b.

Connect each connector.


c.

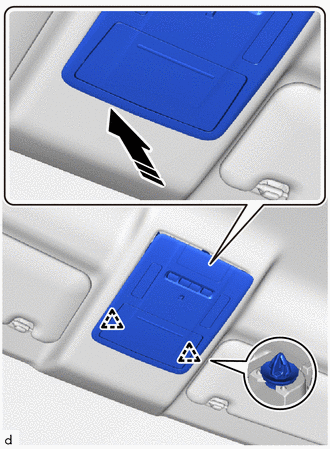

E421145C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip as shown in the illustration.


d.

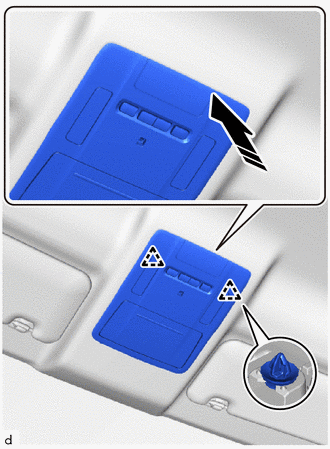

E421146C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip to install the map light assembly as shown in the illustration.
