TELEMATICS  COMMUNICATION TELEMATICS BOX  REMOVAL


PROCEDURE

Hide 867E1 2.REMOVE COMMUNICATION TELEMATICS BOX (except Wagon)

a.
E410015

Disconnect the connector and detach the clamp.


b.
E410016

Detach the claw and remove the communication telematics box with cover.


c.
E410017C01
0,0 0,0 false
V100135

Screw
V100136

Connector

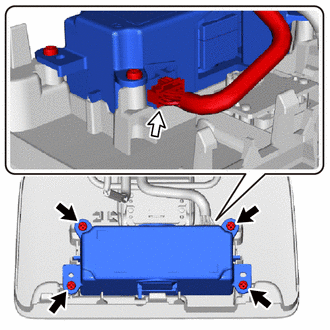

Remove the 4 screws and disconnect the connector.


d.
E410018

Detach the guide and remove the communication telematics box.


Hide 867E1 3.REMOVE COMMUNICATION TELEMATICS BOX (for Wagon)

a.
E416989

Detach the clamp.


b.
E416990

Detach the claw and guide and remove the communication telematics box with cover.


c.
E416991

Remove the 4 screws and communication telematics box.


Hide 86713D 4.REMOVE MAYDAY WIRE (for Wagon)

a.
E416992

Disconnect the connector and remove the mayday wire.
