RM35X0E _56 Audio / Visual / Telematics _078380 TELEMATICS _0380049 TELEPHONE MICROPHONE ASSEMBLY A

TELEMATICS TELEPHONE MICROPHONE ASSEMBLY REMOVAL

PROCEDURE

Hide Display 81260A 1.REMOVE MAP LIGHT ASSEMBLY

except Wagon:

for Wagon:

Hide Display 86730A 2.REMOVE TELEPHONE MICROPHONE ASSEMBLY

except Wagon:

Disconnect the connector.

ii.

Detach the claw and remove the telephone microphone assembly.

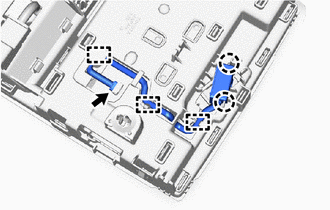

for Wagon:

Disconnect the connector.

ii.

Detach the claw and guide and remove the telephone microphone assembly.
