RM35X0E _58 Vehicle Interior _078601 SEAT _0396329 POWER SEAT SWITCH(for Rear Seat) A

SEAT  POWER SEAT SWITCH(for Rear Seat)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row.



PROCEDURE

Hide 84923 1.INSTALL REAR POWER SEAT SWITCH

a.

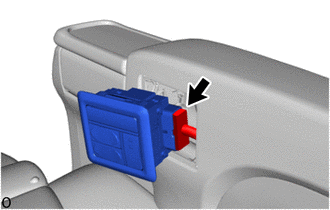

B548110

Connect the connector.


b.

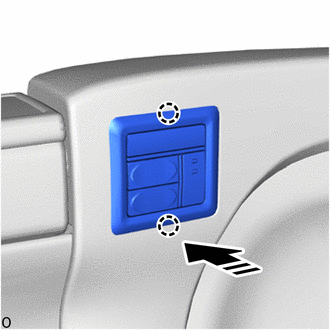

B548109C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear power seat switch as shown in the illustration.
