SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for Power Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73240 1.INSTALL FRONT SEAT INNER BELT ASSEMBLY LH

a.

Install the front seat belt anchor plate.


b.

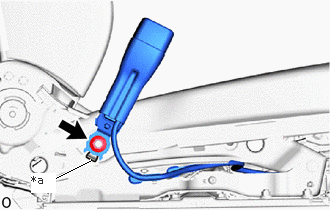

B546906C01
0.521,1.885 0.948,1.667 true 0.323,1.802 0.583,2.01 0.26,0.208 10 true *a
*a Protruding Part


Install the front seat inner belt assembly LH with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly LH to overlap the protruding part.



c.

Attach the claw and clamp.

B551307


d.

Connect the connector.


e.
B546903

Attach the hook.


Hide 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
