NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  B15D3  Stereo Component Amplifier Disconnected


DESCRIPTION

The radio and display receiver assembly and stereo component amplifier assembly are connected via AVC-LAN communication line.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15D3 Stereo Component Amplifier Disconnected When either of the following conditions is met:
·

Stereo component amplifier assembly is/was not connected while the ignition switch is/was ACC or ON

·

Communication between the master unit and the stereo component amplifier assembly is not possible when the engine is started.


·

Stereo component amplifier assembly power source circuit

·

AVC-LAN circuit between radio and display receiver assembly and stereo component amplifier assembly

·

Stereo component amplifier assembly

·

Radio and display receiver assembly

·

Harness or connector



HINT:

The radio and display receiver assembly is the master unit.

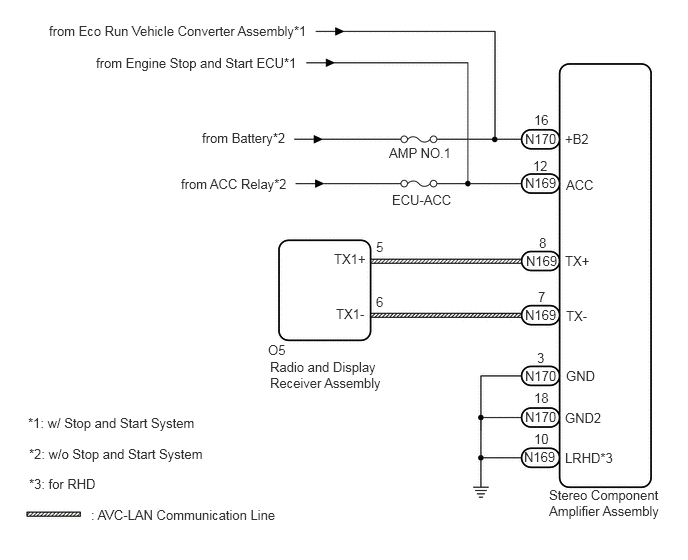

WIRING DIAGRAM

E418274E01
4.052,1.51 5.281,1.708 1.229,0.198 10 false AMP NO.1 4.083,2 5.313,2.198 1.229,0.198 10 false ECU-ACC 1.885,1.833 3.115,2.031 1.229,0.198 10 false from ACC Relay*2 2.104,1.354 3.865,1.698 1.76,0.344 10 false from Battery*2 5.885,1.365 7.115,1.563 1.229,0.198 10 false +B2 5.896,1.844 7.125,2.042 1.229,0.198 10 false ACC 5.896,3.833 7.125,4.031 1.229,0.198 10 false GND 5.885,4.271 7.115,4.469 1.229,0.198 10 false GND2 5.885,2.635 6.344,2.833 0.458,0.198 10 false TX+ 5.896,3.208 6.354,3.406 0.458,0.198 10 false TX- 3.479,2.615 3.938,2.813 0.458,0.198 10 false TX1+ 3.5,3.188 3.958,3.385 0.458,0.198 10 false TX1- 2.813,3.74 4.031,4.146 1.219,0.406 10 false Radio and Display Receiver Assembly 0.948,5.281 3.344,5.625 2.396,0.344 10 false : AVC-LAN Communication Line 5.719,5.073 6.938,5.531 1.219,0.458 10 false Stereo Component Amplifier Assembly 5.594,3.646 6.823,3.844 1.229,0.198 10 false 3 5.563,4.063 6.792,4.26 1.229,0.198 10 false 18 5.552,1.646 6.781,1.844 1.229,0.198 10 false 12 5.563,1.167 6.792,1.365 1.229,0.198 10 false 16 5.604,3.01 6.833,3.208 1.229,0.198 10 false 7 5.615,2.448 6.844,2.646 1.229,0.198 10 false 8 3.917,2.49 5.146,2.688 1.229,0.198 10 false 5 3.917,3.063 5.146,3.26 1.229,0.198 10 false 6 0.51,0.24 4,0.542 3.49,0.302 10 false from Eco Run Vehicle Converter Assembly*1 0.292,4.323 2.271,4.594 1.979,0.271 10 false *1: w/ Stop and Start System 0.302,4.646 2.51,4.958 2.208,0.313 10 false *2: w/o Stop and Start System 5.469,1.365 6.698,1.563 1.229,0.198 10 false N170 5.469,1.823 6.698,2.021 1.229,0.198 10 false N169 2.792,3.563 4.01,3.969 1.219,0.406 10 false O5 1,0.573 4.49,0.875 3.49,0.302 10 false from Engine Stop and Start ECU*1 5.479,2.635 6.708,2.833 1.229,0.198 10 false N169 5.469,3.198 6.698,3.396 1.229,0.198 10 false N169 5.469,3.833 6.698,4.031 1.229,0.198 10 false N170 5.469,4.26 6.698,4.458 1.229,0.198 10 false N170 5.458,4.677 6.688,4.875 1.229,0.198 10 false N169 5.885,4.688 7.115,4.885 1.229,0.198 10 false LRHD*3 0.302,4.958 2.51,5.271 2.208,0.313 10 false *3: for RHD 5.563,4.49 6.792,4.688 1.229,0.198 10 false 10

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:

-

A communication malfunction DTC may be stored.

-

The radio and display receiver assembly may not operate normally.




HINT:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION


PROCEDURE

1.CHECK DTC
a.

If DTC B15C3 is output, perform troubleshooting for DTC B15C3 first.

Result:
Result Proceed to
DTC B15C3 is not output. A
DTC B15C3 is output. B




A

2.CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

B

GO TO DTC B15C3

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>B15C3


2.CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)
a.

Check that optional components (including associated wiring) which generate radio waves are not installed.

Result:
Result Proceed to
Optional components (including associated wiring) are installed. A
Optional components (including associated wiring) are not installed. B


HINT:
·

Electrical noise from radio waves generated by optional components or the wiring for those components may affect AVC-LAN communication.

·

This DTC may be stored when an AVC-LAN communication error occurs due to electrical noise.





A

3.REMOVE OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

B

4.CHECK DTC
3.REMOVE OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)
a.

Remove optional components (including associated wiring).

NOTICE:

Do not remove optional components or associated wiring without the permission of the customer.



Result:
Proceed to
NEXT



NEXT

4.CHECK DTC
4.CHECK DTC
a.

Clear the DTCs.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Clear DTCs
50002 212

b.

Recheck for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Trouble Codes
50001 212
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

5.CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY POWER SOURCE)
5.CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY POWER SOURCE)
a.

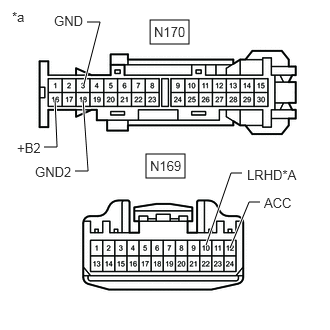

E382108C09
1.563,0.208 1.969,0.458 0.406,0.25 1.521,1.604 1.927,1.854 0.406,0.25 0.458,1.531 0.594,1.531 0.594,1.531 0.573,1.042 true 0.781,1.781 0.917,1.781 0.917,1.781 0.865,1.042 true 2.708,2.104 2.594,2.104 2.594,2.104 2.396,2.583 true 0.906,0.229 1.042,0.229 1.042,0.229 0.875,0.875 true 2.521,1.802 2.406,1.802 2.406,1.802 2.146,2.552 true 0.125,0.094 0.302,0.26 0.177,0.167 10 false *a 1.604,0.25 2.021,0.448 0.417,0.198 10 false N170 0.563,0.135 0.927,0.302 0.365,0.167 10 false GND 0.177,1.458 0.5,1.625 0.323,0.167 10 false +B2 0.365,1.708 0.781,1.875 0.417,0.167 10 false GND2 2.75,2.031 3.104,2.198 0.354,0.167 10 false ACC 2.573,1.74 3.167,1.958 0.594,0.219 10 false LRHD*A 1.563,1.646 1.979,1.844 0.417,0.198 10 false N169
*A for RHD
*a Front view of wire harness connector
(to Stereo Component Amplifier Assembly)


Disconnect stereo component amplifier assembly connectors.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N170-3 (GND) - Body ground Always Below 1 Ω
N170-18 (GND2) - Body ground Always Below 1 Ω
N169-10 (LRHD) - Body ground* Always Below 1 Ω


*: for RHD



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N170-16 (+B2) - N170-3 (GND) Ignition switch off 10.5 to 16 V*1
11 to 14 V*2
N169-12 (ACC) - N170-3 (GND) Ignition switch ACC 10.5 to 16 V*1
11 to 14 V*2


*1: w/ Stop and Start System

*2: w/o Stop and Start System


Result:
Proceed to
OK
NG




OK

6.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER ASSEMBLY)
a.

Disconnect the O5 radio and display receiver assembly connector.


b.

Disconnect the N169 stereo component amplifier assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O5-5 (TX1+) - N169-8 (TX+) Always Below 1 Ω
O5-6 (TX1-) - N169-7 (TX-) Always Below 1 Ω
O5-5 (TX1+) or N169-8 (TX+) - Body ground Always 10 kΩ or higher
O5-6 (TX1-) or N169-7 (TX-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY
a.

Replace the stereo component amplifier assembly with a new or known good one.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>STEREO COMPONENT AMPLIFIER>REMOVAL


b.

Clear the DTCs.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Clear DTCs
50002 212

c.

Recheck for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Trouble Codes
50001 212
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

END (STEREO COMPONENT AMPLIFIER ASSEMBLY IS DEFECTIVE)

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
