RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396104 FOG LIGHT ASSEMBLY(for Halogen Fog Light) A

LIGHTING (EXT) FOG LIGHT ASSEMBLY(for Halogen Fog Light) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 81220 1.INSTALL FOG LIGHT ASSEMBLY LH

Attach the guide to set the fog light assembly LH.

Install the 2 screws.

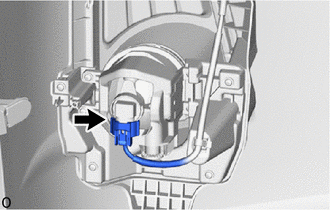

Connect the connector.

Hide Display 2.INSTALL FRONT BUMPER ASSEMBLY

Hide Display 3.ADJUST FOG LIGHT AIMING
