RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389937 REAR SEAT OUTER BELT ASSEMBLY(for Full-trim) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Full-trim) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

HINT:: Only remove the last 2 rows.

a.

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

b.

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381332,RM100000001FZL1,

c.

for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381334,RM100000001FZLB,

Hide Display 67935 2.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0027,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0027,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0027,

Hide Display 73570B 3.REMOVE REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

a.

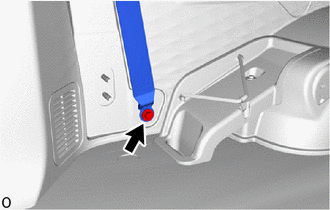

B541717

Remove the bolt and floor anchor of the rear seat outer belt assembly.

Hide Display 58777A 4.REMOVE TOOL BAG HOLDER (for LH Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0052,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0052,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0052,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0052,

Hide Display 62640M 5.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0031,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0031,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0031,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0031,

Hide Display 73570B 6.REMOVE REAR SEAT OUTER BELT ASSEMBLY

a.

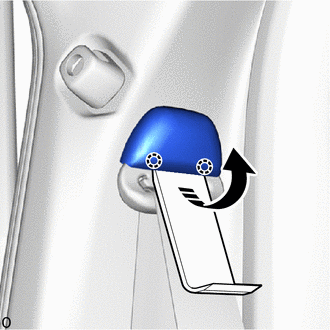

B541718C01

0,0 0,0 false

V113147

Open in this Direction

Using moulding remover D, detach the claw and open the cover as shown in the illustration.

b.

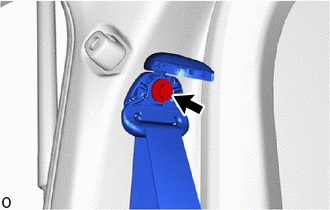

B541720

Remove the bolt.

c.

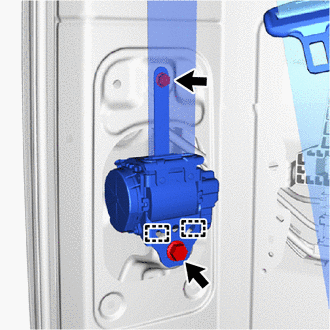

B541721

Remove the 2 bolts.

d.

Detach the guide and remove the rear seat outer belt assembly.
