RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389934 REAR SEAT OUTER BELT ASSEMBLY(for Semi-trim) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Semi-trim) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

for Folding Type:

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt:

Hide Display 73570B 2.REMOVE REAR SEAT OUTER BELT ASSEMBLY

Remove the bolt and floor anchor of the rear seat outer belt assembly.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

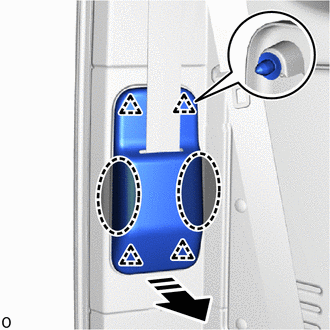

Place your hands at the position and pull in the removal direction shown in the illustration and detach the clip and remove the cover.

0,0 0,0 false

Open in this Direction

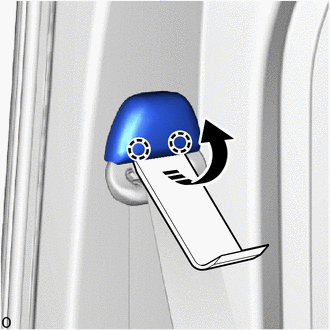

Using moulding remover D, detach the claw and open the cover as shown in the illustration.

Remove the bolt.

Remove the 2 bolts.

Detach the guide and remove the rear seat outer belt assembly.
