SEAT BELT  REAR CENTER SEAT OUTER BELT ASSEMBLY(for Van)  INSTALLATION

73320A 1.INSPECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

73320A 2.INSTALL NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

a.

Attach the guide.

b.

Install the No. 1 seat 3-point type belt assembly LH with the nut.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

c.

Attach the hook.

d.

Install the wiring harness clamp.

e.

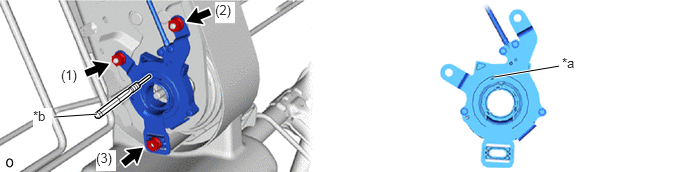

Temporarily install the reclining sensor of No. 1 seat 3 point type belt assembly LH to the No. 1 seatback spring assembly LH with the 3 nuts.

5.146,0.802 5.823,0.688 true 1.01,1.188 0.563,1.219 true 5.854,0.573 6.052,0.792 0.198,0.219 10 true *a 0.635,0.698 0.844,0.917 0.208,0.219 10 false (1) 2.24,0.021 2.448,0.24 0.208,0.219 10 true (2) 0.344,1.125 0.542,1.344 0.198,0.219 10 true *b 1,1.563 1.208,1.781 0.208,0.219 10 true (3)

*a

Zero Point Alignment Hole

*b

Pin Punch 3

f.

Insert pin punch 3 into the zero point alignment hole of the No. 1 seat 3 point type belt assembly LH.

g.

Tighten the 3 nuts in the order shown in the illustration.

Torque:

3.5 N*m (36 kgf*cm, 31 in.*lbf)

h.

0,0 0,0 false

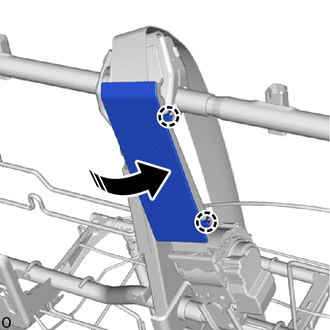

Close in this Direction

Attach the claw and close the cover as shown in the illustration.

i.

Install the 3 screws.

71802C 3.INSTALL RECLINING ADJUSTER COVER SUB-ASSEMBLY LH

4.INSTALL REAR SEATBACK COVER WITH PAD LH

71930Q 5.INSTALL REAR SEAT HEADREST SUPPORT ASSEMBLY

73375 6.INSTALL REAR SEAT SHOULDER BELT COVER LH

72996J 7.INSTALL NO. 2 REAR SEATBACK COVER

72996H 8.INSTALL REAR SEATBACK COVER (w/ Center Bracket)

73320A 9.INSTALL NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)

a.

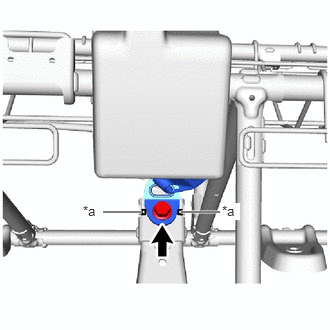

1.073,2.208 1.479,2.208 true 1.885,2.208 2.292,2.208 true 0.865,2.115 1.052,2.292 0.188,0.177 10 false *a 2.313,2.115 2.5,2.292 0.188,0.177 10 true *a

*a	Protruding Part

Install the anchor of No. 1 seat 3 point type belt assembly LH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the No. 1 seat 3 point type belt assembly LH to overlap the protruding part.

b.

Check that the ELR locks.

i.

With the No. 1 seat 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.

10.INSTALL SEAT CUSHION COVER WITH PAD

73340 11.INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY LH

73330 12.INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY RH

71834J 13.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

71833K 14.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

72526L 15.INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

72525N 16.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

72329G 17.INSTALL REAR NO. 2 SEAT ADJUSTER BOLT COVER

72329F 18.INSTALL REAR SEAT ADJUSTER BOLT COVER

19.INSTALL REAR SEAT ASSEMBLY

20.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)
