RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389156 REAR CENTER SEAT OUTER BELT ASSEMBLY(for Van) G

SEAT BELT  REAR CENTER SEAT OUTER BELT ASSEMBLY(for Van)  INSPECTION


PROCEDURE

Hide 73320A 1.INSPECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

a.

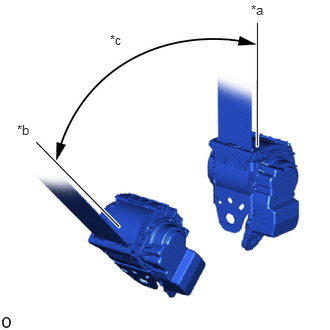

B541173C01
0.177,1.271 0.49,1.469 0.313,0.198 10 false *b 2.615,0.021 2.927,0.219 0.313,0.198 10 false *a 1.146,0.333 1.458,0.531 0.313,0.198 10 false *c
*a Unlock
*b Lock
*c 45°


Before installing the No. 1 seat 3 point type belt assembly LH, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the No. 1 seat 3 point type belt assembly LH.
