HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Manual Air Conditioning System)  B1422  Compressor Lock Sensor Circuit


DESCRIPTION

The ECM sends the engine speed signal to the air conditioning amplifier assembly via CAN communication.

The air conditioning amplifier assembly reads the difference between compressor speed and engine speed. When the difference becomes too large, the air conditioning amplifier assembly determines that the compressor is locked, and turns the magnet clutch assembly off.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory
B1422 Compressor Lock Sensor Circuit Open or short in A/C lock sensor circuit
·

Diagnosis condition: Cooler compressor assembly operating

·

Malfunction status: Open or short in cooler compressor circuit

·

Detection time: None (Present malfunction), continuously for 3 seconds or more (Past malfunction)


·

Compressor with magnet clutch assembly

·

Harness or connector

·

Air conditioning amplifier assembly


Memorized

HINT:

The air conditioning amplifier assembly stores the DTC of the respective malfunction if it has occurred for the period of time indicated in the parentheses.

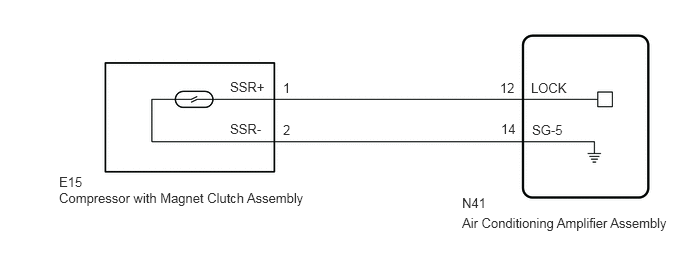

WIRING DIAGRAM

E416690E01
4.813,2.031 5.271,2.229 0.458,0.198 10 false N41 4.813,2.24 7.052,2.51 2.24,0.271 10 false Air Conditioning Amplifier Assembly 5.531,0.833 5.99,1.031 0.458,0.198 10 false LOCK 5.542,1.271 6,1.469 0.458,0.198 10 false SG-5 5.208,0.833 5.667,1.031 0.458,0.198 10 false 12 5.219,1.26 5.677,1.458 0.458,0.198 10 false 14 2.948,0.833 3.406,1.031 0.458,0.198 10 false 1 2.948,1.271 3.406,1.469 0.458,0.198 10 false 2 0.615,1.813 1.073,2.01 0.458,0.198 10 false E15 0.615,1.979 3.542,2.25 2.927,0.271 10 false Compressor with Magnet Clutch Assembly 2.396,0.823 2.854,1.021 0.458,0.198 10 false SSR+ 2.396,1.26 2.854,1.458 0.458,0.198 10 false SSR-

PROCEDURE

1.CHECK HARNESS AND CONNECTOR (COMPRESSOR WITH MAGNET CLUTCH ASSEMBLY - AIR CONDITIONING AMPLIFIER ASSEMBLY)
a.

Disconnect the E15 compressor with magnet clutch assembly connector.


b.

Disconnect the N41 air conditioning amplifier assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E15-1 (SSR+) - N41-12 (LOCK) Always Below 1 Ω
E15-2 (SSR-) - N41-14 (SG-5) Always Below 1 Ω
E15-1 (SSR+) - E15-2 (SSR-) Always 10 kΩ or higher
E15-1 (SSR+) or N41-12 (LOCK) - Other terminals and body ground Always 10 kΩ or higher
E15-2 (SSR-) or N41-14 (SG-5) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.REPLACE COMPRESSOR WITH MAGNET CLUTCH ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.REPLACE COMPRESSOR WITH MAGNET CLUTCH ASSEMBLY
a.

Replace the compressor with magnet clutch assembly.

for 7GR-FKS:Vehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for 7GR-FKS)>REMOVAL

for 1GD-FTV:Vehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for 1GD-FTV)>REMOVAL



Result:
Proceed to
NEXT



NEXT

3.CHECK FOR DTC
