HEATING / AIR CONDITIONING COMPRESSOR(for 7GR-FKS) REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: If metal dust is produced inside the compressor assembly with magnet clutch, it could cause a clog in the modulator. If any metal dust comes out, replace the cooler dryer inside the modulator also.; Click hereVehicle Interior>HEATING / AIR CONDITIONING>CONDENSER>DISASSEMBLY201902,999999,_58,_079316,_0384888,RM100000001GIUC,

Hide Display 1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Hide Display 51406A 2.REMOVE NO. 2 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 2 Engine Under Cover Sub-assembly)

Hide Display 52618 3.REMOVE LOWER FRONT BUMPER ABSORBER

Hide Display 51405A 4.REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

Hide Display 16361A 5.REMOVE FAN AND GENERATOR V BELT

Hide Display 51108C 6.REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

Hide Display 88703 7.DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

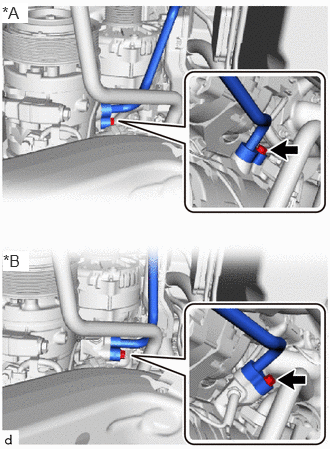

0.021,0.031 0.292,0.24 0.271,0.208 12 true *A 0.031,2.615 0.302,2.823 0.271,0.208 12 true *B

*A	for Others
*B	for Middle East

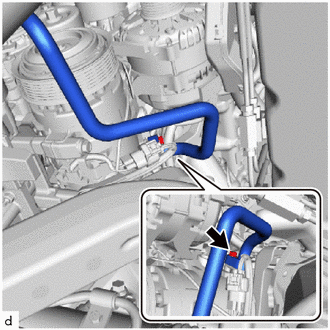

Remove the bolt and disconnect the discharge hose sub-assembly from the compressor assembly with magnet clutch.

Remove the O-ring from the discharge hose sub-assembly.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

Hide Display 88704 8.DISCONNECT SUCTION HOSE SUB-ASSEMBLY

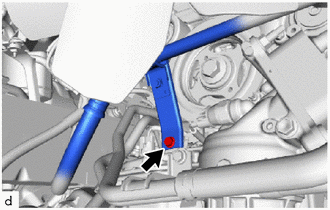

Remove the bolt and suction hose bracket.

Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with magnet clutch.

Remove the O-ring from the suction hose sub-assembly.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

Hide Display 88320 9.REMOVE COMPRESSOR ASSEMBLY WITH MAGNET CLUTCH

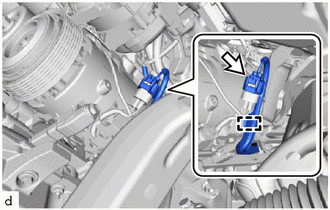

Detach the clamp.

Disconnect the connector.

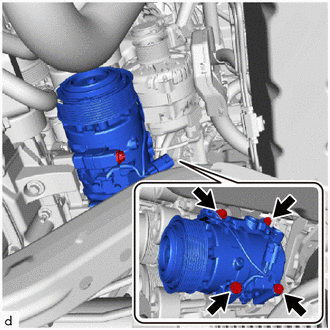

Remove the 4 bolts and compressor assembly with magnet clutch.
