THEFT DETERRENT / KEYLESS ENTRY  IMMOBILISER SYSTEM  Key Cannot be Registered


DESCRIPTION

A maximum of 5 key ID codes and 3 sub key ID codes can be registered.

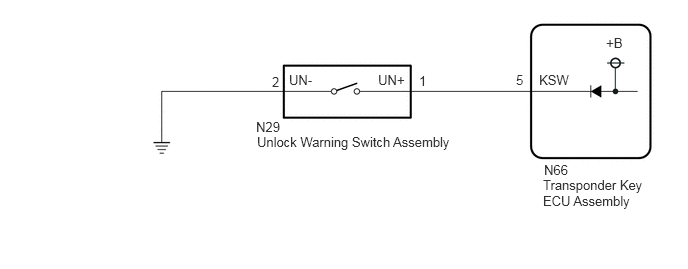

WIRING DIAGRAM

E318141E32
5.615,0.75 6.073,0.948 0.458,0.198 10 false KSW 5.375,0.75 5.833,0.948 0.458,0.198 10 false 5 5.656,1.844 6.75,2.302 1.094,0.458 10 false Transponder Key ECU Assembly 5.667,1.688 6.125,1.885 0.458,0.198 10 false N66 2.667,1.24 3.125,1.438 0.458,0.198 10 false N29 2.677,1.396 5.104,1.708 2.427,0.313 10 false Unlock Warning Switch Assembly 2.833,0.771 3.292,0.969 0.458,0.198 10 false 2 4.365,0.76 4.823,0.958 0.458,0.198 10 false 1 6.313,0.365 6.771,0.563 0.458,0.198 10 false +B 3.01,0.75 3.344,0.927 0.333,0.177 10 false UN- 3.938,0.75 4.271,0.927 0.333,0.177 10 false UN+

CAUTION / NOTICE / HINT

NOTICE:
·

Before replacing the transponder key ECU assembly or door control transmitter assembly, refer to the Service Bulletin.

·

Make sure that no DTCs are output. If any DTCs are output, proceed to the Diagnostic Trouble Code Chart.

·

After completing repairs, confirm that the problem does not recur.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".



PROCEDURE

1.CHECK REGISTRATION MODE
a.

Check that the system enters registration mode.

OK:

System enters registration mode.



Result:
Proceed to
OK
NG



OK

2.CHECK COMBINATION METER ASSEMBLY (SECURITY INDICATOR LIGHT) OPERATION

NG

5.INSPECT UNLOCK WARNING SWITCH ASSEMBLY
2.CHECK COMBINATION METER ASSEMBLY (SECURITY INDICATOR LIGHT) OPERATION
a.

In registration mode, insert the door control transmitter assembly into the ignition key cylinder and check the combination meter assembly (security indicator light).

HINT:

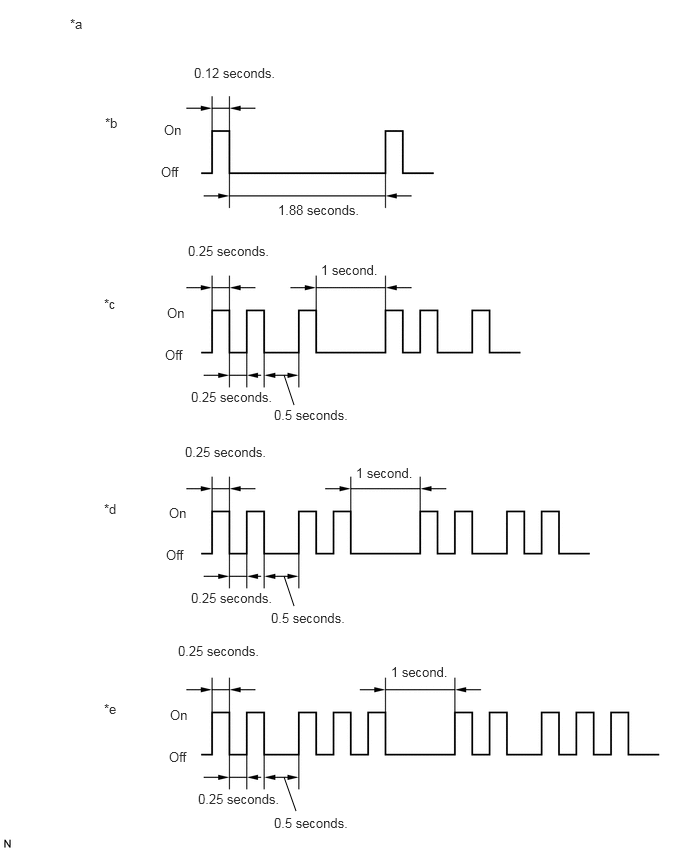

If the new key ID code registration fails, code 2-1 will be output through the security light. Trying to re-register an already registered door control transmitter assembly will cause code 2-2 to be output when the door control transmitter assembly is inserted. If the number of registered key ID codes exceeds the maximum limit, code 2-3 will be output through the combination meter assembly (security indicator light). The output details are shown in the following illustration.


B111593C06
2.958,3.906 3.063,4.219 false 2.958,6 3.063,6.313 false 2.958,8.094 3.083,8.448 false 1.094,1.198 2.677,2.063 1.583,0.865 10 false *b 1.083,3.083 1.917,3.302 0.833,0.219 10 false *c 1.083,5.219 1.917,5.448 0.833,0.229 10 false *d 1.083,7.302 1.906,7.542 0.823,0.24 10 false *e 2.021,0.677 3.167,0.917 1.146,0.24 10 false 0.12 seconds. 2.896,2.104 3.802,2.365 0.906,0.26 10 false 1.88 seconds. 1.708,1.271 2,1.51 0.292,0.24 10 false On 1.677,1.708 2.115,1.927 0.438,0.219 10 false Off 1.74,3.177 2,3.438 0.26,0.26 10 false On 1.719,3.615 2.115,3.813 0.396,0.198 10 false Off 1.76,5.26 2.073,5.521 0.313,0.26 10 false On 1.729,5.698 2.115,5.938 0.385,0.24 10 false Off 1.958,2.531 3.115,2.75 1.156,0.219 10 false 0.25 seconds. 1.99,4.052 3.031,4.25 1.042,0.198 10 false 0.25 seconds. 2.854,4.24 4,4.417 1.146,0.177 10 false 0.5 seconds. 3.344,2.729 4.323,3 0.979,0.271 10 false 1 second. 1.771,7.365 2.083,7.594 0.313,0.229 10 false On 1.76,7.802 2.156,8.021 0.396,0.219 10 false Off 1.927,4.625 2.875,4.833 0.948,0.208 10 false 0.25 seconds. 3.708,4.844 4.49,5.083 0.781,0.24 10 false 1 second. 1.99,6.146 2.969,6.417 0.979,0.271 10 false 0.25 seconds. 2.823,6.354 3.917,6.5 1.094,0.146 10 false 0.5 seconds. 1.854,6.698 2.896,6.917 1.042,0.219 10 false 0.25 seconds. 2.063,8.24 3.104,8.417 1.042,0.177 10 false 0.25 seconds. 4.073,6.917 4.833,7.167 0.76,0.25 10 false 1 second. 2.854,8.49 3.75,8.75 0.896,0.26 10 false 0.5 seconds. 0.729,0.167 1.583,0.51 0.854,0.344 10 false *a
*a Combination Meter Assembly (Security Indicator Light) *b Normal (Immobiliser system is operating normally)
*c Code 2-1 *d Code 2-2
*e Code 2-3 - -



Result:
Result Proceed to
Code 2-1 or Code 2-3 is output A
Code 2-2 is output B



A

3.READ VALUE USING GTS (TRANSPONDER M-CODE)

B

END (REGISTERED DOOR CONTROL TRANSMITTER ASSEMBLY WAS USED)

3.READ VALUE USING GTS (TRANSPONDER M-CODE)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Immobiliser / Data List.


e.

Read the Data List according to the display on the GTS.

Body Electrical > Immobiliser > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Transponder M-code Number of registered master keys Min. : 0, Max. : 15 Number of registered master keys displayed -
Body Electrical > Immobiliser > Data List
Tester Display
Transponder M-code
50003 260 19

Result:
Result Proceed to
8 is displayed for "Transponder M-code" A
Values are other than above B



A

MAXIMUM NUMBER OF DOOR CONTROL TRANSMITTER ASSEMBLIES ALREADY REGISTERED

B

4.KEY REGISTRATION
4.KEY REGISTRATION
a.

Refer to the table below to determine if additional door control transmitter assemblies can be registered.

Number of Door Control Transmitter Assemblies Registered Proceed to
0 New key ID code registration
1 to 7 Additional key ID code registration


b.

Check if an additional door control transmitter assembly can be registered.

OK:

Additional door control transmitter assembly can be registered.



Result:
Proceed to
OK
NG



OK

END (DOOR CONTROL TRANSMITTER ASSEMBLY MALFUNCTION)

NG

REPLACE TRANSPONDER KEY ECU ASSEMBLY

5.INSPECT UNLOCK WARNING SWITCH ASSEMBLY
a.

Remove the unlock warning switch assembly.

Click hereVehicle Interior>DOOR LOCK>UNLOCK WARNING SWITCH>REMOVAL


b.

Inspect the unlock warning switch assembly.

Click hereVehicle Interior>DOOR LOCK>UNLOCK WARNING SWITCH>INSPECTION


Result:
Proceed to
OK
NG



OK

6.CHECK HARNESS AND CONNECTOR (UNLOCK WARNING SWITCH ASSEMBLY - TRANSPONDER KEY ECU ASSEMBLY AND BODY GROUND)

NG

REPLACE UNLOCK WARNING SWITCH ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>UNLOCK WARNING SWITCH>REMOVAL


6.CHECK HARNESS AND CONNECTOR (UNLOCK WARNING SWITCH ASSEMBLY - TRANSPONDER KEY ECU ASSEMBLY AND BODY GROUND)
a.

Disconnect the N66 transponder key ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N29-1 (UN+) - N66-5 (KSW) Always Below 1 Ω
N29-2 (UN-) - Body ground Always Below 1 Ω
N29-1 (UN+) or N66-5 (KSW) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE TRANSPONDER KEY ECU ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
