Vehicle Interior
_078336
DOOR LOCK
_0387724
UNLOCK WARNING SWITCH
A
DOOR LOCK UNLOCK WARNING SWITCH REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure below is for LHD vehicles.
PROCEDURE
45287
1.REMOVE LOWER STEERING COLUMN COVER
84052
2.REMOVE UNLOCK WARNING SWITCH ASSEMBLY
a.
Insert the key into the ignition key cylinder.
b.

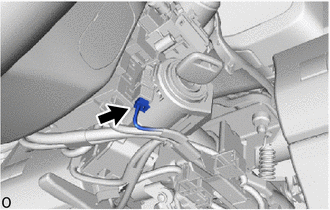

Disconnect the connector.
c.
0,0 0,0
false
|
Remove in this Direction |

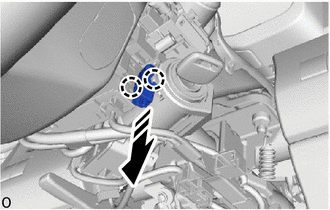

Detach the claw and remove the unlock warning switch assembly as shown in the illustration.
