AXLE AND DIFFERENTIAL  REAR AXLE SHAFT(for Rear Drum Brake)  INSTALLATION

1.25,2.375 1.333,2 true 1.042,2.083 1.333,2 1.333,2 1.458,2 true 1.49,1.917 1.813,2.083 0.323,0.167 10 false SST 1.25,3.104 1.573,3.271 0.323,0.167 10 false *a

*a

Depth

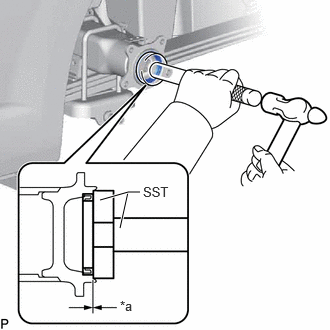

Using SST and a hammer, tap in a new rear axle shaft oil seal LH.

SST

09950-60021  (09951-00770)
09950-70010  (09951-07150)

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

0.667,3.01 0.667,2.76 true 1.927,3.031 2.146,3.229 0.219,0.198 10 false *a 0.542,3.042 0.844,3.24 0.302,0.198 10 false SST

*a	Torque Wrench Fulcrum Length

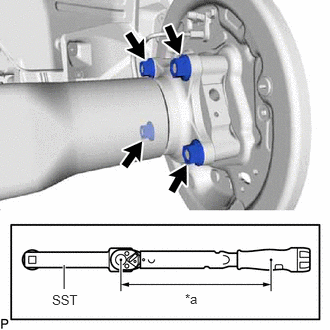

Install the rear axle shaft with backing plate with the 4 nuts.

Torque:

Specified tightening torque : 60 N*m (612 kgf*cm, 44 ft.*lbf)

SST

09961-01270

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201902,999999,_V1,_078841,_0382392,RM100000001GTX7,

·

When using SST (fulcrum length of 200 mm (7.874 in.)) + torque wrench (fulcrum length of 255 mm (10.039 in.)): 33.6 N*m (343 kgf*cm, 25 ft.*lbf)

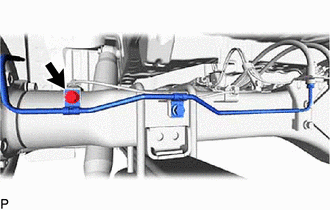

Connect the rear speed sensor to the rear axle housing with the bolt.

Torque:

8.5 N*m (87 kgf*cm, 75 in.*lbf)

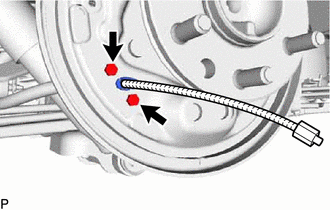

Connect the No. 3 parking brake cable assembly with the 2 bolts.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

2.875,2.896 2.792,2.896 2.792,2.896 2.792,2.646 false 1.76,2.958 2.073,3.115 0.313,0.156 10 false *a 2.927,2.802 3.24,3 0.313,0.198 10 false *1

*1	Union Nut Wrench
*a	Torque Wrench Fulcrum Length

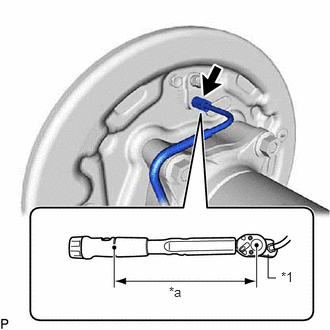

Using a union nut wrench, connect the rear brake tube to the rear axle shaft with backing plate.

Torque:

Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:

·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.378 in.)): 13.4 N*m (137 kgf*cm, 10 ft.*lbf)

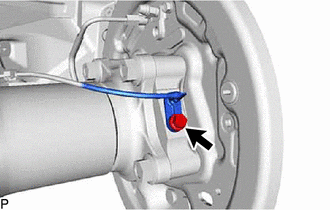

Install the brake tube bolt.

Torque:

19.5 N*m (199 kgf*cm, 14 ft.*lbf)
