RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0384720 ROOF WINDOW FIX GLASS A

WINDOW / GLASS ROOF WINDOW FIX GLASS REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the tilt roof glass sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Airbag System)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201902,201906,_V1,_078672,_0387105,RM100000001GV7N,201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201902,201906,_V1,_078672,_0387106,RM100000001H6FR,201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 63349A 2.REMOVE REAR ROOF HEADLINING GARNISH

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201902,201906,_58,_078375,_0380060,RM100000001FZ64_02_0027,201906,202208,_58,_078375,_0380060,RM100000001IXV1_02_0027,202208,999999,_58,_078375,_0380060,RM1000000024I16_02_0027,

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0062,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0062,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0062,

Hide Display 63201C 3.REMOVE TILT ROOF GLASS SUB-ASSEMBLY

NOTICE:: ·

Be sure to replace the tilt roof glass sub-assembly with a new one.

·

When separating the tilt roof glass sub-assembly, be careful not to damage the paint or interior and exterior ornaments.

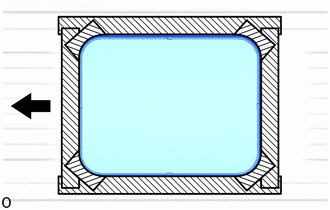

0,0 0,0 false

	Protective Tape
	Front Side

Apply protective tape to the area around the installation position of the tilt roof glass sub-assembly on the vehicle body to prevent it from being scratched.

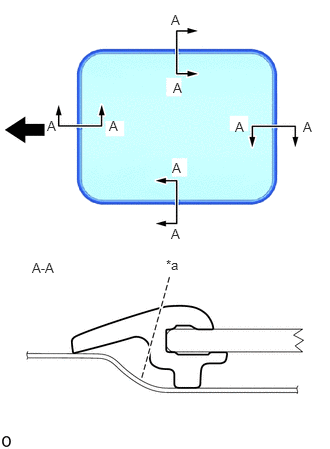

0.333,2.708 0.792,2.906 0.458,0.198 10 false A-A 0.49,1.229 0.646,1.427 0.156,0.198 10 false A 1.135,1.229 1.292,1.427 0.156,0.198 10 false A 1.792,1.667 1.948,1.865 0.156,0.198 10 false A 2.448,1.24 2.604,1.438 0.156,0.198 10 false A 1.802,0.833 1.958,1.031 0.156,0.198 10 false A 1.781,0.125 1.938,0.323 0.156,0.198 10 false A 3.156,1.24 3.313,1.438 0.156,0.198 10 false A 1.781,2.354 1.938,2.552 0.156,0.198 10 false A 1.729,2.677 1.885,2.875 0.156,0.198 10 false *a

*a	Cut
	Front Side

Using a knife, cut off the moulding as shown in the illustration.

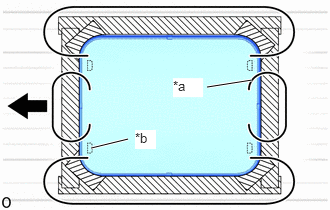

0.948,1.542 1.333,1.448 true 2.625,0.833 2.156,0.906 true 1.802,0.813 2.115,1.01 0.313,0.198 10 true *a 1.406,1.354 1.625,1.552 0.219,0.198 10 true *b

*a	Piano Wire
*b	Clip
	Front Side

Pass a piano wire between the vehicle body and tilt roof glass sub-assembly from the interior.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

Cut off the adhesive by pulling the piano wire around the tilt roof glass sub-assembly.

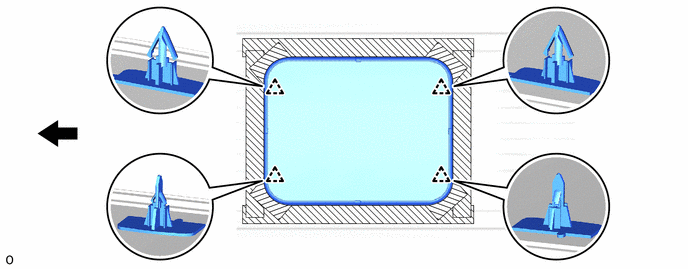

Install the suction cups to the tilt roof glass sub-assembly.

Using suction cups, detach the clip and remove the tilt roof glass sub-assembly.

0,0 0,0 false

Front Side

NOTICE:: ·

Do not to drop the tilt roof glass sub-assembly.

·

Be sure to replace the tilt roof glass sub-assembly with a new one.
