RM35X0E _53 Suspension _078876 FRONT SUSPENSION _0384535 FRONT STABILIZER BAR A

FRONT SUSPENSION FRONT STABILIZER BAR INSTALLATION

PROCEDURE

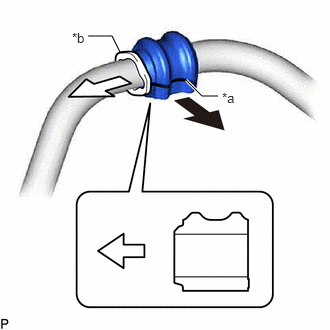

Hide Display 48815E 1.INSTALL FRONT NO. 1 STABILIZER BAR BUSHING LH

0.917,0.375 1.167,0.375 1.167,0.375 1.25,0.542 false 1.938,0.833 2.104,1 2.104,1 2.271,1 true 2.313,0.938 2.646,1.188 0.333,0.25 10 false *a 0.75,0.313 1.083,0.563 0.333,0.25 10 false *b

*a	Cutout
*b	Stopper Ring
	Front of the Vehicle
	Inside of the Vehicle

Install the front No. 1 stabilizer bar bushing LH to the front stabilizer bar as shown in the illustration.

NOTICE:: ·

Install the front No. 1 stabilizer bar bushing LH so that the cutout is facing the front of the vehicle.

·

Install the front No. 1 stabilizer bar bushing LH onto the front stabilizer bar so that the stopper ring of the front stabilizer bar faces the inside of the vehicle.

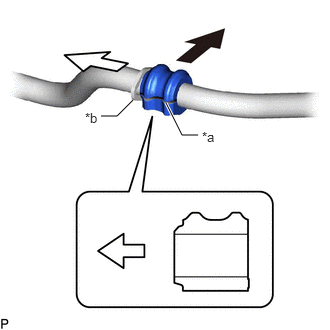

Hide Display 48815D 2.INSTALL FRONT NO. 1 STABILIZER BAR BUSHING RH

1.052,1.208 1.219,1.208 1.219,1.208 1.385,1.042 false 1.729,1.073 1.896,1.406 1.896,1.406 2.063,1.406 true 2.104,1.344 2.604,1.594 0.5,0.25 10 false *a 0.885,1.146 1.302,1.479 0.417,0.333 10 false *b

*a	Cutout
*b	Stopper Ring
	Front of the Vehicle
	Inside of the Vehicle

Install the front No. 1 stabilizer bar bushing RH to the front stabilizer bar as shown in the illustration.

NOTICE:: ·

Install the front No. 1 stabilizer bar bushing RH so that the cutout is facing the rear of the vehicle.

·

Install the front No. 1 stabilizer bar bushing RH onto the front stabilizer bar so that the stopper ring of the front stabilizer bar faces the inside of the vehicle.

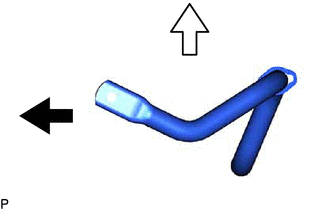

Hide Display 48811 3.INSTALL FRONT STABILIZER BAR

0,0 0,0 false

	Front of the Vehicle
	Upper Side of the Vehicle

Install the front stabilizer bar with the 2 front stabilizer bar bushings to the front frame assembly as shown in the illustration.

Hide Display 48829A 4.INSTALL FRONT NO. 1 STABILIZER BRACKET LH

2.26,0.74 1.844,1.073 1.844,1.073 1.677,1.073 true 1.5,1.01 1.833,1.26 0.333,0.25 10 false *a 1.333,1.406 1.5,1.573 0.167,0.167 10 true A 2.094,2.865 2.26,3.031 0.167,0.167 10 true B

*a	Arrow
	Front of the Vehicle

Install the front No. 1 stabilizer bracket LH to the front frame assembly with the 2 bolts.

Torque:: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

NOTICE:: ·

Make sure to install the front No. 1 stabilizer bracket LH with its arrow facing the front of the vehicle.

·

Temporarily tighten the bolt (A) and (B), and then fully tighten the 2 bolts in the order of (A) and (B).

Hide Display 48824A 5.INSTALL FRONT NO. 1 STABILIZER BRACKET RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 6.INSTALL ENGINE ASSEMBLY

for 7GR-FKS with Manual Transmission:

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201902,201906,_51,_078603,_0381343,RM100000001FZPD,201906,202107,_51,_078603,_0381343,RM100000001J10V,202107,202310,_51,_078603,_0381343,RM100000001XZUR,202310,999999,_51,_078603,_0381343,RM100000002G639,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201902,201906,_51,_079219,_0384428,RM100000001GGNC,201906,202005,_51,_079219,_0384428,RM100000001IW73,202005,202107,_51,_079219,_0384428,RM100000001M30V,202107,202310,_51,_079219,_0384428,RM100000001WWCO,202310,999999,_51,_079219,_0384428,RM100000002G5CP,

Hide Display 7.INSTALL AUTOMATIC TRANSMISSION ASSEMBLY

for 7GR-FKS with Automatic Transmission:

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,202107,_52,_078741,_0382312,RM100000001G48T,202107,202310,_52,_078741,_0382312,RM100000001WUCM,202310,999999,_52,_078741,_0382312,RM100000002G5DQ,

Hide Display 48810 8.INSTALL FRONT STABILIZER LINK ASSEMBLY LH

Install the front stabilizer link assembly LH to the front stabilizer bar and front shock absorber assembly with the 2 nuts.

Torque:: 128 N*m (1305 kgf*cm, 94 ft.*lbf)

NOTICE:: Do not damage the boot of the ball joint.

HINT:: If the ball joint turns together with the nut, use an 8 mm hexagon socket wrench to hold the stud bolt.

Hide Display 48820B 9.INSTALL FRONT STABILIZER LINK ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.
