POWER DISTRIBUTION
_0384098
INTEGRATION RELAY
A
POWER DISTRIBUTION INTEGRATION RELAY INSTALLATION
PROCEDURE
82641
1.INSTALL NO. 1 INTEGRATION RELAY
a.

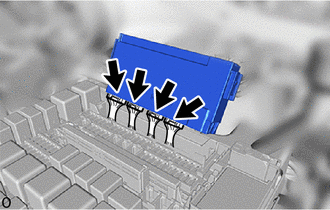

Connect the 4 connectors.
b.
0,0 0,0
false
|
Install in this Direction |

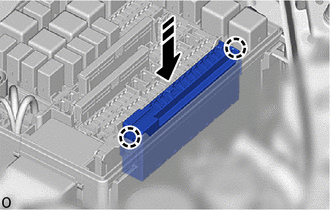

Attach the claw and install the No. 1 integration relay.
82662A
2.INSTALL NO. 1 RELAY BLOCK COVER
a.
0,0 0,0
false
|
|
Install in this Direction |

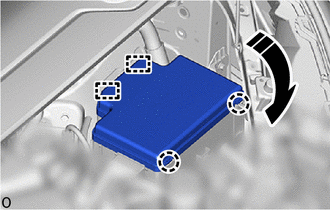

Attach the claw and guide and install the No. 1 relay block cover.
3.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
·
·
4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
