7GR-FKS ENGINE CONTROL SFI SYSTEM P020113 Cylinder 1 Injector "A" Circuit Open P020213 Cylinder 2 Injector "A" Circuit Open P020313 Cylinder 3 Injector "A" Circuit Open P020413 Cylinder 4 Injector "A" Circuit Open P020513 Cylinder 5 Injector "A" Circuit Open P020613 Cylinder 6 Injector "A" Circuit Open P062D13 Fuel Injector Driver Circuit Performance Bank 1 Circuit Open
DESCRIPTION
The D-4S system has two fuel injection systems. One is an in-cylinder direct injection system that directly injects pressurized fuel into the combustion chamber. The other is an intake port injection system. The ECM determines which fuel injection system to use in accordance with the engine conditions. The direct injection system uses an injector driver (EDU) built into the ECM to rapidly operate the fuel injector assemblies (for direct injection). It converts injection request signals from the ECM to high-voltage and high-current injector-drive signals that drive the fuel injector assemblies (for direct injection).
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P020113 | Cylinder 1 Injector "A" Circuit Open | Either of following conditions is met (1 trip detection logic):
·
Short to +B in No. 1 fuel injector assembly (for direct injection) circuit for 40 times or more. ·
Open or short to ground in No. 1 fuel injector assembly (for direct injection) circuit for 20 times or more. |
·
Open or short in fuel injector assembly (for direct injection) circuit ·
Fuel injector assembly (for direct injection) ·
INJ relay ·
ECM |
Comes on | DTC stored | SAE Code: P0201 |
| P020213 | Cylinder 2 Injector "A" Circuit Open | Either of following conditions is met (1 trip detection logic):
·
Short to +B in No. 2 fuel injector assembly (for direct injection) circuit for 40 times or more. ·
Open or short to ground in No. 2 fuel injector assembly (for direct injection) circuit for 20 times or more. |
·
Open or short in fuel injector assembly (for direct injection) circuit ·
Fuel injector assembly (for direct injection) ·
INJ relay ·
ECM |
Comes on | DTC stored | SAE Code: P0202 |
| P020313 | Cylinder 3 Injector "A" Circuit Open | Either of following conditions is met (1 trip detection logic):
·
Short to +B in No. 3 fuel injector assembly (for direct injection) circuit for 40 times or more. ·
Open or short to ground in No. 3 fuel injector assembly (for direct injection) circuit for 20 times or more. |
·
Open or short in fuel injector assembly (for direct injection) circuit ·
Fuel injector assembly (for direct injection) ·
INJ relay ·
ECM |
Comes on | DTC stored | SAE Code: P0203 |
| P020413 | Cylinder 4 Injector "A" Circuit Open | Either of following conditions is met (1 trip detection logic):
·
Short to +B in No. 4 fuel injector assembly (for direct injection) circuit for 40 times or more. ·
Open or short to ground in No. 4 fuel injector assembly (for direct injection) circuit for 20 times or more. |
·
Open or short in fuel injector assembly (for direct injection) circuit ·
Fuel injector assembly (for direct injection) ·
INJ relay ·
ECM |
Comes on | DTC stored | SAE Code: P0204 |
| P020513 | Cylinder 5 Injector "A" Circuit Open | Either of following conditions is met (1 trip detection logic):
·
Short to +B in No. 5 fuel injector assembly (for direct injection) circuit for 40 times or more. ·
Open or short to ground in No. 5 fuel injector assembly (for direct injection) circuit for 20 times or more. |
·
Open or short in fuel injector assembly (for direct injection) circuit ·
Fuel injector assembly (for direct injection) ·
INJ relay ·
ECM |
Comes on | DTC stored | SAE Code: P0205 |
| P020613 | Cylinder 6 Injector "A" Circuit Open | Either of following conditions is met (1 trip detection logic):
·
Short to +B in No. 6 fuel injector assembly (for direct injection) circuit for 40 times or more. ·
Open or short to ground in No. 6 fuel injector assembly (for direct injection) circuit for 20 times or more. |
·
Open or short in fuel injector assembly (for direct injection) circuit ·
Fuel injector assembly (for direct injection) ·
INJ relay ·
ECM |
Comes on | DTC stored | SAE Code: P0206 |
| P062D13 | Fuel Injector Driver Circuit Performance Bank 1 Circuit Open | Open or short in all fuel injector assembly (for direct injection) circuits for 60 times or more (1 trip detection logic). | ·
Open or short in fuel injector assembly (for direct injection) circuit ·
Fuel injector assembly (for direct injection) ·
INJ relay ·
ECM |
Comes on | DTC stored | SAE Code: P062D |
MONITOR DESCRIPTION
The fuel injection sequence occurs in numerical order from No. 1 to No. 6.
The ECM monitors the Injector Driver (EDU) at all times. If drivers or fuel injector assemblies are malfunctioning, the EDU sends fuel injector assembly operation condition signals (fail signals) to the ECM. When the ECM receives the signals, the ECM stops the fuel injection control of the appropriate cylinders, cuts voltage to the appropriate INJ relay, and illuminates the MIL.
MONITOR STRATEGY
| Required Sensors/Components | Fuel injector assembly (for direct injection)
ECM (injector driver) |
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine [A].
Idle the engine for 15 seconds or more [B].
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P020113, P020213, P020313, P020413, P020513, P020613 or P062D13.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system has a malfunction.
·If the judgment result is INCOMPLETE, perform steps [B] through [C] again.

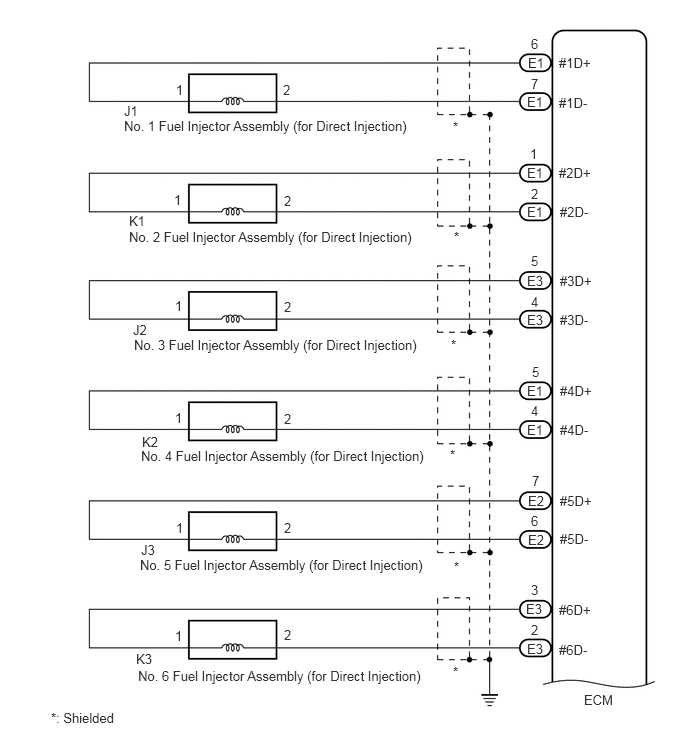

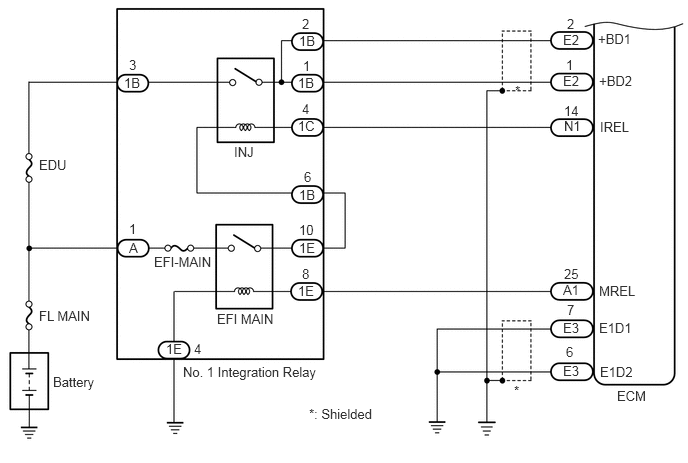

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
-
Inspect the fuses for circuits related to this system before performing the following procedure.
- HINT:
- ·
If the current from the D INJ relay is cut because DTC P062D13 is stored, DTC P123513 will be stored even if the fuel pump assembly (for high pressure side) is normal.
·Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTC P020113, P020213, P020313, P020413, P020513 or P020613 is output A 3 or more of the following DTCs are output: P062D13, P020113, P020213, P020313, P020413, P020513 and P020613 B P062D13 is output
A
B
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition E1-6 (#1D+) - E1-7 (#1D-) 20°C (68°F) 1.74 to 2.04 Ω E1-1 (#2D+) - E1-2 (#2D-) 20°C (68°F) 1.74 to 2.04 Ω E3-5 (#3D+) - E3-4 (#3D-) 20°C (68°F) 1.74 to 2.04 Ω E1-5 (#4D+) - E1-4 (#4D-) 20°C (68°F) 1.74 to 2.04 Ω E2-7 (#5D+) - E2-6 (#5D-) 20°C (68°F) 1.74 to 2.04 Ω E3-3 (#6D+) - E3-2 (#6D-) 20°C (68°F) 1.74 to 2.04 Ω E1-6 (#1D+) or E1-7 (#1D-) - Body ground and other terminals Always 1 MΩ or higher E1-1 (#2D+) or E1-2 (#2D-) - Body ground and other terminals Always 1 MΩ or higher E3-5 (#3D+) or E3-4 (#3D-) - Body ground and other terminals Always 1 MΩ or higher E1-5 (#4D+) or E1-4 (#4D-) - Body ground and other terminals Always 1 MΩ or higher E2-7 (#5D+) or E2-6 (#5D-) - Body ground and other terminals Always 1 MΩ or higher E3-3 (#6D+) or E3-2 (#6D-) - Body ground and other terminals Always 1 MΩ or higher
- HINT:
-
The standard values shown are fuel injector assembly (for direct injection) resistance values.
- Result:
Proceed to OK NG
OK
NG
Check the resistance of the fuel injector assembly (for direct injection).
- HINT:
-
Perform "Inspection After Repair" after replacing the fuel injector assembly (for direct injection).
- Result:
Proceed to OK NG
OK
NG
- Result:
Proceed to OK NG
OK
NG
Remove the No. 1 integration relay from the No. 1 engine room relay block and junction block assembly.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1B-2 - E2-2 (+BD1) Always Below 1 Ω 1B-1 - E2-1 (+BD2) Always Below 1 Ω 1C-4 - N1-14 (IREL) Always Below 1 Ω 1B-6 - 1E-10 Always Below 1 Ω 1B-2 or E2-2 (+BD1) - Body ground and other terminals Always 10 kΩ or higher 1B-1 or E2-1 (+BD2) - Body ground and other terminals Always 10 kΩ or higher 1C-4 or N1-14 (IREL) - Body ground and other terminals Always 10 kΩ or higher 1B-6 or 1E-10 - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
