RM35X0E _54 Brake _078671 PARKING BRAKE _0381557 PARKING BRAKE CABLE(for Front Side) A

PARKING BRAKE  PARKING BRAKE CABLE(for Front Side)  INSTALLATION


PROCEDURE

Hide 46420A 1.INSTALL NO. 1 PARKING BRAKE CABLE CLAMP

a.

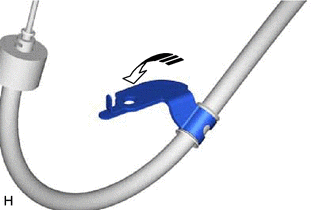

C413233

Install the No. 1 parking brake cable clamp in the direction indicated by the arrow shown in the illustration.


Hide 46410 2.CONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY

a.

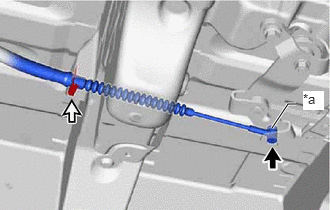

C414075C01
2.833,1.333 3,1.083 3,1.083 3.083,1.083 true 3.156,0.948 3.375,1.146 0.219,0.198 10 true *a
*a End of No. 1 Parking Brake Cable Assembly
V100135

MP grease
V100136

Clip


Apply MP grease to the circumference of the End of No. 1 parking brake cable assembly


b.

Connect the end of the No. 1 parking brake cable assembly to the parking brake intermediate lever assembly.


c.

Install the No. 1 parking brake cable assembly to the parking brake intermediate lever assembly with a new clip.


Hide 46410 3.INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

a.

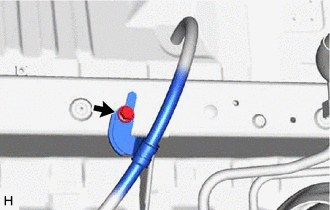

C413230

Install the No. 1 parking brake cable assembly to the vehicle body with the bolt.

Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)


Hide 4.INSTALL NO. 3 FLOOR HEAT INSULATOR

a.

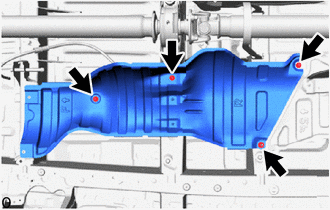

C412394

Install the No. 3 floor heat insulator with the 3 bolts and nut.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


Hide 5.INSTALL UPPER MAIN MUFFLER HEAT INSULATOR

a.

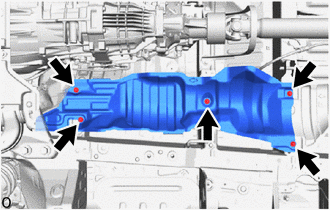

C412393

Install the upper main muffler heat insulator with the 5 bolts.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)
