METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM  B132187  Lost Communication with EMV Missing Message


DESCRIPTION

The combination meter assembly and radio and display receiver assembly communicate via local bus communication. This allows audio and visual system information to be displayed on the multi-information display. This DTC is stored when a communication error occurs between the radio and display receiver assembly and combination meter assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area
B132187 Lost Communication with EMV Missing Message Diagnosis Condition:
·

Turn the ignition switch to ON

·

IG power source voltage is 9.5 V or more


Malfunction Status:

No communication with radio and display receiver assembly


Malfunction Time:

3.0 seconds or more


·

Harness or connector

·

Radio and display receiver assembly

·

Combination meter assembly

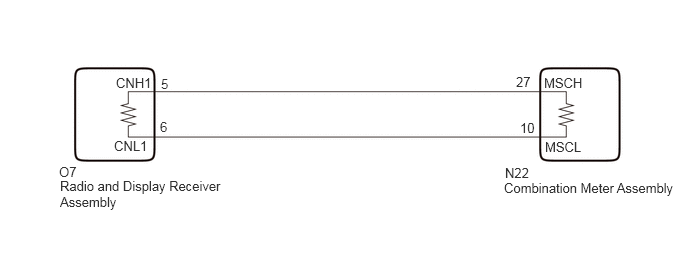

WIRING DIAGRAM

E384731E13
5.667,0.781 6.281,0.979 0.615,0.198 10 false MSCH 5.677,1.448 6.292,1.646 0.615,0.198 10 false MSCL 5.417,1.25 6.031,1.448 0.615,0.198 10 false 10 5.375,0.771 5.99,0.969 0.615,0.198 10 false 27 1.208,0.781 1.823,0.979 0.615,0.198 10 false CNH1 1.188,1.438 1.802,1.635 0.615,0.198 10 false CNL1 1.667,1.24 2.281,1.438 0.615,0.198 10 false 6 1.677,0.792 2.292,0.99 0.615,0.198 10 false 5 5.26,1.719 7.156,2.292 1.896,0.573 10 false N22 0.625,1.854 2.344,2.292 1.719,0.438 10 false Radio and Display Receiver Assembly 0.615,1.708 2.51,2.281 1.896,0.573 10 false O7 5.25,1.875 7.073,2.25 1.823,0.375 10 false Combination Meter Assembly

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:

-

A communication malfunction DTC may be stored.

-

The radio and display receiver assembly may not operate normally.




PROCEDURE

1.CHECK CAN MAIN WIRE (COMBINATION METER ASSEMBLY CAN MAIN WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the N22 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N22-27 (MSCH) - N22-10 (MSCL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
N22-27 (MSCH) - N8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
N22-10 (MSCL) - N8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
N22-27 (MSCH) - N8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
N22-10 (MSCL) - N8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.CHECK COMBINATION METER ASSEMBLY

NG

3.CHECK CAN MAIN WIRE (RADIO AND DISPLAY RECEIVER ASSEMBLY CAN MAIN WIRE)
2.CHECK COMBINATION METER ASSEMBLY
a.

Replace the combination meter assembly.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>DISASSEMBLY


b.

Clear the DTCs.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Clear DTCs
50002 409

c.

Make sure that the DTC detection conditions are met.

HINT:

If the detection conditions are not met, the system cannot detect the malfunction.



d.

Recheck for DTCs and check that no DTCs are output.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409
OK:

DTC B132187 is not output.



Result:
Proceed to
OK
NG



OK

END (COMBINATION METER ASSEMBLY WAS DEFECTIVE)

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


3.CHECK CAN MAIN WIRE (RADIO AND DISPLAY RECEIVER ASSEMBLY CAN MAIN WIRE)
a.

Reconnect the N22 combination meter assembly connector.


b.

Disconnect the O7 radio and display receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O7-5 (CNH1) - O7-6 (CNL1) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
O7-5 (CNH1) - N8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
O7-6 (CNL1) - N8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
O7-5 (CNH1) - N8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
O7-6 (CNL1) - N8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK COMBINATION METER ASSEMBLY

NG

REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR

4.CHECK COMBINATION METER ASSEMBLY
a.

Replace the combination meter assembly.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


b.

Clear the DTCs.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Clear DTCs
50002 409

c.

Make sure that the DTC detection conditions are met.

HINT:

If the detection conditions are not met, the system cannot detect the malfunction.



d.

Recheck for DTCs and check that no DTCs are output.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409
OK:

DTC B132187 is not output.



Result:
Proceed to
OK
NG



OK

END (COMBINATION METER ASSEMBLY WAS DEFECTIVE)

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
