DOOR / HATCH BACK DOOR DISASSEMBLY

CAUTION / NOTICE / HINT

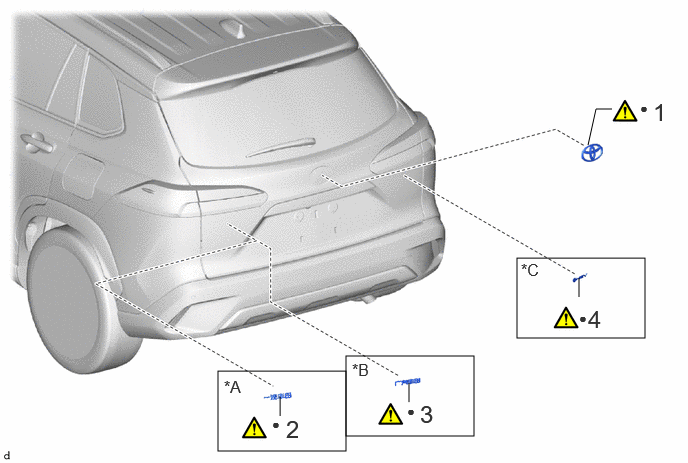

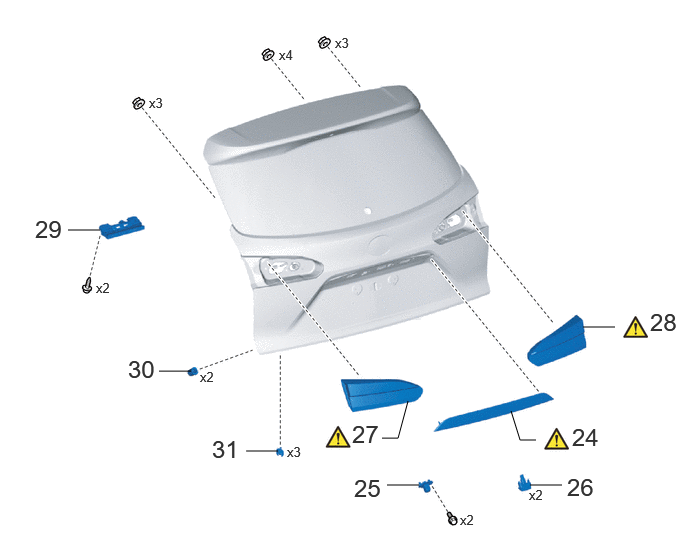

COMPONENTS (DISASSEMBLY)

3.604,3.708 4.938,4.542 1.333,0.833 2.271,3.865 3.604,4.698 1.333,0.833 5.385,2.688 6.719,3.521 1.333,0.833 4.26,3.99 4.26,4.188 false 2.917,4.135 2.917,4.333 false 6.125,1.51 6.208,1.135 6.208,1.135 6.375,1.135 false 6.031,2.896 6.031,3.094 false 4.375,4.167 4.729,4.469 0.354,0.302 18 false 3 6.802,1.021 7.156,1.323 0.354,0.302 18 false 1 2.979,4.323 3.333,4.625 0.354,0.302 18 false 2 3.667,3.75 4.021,4.052 0.354,0.302 12 false *B 6.667,1.042 6.813,1.25 0.146,0.208 10 false ● 4.24,4.198 4.385,4.406 0.146,0.208 10 false ● 2.833,4.333 2.979,4.542 0.146,0.208 10 false ● 2.333,3.927 2.688,4.229 0.354,0.302 12 false *A 6.031,3.229 6.177,3.438 0.146,0.208 10 false ● 6.125,3.177 6.479,3.479 0.354,0.302 18 false 4 5.427,2.708 5.781,3.01 0.354,0.302 12 false *C

Procedure		Part Name Code
1	SYMBOL EMBLEM	75741E	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0289,)	-	-
2	NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE	74551A	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0314,)	-	-
3	NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE	74551A	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0313,)	-	-
4	NO. 3 LUGGAGE COMPARTMENT DOOR PLATE	75443A	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0319,)	-	-

*A	for FTMC Made	*B	for GTMC Made
*C	for HEV Model	-	-
●	Non-reusable part	-	-

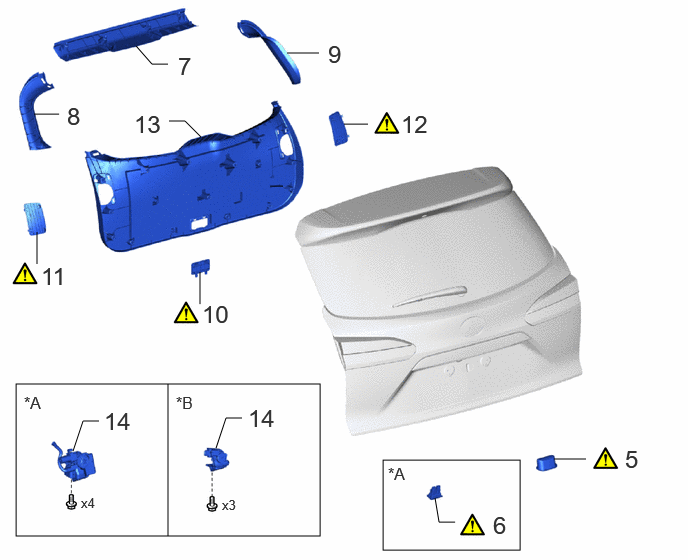

0.167,4 3.333,5.583 3.167,1.583 3.99,4.792 5.417,5.729 1.427,0.938 2.99,0.552 3.323,0.552 false 5.771,4.781 6.104,4.781 false 0.385,2.417 0.385,2.75 false 2.25,4.667 2.354,4.354 2.354,4.354 2.521,4.354 false 0.354,1.188 0.615,1.188 false 3.583,1.292 3.833,1.292 false 2.813,1.938 2.948,1.938 false 1.417,0.479 1.583,0.667 1.583,0.667 1.75,0.667 false 1.76,1.26 1.927,1.26 1.927,1.26 2.094,1.427 false 2.083,2.833 2.083,3.167 false 1.75,5.583 1.75,4 false 0.76,4.698 0.865,4.385 0.865,4.385 1.031,4.385 false 4.531,5.188 4.573,5.438 4.573,5.438 4.74,5.438 false 3.417,0.417 3.865,0.854 0.448,0.438 18 false 9 5.135,5.323 5.49,5.708 0.354,0.385 18 false 6 4.177,1.146 4.677,1.5 0.5,0.354 18 false 12 0.427,2.729 0.906,3.094 0.479,0.365 18 false 11 6.51,4.635 6.802,5.073 0.292,0.438 18 false 5 0.698,1.063 1.167,1.313 0.469,0.25 18 false 8 1.396,1.146 1.917,1.521 0.521,0.375 18 false 13 1.854,0.542 2.302,0.979 0.448,0.438 18 false 7 2.104,3.125 2.542,3.458 0.438,0.333 18 false 10 0.844,5.156 1.115,5.365 0.271,0.208 10 false x4 2.313,5.177 2.583,5.385 0.271,0.208 10 false x3 1.083,4.24 1.583,4.573 0.5,0.333 18 false 14 2.583,4.208 3.083,4.542 0.5,0.333 18 false 14 0.25,4.094 0.625,4.333 0.375,0.24 12 false *A 1.833,4.094 2.208,4.333 0.375,0.24 12 false *B 4.042,4.833 4.417,5.073 0.375,0.24 12 false *A

Procedure		Part Name Code
5	DOOR PULL HANDLE	74811B	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0295,)	-	-
6	BACK DOOR INSIDE HANDLE BASE ASSEMBLY	69290G	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0310,)	-	-
7	BACK DOOR TRIM UPPER PANEL ASSEMBLY	64790B	-	-	-
8	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
9	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
10	NO. 3 BACK DOOR SERVICE HOLE COVER	-	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0269,)	-	-
11	BACK DOOR SERVICE HOLE COVER LH	-	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0268,)	-	-
12	BACK DOOR SERVICE HOLE COVER RH	-	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0267,)	-	-
13	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-
14	BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY	69350P	-	-	-

w/ Power Back Door

w/o Power Back Door

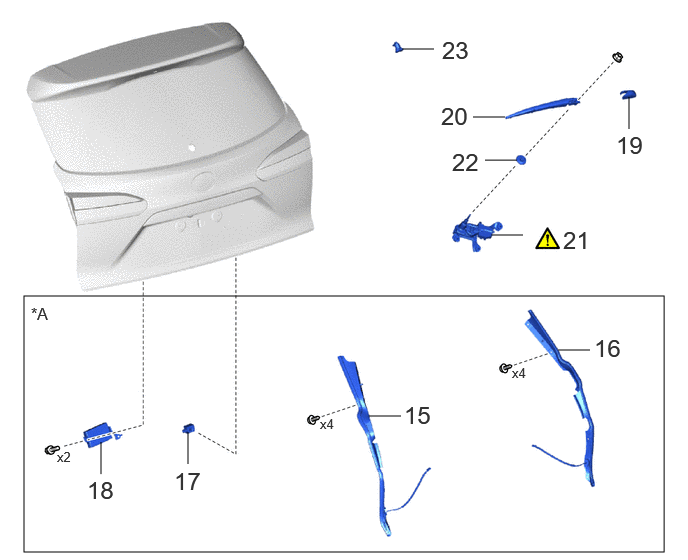

0.25,3.083 6.917,5.75 6.667,2.667 4.521,0.51 4.188,0.51 false 5.385,1.667 5.052,1.667 false 5.26,1.219 4.927,1.219 false 5.448,2.448 5.115,2.448 false 6.552,1.01 6.552,1.344 false 1.052,4.604 1.052,4.938 false 1.958,4.5 1.958,4.833 false 6.146,3.646 5.813,3.646 false 4.177,4.333 3.844,4.333 false 0.323,3.167 0.698,3.406 0.375,0.24 12 false *A 4.208,4.177 4.74,4.51 0.531,0.333 18 false 15 6.188,3.479 6.719,3.813 0.531,0.333 18 false 16 1.813,4.865 2.344,5.198 0.531,0.333 18 false 17 0.906,4.958 1.438,5.292 0.531,0.333 18 false 18 6.417,1.365 6.948,1.698 0.531,0.333 18 false 19 4.594,1.063 5.125,1.396 0.531,0.333 18 false 20 5.865,2.354 6.396,2.688 0.531,0.333 18 false 21 4.708,1.542 5.24,1.875 0.531,0.333 18 false 22 4.604,0.375 5.135,0.708 0.531,0.333 18 false 23 0.594,4.677 0.906,4.875 0.313,0.198 10 false x2 3.333,4.333 3.646,4.531 0.313,0.198 10 false x4 5.333,3.802 5.646,4 0.313,0.198 10 false x4

Procedure		Part Name Code
15	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
16	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-
17	POWER BACK DOOR WARNING BUZZER	89747E	-	-	-
18	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
19	REAR WIPER ARM HEAD CAP	85292A	-	-	-
20	REAR WIPER ARM AND BLADE ASSEMBLY	-	-	-	-
21	REAR WIPER MOTOR ASSEMBLY	85110R	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0284,)	-	-
22	REAR WIPER MOTOR GROMMET	85143R	-	-	-
23	REAR WASHER NOZZLE	85345R	-	-	-

w/ Power Back Door

3.979,4.563 4.146,4.563 4.146,4.563 4.25,4.177 false 0.708,2.396 1.042,2.396 false 1.656,3.865 1.99,3.865 false 6.073,3.406 6.406,3.406 false 5.323,4.281 5.417,4.583 5.417,4.583 5.583,4.583 false 5.521,5.052 5.854,5.052 false 4.031,5.052 4.365,5.052 false 2.563,4.698 2.896,4.698 false 3.688,4.938 4.063,5.292 0.375,0.354 18 false 25 5.906,4.927 6.281,5.281 0.375,0.354 18 false 26 5.958,4.406 6.375,4.74 0.417,0.333 18 false 24 6.771,3.208 7.094,3.469 0.323,0.26 18 false 28 2.208,4.531 2.625,4.865 0.417,0.333 18 false 31 0.365,2.24 0.781,2.573 0.417,0.333 18 false 29 1.333,3.698 1.75,4.031 0.417,0.333 18 false 30 3.667,4.375 4.083,4.708 0.417,0.333 18 false 27 3.49,0.365 3.906,0.698 0.417,0.333 10 false x3 1.552,0.99 1.969,1.323 0.417,0.333 10 false x3 1,2.917 1.417,3.25 0.417,0.333 10 false x2 4.792,5.333 5.208,5.667 0.417,0.333 10 false x2 2.99,4.625 3.406,4.958 0.417,0.333 10 false x3 2.083,3.844 2.5,4.177 0.417,0.333 10 false x2 5.51,5.073 5.927,5.406 0.417,0.333 10 false x2 2.906,0.49 3.323,0.823 0.417,0.333 10 false x4

Procedure		Part Name Code
24	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0286,)	-	-
25	TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
26	LICENSE PLATE LIGHT ASSEMBLY	81270	-	-	-
27	REAR LIGHT ASSEMBLY LH	81590A	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0280,)	-	-
28	REAR LIGHT ASSEMBLY RH	81580D	(202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0315,)	-	-
29	CENTER STOP LIGHT SET	81006	-	-	-
30	BACK DOOR PANEL CUSHION	67005B	-	-	-
31	BACK DOOR DUST PROOF SEAL	67837N	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the back door disassembly/reassembly are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Rear television camera assembly	· Parking assist monitor system initialization · Rear television camera assembly optical axis (Back camera position setting)	Panoramic view monitor system	(202201,999999,_56,_111969,_0587004,RM1000000029RN8,)
Multiplex network door ECU	Initialize power back door system	Power Back Door System	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)

PROCEDURE

Hide Display 75741E 1.REMOVE SYMBOL EMBLEM

Click here(

202405,999999,_59,_114126,_0505944,RM100000002MPWU_02_0072,)

Hide Display 75441A 2.REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLAT (for FTMC Made)

Click here(

202405,999999,_59,_114126,_0505944,RM100000002MPWU_02_0071,)

Hide Display 75441A 3.REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE (for GTMC Made)

Click here(

202405,999999,_59,_114126,_0505944,RM100000002MPWU_02_0073,)

Hide Display 75443A 4.REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR PLATE (for HEV Model)

Click here(

202405,999999,_59,_114126,_0505944,RM100000002MPWU_02_0077,)

Hide Display 74811B 5.REMOVE DOOR PULL HANDLE

0.406,0.063 0.688,0.417 0.281,0.354 18 false i

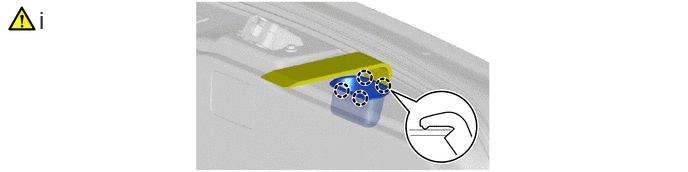

Using a moulding remover D, disengage the claws to remove the door pull handle.

Hide Display 69290G 6.REMOVE BACK DOOR INSIDE HANDLE BASE ASSEMBLY (w/ Power Back Door)

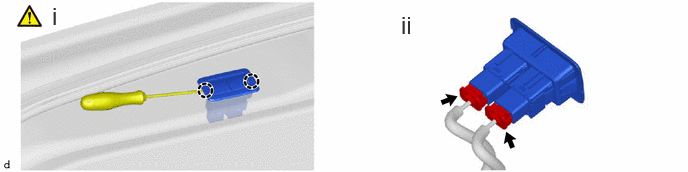

0.542,0.021 0.823,0.375 0.281,0.354 18 false i 4.177,0.115 4.458,0.469 0.281,0.354 18 false ii

Using a screw driver with its tip wrapped in protective tape, disengage the claws.

ii.

Disconnect the 2 connectors to remove the back door inside handle base assembly.

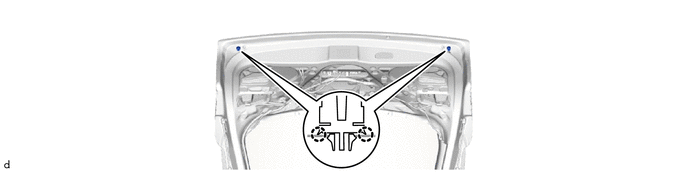

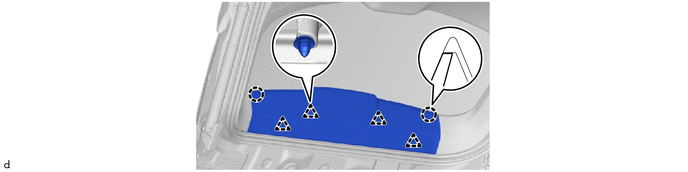

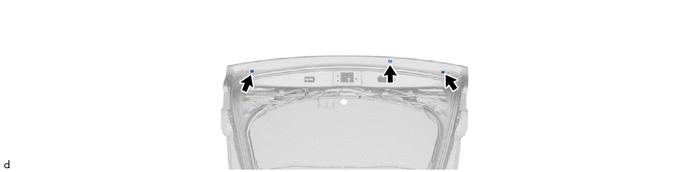

Hide Display 64790B 7.REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

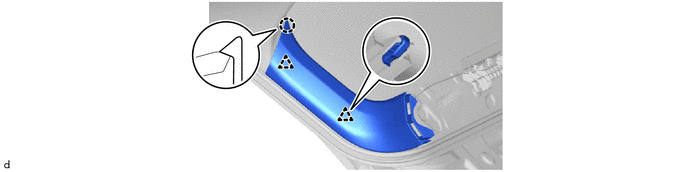

Hide Display 67938A 8.REMOVE BACK DOOR SIDE GARNISH LH

Hide Display 67937B 9.REMOVE BACK DOOR SIDE GARNISH RH

Use the same procedure as for the LH side.

Hide Display 10.REMOVE NO. 3 BACK DOOR SERVICE HOLE COVER

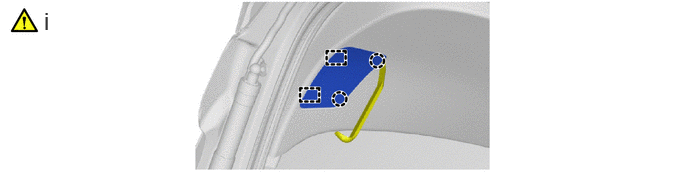

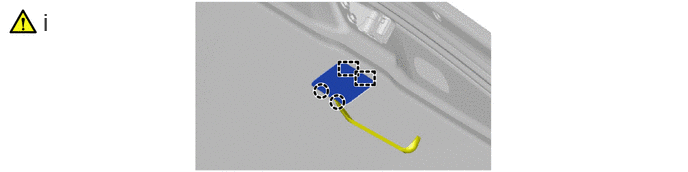

0.448,0.083 0.854,0.406 0.406,0.323 18 false i

Using a moulding remover A, disengage the claws and guides to remove the No. 3 back door service hole cover.

Hide Display 11.REMOVE BACK DOOR SERVICE HOLE COVER LH

0.458,0.073 0.958,0.375 0.5,0.302 18 false i

Using a moulding remover A, disengage the claws and guides to remove the back door service hole cover LH.

Hide Display 12.REMOVE BACK DOOR SERVICE HOLE COVER RH

Use the same procedure as for the LH side.

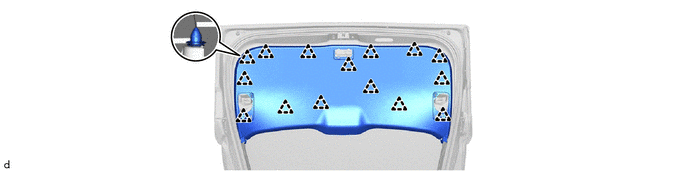

Hide Display 64780A 13.REMOVE BACK DOOR TRIM PANEL ASSEMBLY

Hide Display 69350P 14.REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>BACK DOOR LOCK>REMOVAL202307,999999,_58,_115226,_0510793,RM100000002CO93_02_0077,

Hide Display 84280D 15.REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR TOUCH SENSOR>REMOVAL202307,999999,_59,_113746,_0510843,RM100000002CP46_02_0076,

Hide Display 84270G 16.REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

Use the same procedure as for the LH side.

Hide Display 89747E 17.REMOVE POWER BACK DOOR WARNING BUZZER (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR WARNING BUZZER>REMOVAL202307,999999,_59,_113746,_0510846,RM100000002COE8_01_0007,

Hide Display 89222A 18.REMOVE MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR CLOSER ECU>REMOVAL202307,999999,_59,_113746,_0510845,RM100000002COE5_02_0075,

Hide Display 85292A 19.REMOVE REAR WIPER ARM HEAD CAP

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202201,999999,_59,_114146,_0505961,RM100000001ZPJ3_01_0024,

Hide Display 20.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202201,999999,_59,_114146,_0505961,RM100000001ZPJ3_01_0002,

Hide Display 85110R 21.REMOVE REAR WIPER MOTOR ASSEMBLY

Click here(

202201,999999,_59,_114146,_0505961,RM100000001ZPJ3_01_0004,)

Hide Display 85143R 22.REMOVE REAR WIPER MOTOR GROMMET

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202201,999999,_59,_114146,_0505961,RM100000001ZPJ3_01_0003,

Hide Display 85345R 23.REMOVE REAR WASHER NOZZLE

Click hereVehicle Exterior>WIPER / WASHER>WASHER NOZZLE (for Rear Side)>REMOVAL202201,999999,_59,_114146,_0505967,RM100000001ZPJM_01_0013,

Hide Display 24.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here(

202201,999999,_59,_114126,_0505940,RM100000001ZPG7_01_0118,)

Hide Display 86790D 25.REMOVE TELEVISION CAMERA ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>REMOVAL202307,999999,_56,_111969,_0499997,RM100000002CTGH_01_0030,

Hide Display 81270 26.REMOVE LICENSE PLATE LIGHT ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>LICENSE PLATE LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501108,RM100000001Z4XM_03_0019,

Hide Display 81590A 27.REMOVE REAR LIGHT ASSEMBLY LH

Click here(

202201,999999,_59,_112294,_0501105,RM100000001Z4XB_01_0072,)

Hide Display 81580D 28.REMOVE REAR LIGHT ASSEMBLY RH

Use the same procedure as for the LH side.

Hide Display 81006 29.REMOVE CENTER STOP LIGHT SET

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501110,RM100000001Z4XQ_01_0027,

Hide Display 67005B 30.REMOVE BACK DOOR PANEL CUSHION

Hide Display 67837N 31.REMOVE BACK DOOR DUST PROOF SEAL
