WINDOW / GLASS POWER WINDOW REGULATOR MOTOR(for Front Door) REMOVAL

CAUTION / NOTICE / HINT

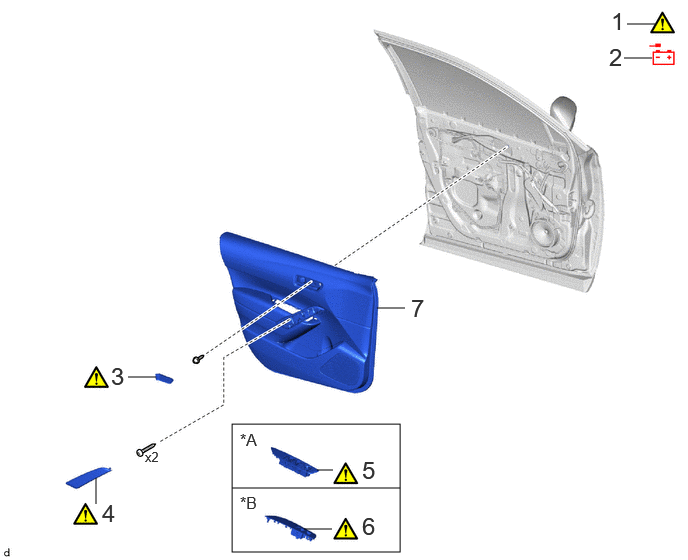

COMPONENTS (REMOVAL)

2.417,4.417 4.167,5.75 1.75,1.333 6.531,0.25 6.823,0.25 false 6.5,0.604 6.792,0.604 false 3.927,3.208 4.219,3.208 false 3.302,4.896 3.469,4.896 false 1.333,3.927 1.625,3.927 false 1,5.25 1,4.979 false 2.417,5.083 4.167,5.083 false 3.167,5.51 3.458,5.51 false 6.365,0.073 6.646,0.427 0.281,0.354 18 false 1 6.344,0.448 6.625,0.802 0.281,0.354 18 false 2 4.281,3.063 4.563,3.417 0.281,0.354 18 false 7 3.771,4.75 4.052,5.104 0.281,0.354 18 false 5 3.771,5.333 4.052,5.688 0.281,0.354 18 false 6 1.156,3.771 1.438,4.125 0.281,0.354 18 false 3 1.063,5.198 1.344,5.552 0.281,0.354 18 false 4 2.5,4.479 2.781,4.833 0.281,0.354 12 false *A 2.5,5.135 2.781,5.49 0.281,0.354 12 false *B 1.51,4.677 1.823,4.875 0.313,0.198 10 false x2

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0203,)	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284F	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0212,)	-	-
4	DOOR ASSIST GRIP COVER	74646	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0211,)	-	-
5	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0213,)	-	-
6	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0214,)	-	-
7	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-

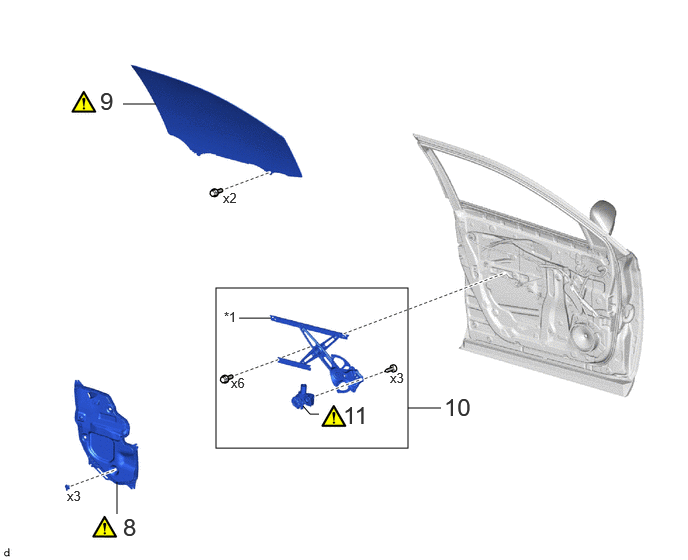

for Driver Side

for Front Passenger Side

2.25,3 4.25,4.667 2,1.667 1.281,1.083 1.625,1.083 false 3.156,4.229 3.229,4.313 3.229,4.313 3.323,4.313 false 1.219,5.021 1.219,5.354 false 4.25,4.25 4.594,4.25 false 2.49,3.313 2.823,3.313 false 1.042,0.906 1.469,1.229 0.427,0.323 18 false 9 2.323,1.979 2.583,2.177 0.26,0.198 10 false x2 1.281,5.344 1.708,5.667 0.427,0.323 18 false 8 0.698,5.083 0.958,5.281 0.26,0.198 10 false x3 2.406,3.906 2.667,4.104 0.26,0.198 10 false x6 4.063,3.854 4.323,4.052 0.26,0.198 10 false x3 3.573,4.177 4,4.5 0.427,0.323 18 false 11 4.625,4.094 5.052,4.417 0.427,0.323 18 false 10 2.333,3.219 2.646,3.417 0.313,0.198 10 false *1

Procedure		Part Name Code
8	FRONT DOOR SERVICE HOLE COVER	67832	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0217,)	-	-
9	FRONT DOOR GLASS SUB-ASSEMBLY	68102	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0210,)	-	-
10	FRONT DOOR WINDOW REGULATOR ASSEMBLY	-	-	-	-
11	POWER WINDOW REGULATOR MOTOR ASSEMBLY	85720D	(202307,999999,_59,_115107,_0510340,RM100000002CWM4_01_0195,)	-	-

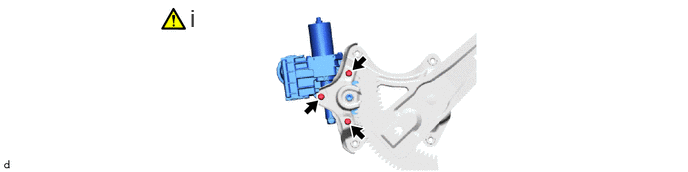

FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during power window regulator motor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Power window regulator motor assembly	Initialize power window control system	· Auto up and down function · Jam protection function · Remote control function · Key-linked function · Wireless transmitter-linked function · Key-off operation function · Catch protection function · Window open warning function	(202201,999999,_59,_115107,_0583893,RM1000000029E10,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the RH side and LH side.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click here(202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for Gasoline Model:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for HEV Model:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

Hide Display 69284F 3.REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
