SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B009E00  Right Side Restraints Sensor 5 Signal Plausibility Failure (Detection for Sensor)


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B009E00 Right Side Restraints Sensor 5 Signal Plausibility Failure (Detection for Sensor) Either condition is met:
·

Side airbag pressure sensor RH malfunction

·

Airbag ECU assembly malfunction


·

Side airbag pressure sensor RH

·

Airbag ECU assembly


Comes on Not applicable

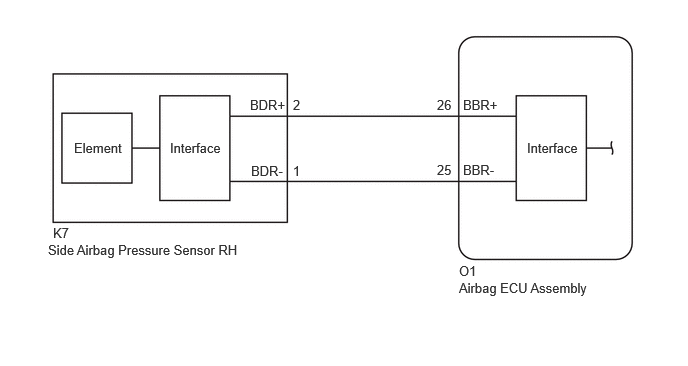

WIRING DIAGRAM

C465715E06
4.781,2.917 6.5,3.333 1.719,0.417 10 false Airbag ECU Assembly 4.781,2.74 5.417,2.917 0.635,0.177 10 false O1 4.823,1.01 5.938,1.438 1.115,0.427 10 false BBR+ 5.49,1.458 6.052,1.885 0.563,0.427 10 false Interface 4.552,1.01 4.75,1.25 0.198,0.24 10 false 26 4.823,1.688 5.938,2.115 1.115,0.427 10 false BBR- 4.552,1.688 4.75,2.083 0.198,0.396 10 false 25 2.604,1.01 3.719,1.438 1.115,0.427 10 false BDR+ 2.615,1.698 3.729,2.125 1.115,0.427 10 false BDR- 3.052,1.01 4.167,1.438 1.115,0.427 10 false 2 3.052,1.698 4.167,2.125 1.115,0.427 10 false 1 1.771,1.458 2.354,1.938 0.583,0.479 10 false Interface 0.771,1.458 1.354,1.854 0.583,0.396 10 false Element 0.552,2.344 1.25,2.542 0.698,0.198 10 false K7 0.5,2.521 3.302,2.906 2.802,0.385 10 false Side Airbag Pressure Sensor RH

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag ECU assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



PROCEDURE

1.CHECK SIDE AIRBAG PRESSURE SENSOR RH
a.
C238218C22
0.802,1.156 1.438,1.75 0.635,0.594 10 false *1 2.302,0.885 2.594,1.208 0.292,0.323 10 false *2 1.719,1.167 2.021,1.604 0.302,0.438 10 false B 1.875,1.167 2.271,1.625 0.396,0.458 10 false A 1.271,1.167 1.552,1.583 0.281,0.417 10 false C 1.115,1.167 1.594,1.729 0.479,0.563 10 false D
*1 Side Airbag Pressure Sensor LH
*2 Airbag ECU Assembly


Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



c.

Interchange the side airbag pressure sensor RH with LH and connect the connectors.


d.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


e.

Turn the ignition switch to ON, and wait for at least 60 seconds.


f.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444

Result:
Proceed to
NEXT



NEXT

2.CHECK SIDE AIRBAG PRESSURE SENSOR RH
2.CHECK SIDE AIRBAG PRESSURE SENSOR RH
a.

Turn the ignition switch off.


b.

Turn the ignition switch to ON, and wait for at least 60 seconds.


c.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444

Result:
Result Proceed to
B009E00 is output A
B009B00 is output B


HINT:

Codes other than DTCs B009E00 and B009B00 may be output at this time, but they are not related to this check.


d.

Turn the ignition switch off.


e.

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



f.

Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors.



A

REPLACE AIRBAG ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


B

REPLACE SIDE AIRBAG PRESSURE SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Front Door)>REMOVAL
