SUPPLEMENTAL RESTRAINT SYSTEMS SIDE AIRBAG SENSOR(for Front Door) REMOVAL

CAUTION / NOTICE / HINT

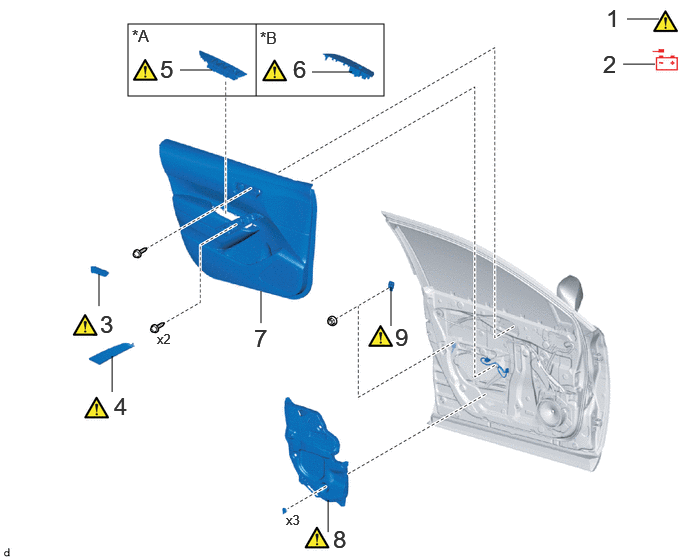

COMPONENTS (REMOVAL)

1.333,0.25 4,1 2.667,0.75 1.031,3.188 1.031,2.854 false 1.875,0.729 2.208,0.729 false 3.25,0.75 3.667,0.75 false 4.073,3.396 4.073,2.99 false 2.719,3.365 2.719,3.031 false 6.531,0.198 6.865,0.198 false 6.49,0.667 6.823,0.667 false 1.167,3.708 1.167,4.083 false 3.417,5.208 3.417,5.542 false 2.667,0.25 2.667,1 false 6.313,0.042 6.594,0.396 0.281,0.354 18 false 1 6.281,0.521 6.563,0.875 0.281,0.354 18 false 2 1.375,0.271 1.75,0.51 0.375,0.24 12 false *A 2.708,0.292 3.083,0.531 0.375,0.24 12 false *B 3.052,0.573 3.333,0.927 0.281,0.354 18 false 6 1.667,0.573 1.948,0.927 0.281,0.354 18 false 5 1.042,3.229 1.323,3.583 0.281,0.354 18 false 3 1.188,4.083 1.469,4.438 0.281,0.354 18 false 4 2.646,3.375 2.927,3.729 0.281,0.354 18 false 7 4.115,3.365 4.396,3.719 0.281,0.354 18 false 9 3.469,5.469 3.75,5.823 0.281,0.354 18 false 8 1.635,3.448 1.948,3.646 0.313,0.198 10 false x2 2.979,5.333 3.292,5.531 0.313,0.198 10 false x3

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_115188,_0510632,RM100000002BZXO_01_0141,)	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284F	(202307,999999,_58,_115188,_0510632,RM100000002BZXO_01_0135,)	-	-
4	DOOR ASSIST GRIP COVER	74646	(202307,999999,_58,_115188,_0510632,RM100000002BZXO_01_0136,)	-	-
5	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_58,_115188,_0510632,RM100000002BZXO_01_0137,)	-	-
6	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_58,_115188,_0510632,RM100000002BZXO_01_0146,)	-	-
7	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-
8	FRONT DOOR SERVICE HOLE COVER	67832	(202307,999999,_58,_115188,_0510632,RM100000002BZXO_01_0140,)	-	-
9	SIDE AIRBAG PRESSURE SENSOR	8983AA	(202307,999999,_58,_115188,_0510632,RM100000002BZXO_01_0002,)	-	-

for Driver Side

for Front Passenger Side

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the horn button assembly removal/installation are shown below.

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click here(202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,)

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.; Click here(202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

Hide Display 69284F 3.REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0232,)

Hide Display 74646 4.REMOVE DOOR ASSIST GRIP COVER

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0231,)

Hide Display 5.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0062,)

Hide Display 6.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0106,)

Hide Display 67602 7.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0005,

Hide Display 67832 8.REMOVE FRONT DOOR SERVICE HOLE COVER

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0010,)

Hide Display 8983AA 9.REMOVE SIDE AIRBAG PRESSURE SENSOR

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

2.094,0.979 2.24,1.292 0.146,0.313 18 true i 1.833,0.104 2.042,0.417 0.208,0.313 18 true ii 4.438,0.042 4.719,0.396 0.281,0.354 18 false iii

Remove the nut.

NOTICE:: Do not reuse the nut.

ii.

Disengage the claw to pull out the side airbag pressure sensor.

NOTICE:: If the side airbag pressure sensor has been dropped, replace it with a new one.

iii.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,
