PARK ASSIST / MONITORING TELEVISION CAMERA(for Rear) REMOVAL
CAUTION / NOTICE / HINT

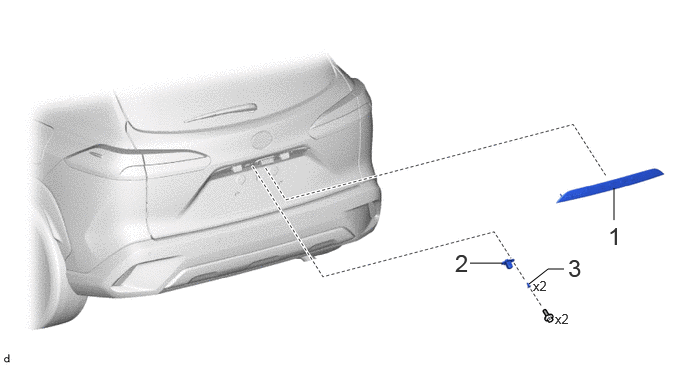

COMPONENTS (REMOVAL)
6.396,2.292 6.396,1.958
false
4.896,2.74 5.229,2.74
false
5.51,2.958 5.708,2.802
5.708,2.802 5.875,2.802
false
6.333,2.313 6.615,2.667
0.281,0.354
18
false
1
4.74,2.594 5.021,2.948
0.281,0.354
18
false
2
5.917,2.646 6.198,3
0.281,0.354
18
false
3
5.552,2.896 5.865,3.094
0.313,0.198
10
false
x2
5.781,3.24 6.094,3.438
0.313,0.198
10
false
x2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY | - | - | - | - |
| 2 | TELEVISION CAMERA ASSEMBLY | 86790D | - | - | - |
| 3 | SCREW GROMMET | - | - | - | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during television camera assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: w/ Parking Assist Monitor System |
|||
| Rear television camera assembly | Television camera view adjustment
|
Panoramic view monitor system | ( 202201,999999,_56,_111969,_0587004,RM1000000029RN8,)
|
| Rear television camera view adjustment | |||
·
Parking assist monitor system initialization*1 ·
Rear television camera assembly optical axis (Back camera position setting)*1 |
Parking Assist Monitor System | (202201,202405,_56,_111969,_0586612,RM1000000029POL,202405,999999,_56,_111969,_0586612,RM100000002O3QP,)
|
|
PROCEDURE
1.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
86790D

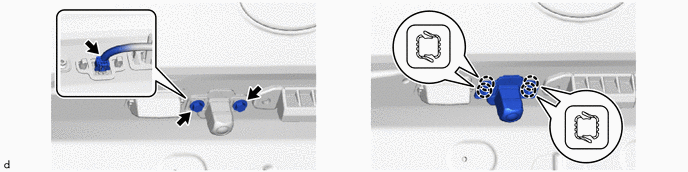

2.REMOVE TELEVISION CAMERA ASSEMBLY
a.
3.REMOVE SCREW GROMMET
a.
